Pressure Regulator Valve

In oil pump body, nonadjustable.

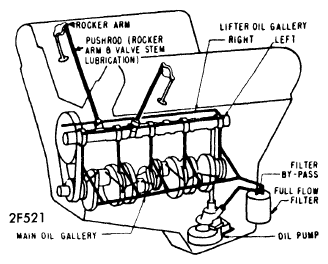

Fig 1: Engine Oiling System
G09324201Courtesy of GENERAL MOTORS COMPANY
