Windshield Wipers - 1 & 2-Speed Electric -- Square Motor
>>
Testing & Trouble Shooting
>>
2-Speed Wiper (Off Car)
>>
Notes
2-Speed Wiper (Off Car): Notes
NOTE:
Use ammeter with reading of 30 amperes (minimum) in feed wire circuit.

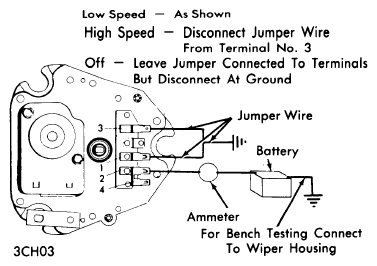

Fig 1: 2-SPEED WIPER TEST CONNECTIONS
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
