Engine Oil Temperature Sensor Replacement (AWD)

WARNING: This page is about a different variant/trim than selected.

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Air Cleaner Outlet Intermediate Duct Replacement Turbocharger Outlet Duct Connector Replacement

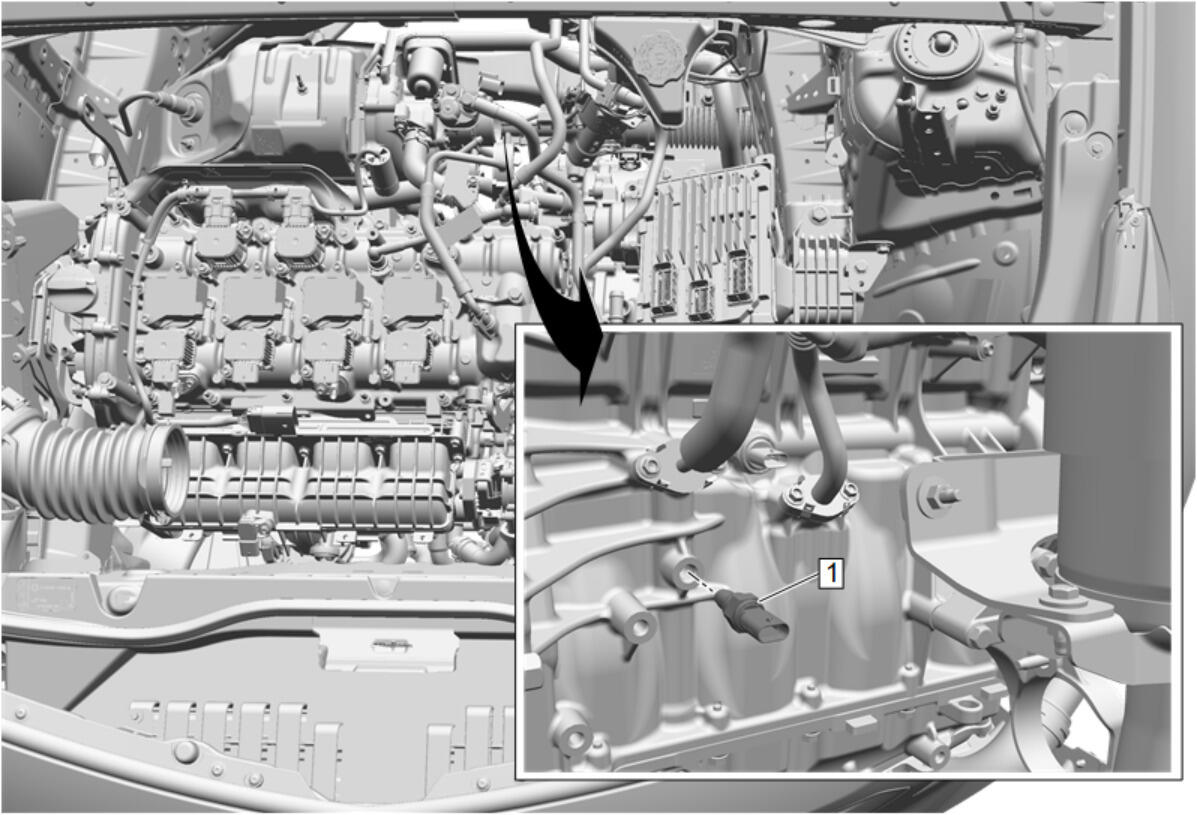

1	Engine Oil Temperature Sensor CAUTION: Refer to Component Fastener Tightening Caution . Procedure Disconnect the engine oil temperature sensor electrical wiring harness connector. Tighten 20 N.m (15 lb ft)

Callout

Component Name

Preliminary Procedures

Engine Oil Temperature Sensor

CAUTION:

Procedure
Disconnect the engine oil temperature sensor electrical wiring harness connector.
Tighten
20 N.m (15 lb ft)
