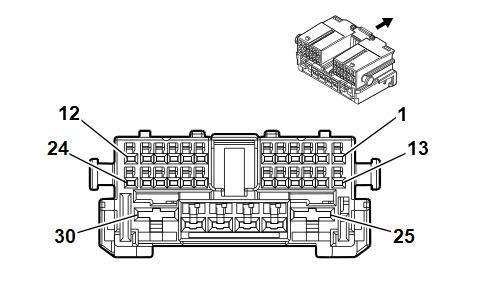

X900 Liftgate Harness to Body Harness
Connector Part Information
|
Connector Part Information
|
Terminal Part Information
| Terminal Type ID | Terminated Lead | Diagnostic Test Probe | Terminal Removal Tool |
|---|---|---|---|
| I | Not Required | J-35616-16 (LT GN) | No Tool Required |
| II | Not Required | J-35616-42 (RD) | No Tool Required |
| III | Not Required | J-35616-4A (PU) | No Tool Required |
| IV | 13575824 | J-35616-5 (PU) | J-38125-11A |
| V | 13578908 | J-35616-5 (PU) | J-38125-11A |
| VI | 19301536 | J-35616-43 (RD) | J-38125-11A |
| VII | 84616651 | J-35616-17 (LT GN) | J-38125-215A |
| VIII | 84726946 | J-35616-17 (LT GN) | J-38125-36 |
| Pin | Size | Color | Circuit | Terminal Type ID | Option | Function | Pin | Size | Color | Circuit | Terminal Type ID | Option |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | 0.75 | RD/YE | 3040 | I | - | Secondary Fused Battery Positive Voltage 30 | 1 | 1 | RD/YE | 3040 | VIII | - |
| 2 | 0.75 | BU | 393 | I | - | Rear Window Wiper Motor Control | 2 | 0.75 | BU | 393 | VII | - |
| 3 - 9 | - | - | - | - | - | Not Occupied | 3 - 9 | - | - | - | - | - |
| 10 | 0.75 | BU/BK | 6000 | I | - | Liftgate Ajar Switch Signal 2 | 10 | 0.75 | BU/BK | 6000 | VII | - |
| 11 | 0.35 | YE | 3988 | I | - | Detent Liftgate Signal | 11 | 0.35 | YE | 3988 | VII | - |
| 12 | 1 | BN | 5790 | I | - | Liftgate Latch Cinch Motor Open Control | 12 | 1 | BN | 5790 | VIII | - |
| 13 | 1 | BU/GY | 5791 | I | - | Liftgate Latch Cinch Motor Close Control | 13 | 1 | BU/GY | 5791 | VIII | - |
| 14 | 0.35 | VT/GN | 3987 | I | - | Liftgate Latch Cinch Signal | 14 | 0.35 | VT/GN | 3987 | VII | - |
| 15 | 0.35 | WH/GN | 9006 | I | - | - | 15 | 0.35 | WH/GN | 9006 | VII | - |
| 16 | 0.5 | GN/YE | 6846 | I | - | Rear License Plate Lamp Control Rear License Plate Lamp Control |
16 | 0.5 | GN/YE | 6846 | VII | - |
| 17 | 0.75 | GY | 3986 | I | - | Liftgate Latch Cinch Motor Open Control | 17 | 0.75 | GY | 3986 | VII | - |
| 18 | - | - | - | - | - | Not Occupied | 18 | - | - | - | - | - |
| 19 | 0.5 | VT/WH | 5065 | I | - | Stop Lamp Relay Coil Control | 19 | 0.35 | VT/WH | 5065 | VII | - |
| 20 | 0.35 | GY/BK | 6113 | I | - | Exterior Liftgate Control Switch Signal | 20 | 0.35 | GY/BK | 6113 | VII | - |
| 21 | 0.5 | GY/WH | 3034 | I | - | Liftgate Close Switch LED Control Liftgate Close Switch LED Control |
21 | 0.5 | GY/WH | 3034 | VII | - |
| 22 | 0.5 | GN | 3033 | I | - | Liftgate Close Switch Signal Liftgate Close Switch Signal |
22 | 0.5 | GN | 3033 | VII | - |
| 23 | 0.5 | BK/VT | 5801 | I | - | Liftgate Object Sensor Low Reference Liftgate Object Sensor Low Reference |
23 | 0.5 | BK/VT | 5801 | VII | - |
| 24 | 0.5 | WH/BK | 6126 | I | - | Liftgate Object Sensor 2 Signal Liftgate Object Sensor 2 Signal |
24 | 0.5 | WH/BK | 6126 | VII | - |
| 25 | 3 | BN/VT | 293 | II | - | Rear Defogger Grid Control | 25 | 2.5 | BN/VT | 293 | VI | - |
| 26 | 0.5 | GN/WH | 24 | III | - | Backup Lamp Control | 26 | 0.5 | GN/WH | 24 | IV | - |
| 27 | - | - | - | - | - | Not Occupied | 27 | - | - | - | - | - |
| 28 | 3 | BK | 1350 | III | - | Ground 13 | 28 | 3 | BK | 1350 | V | - |
| 29 | 0.5 | GN/GY | 737 | III | - | Rear Compartment Courtesy Lamp Control | 29 | 0.5 | GN/GY | 737 | IV | - |
| 30 | - | - | - | - | - | Not Occupied | 30 | - | - | - | - | - |
