X511 Left Front Door Harness to Left Side View Camera Harness
|
|
|

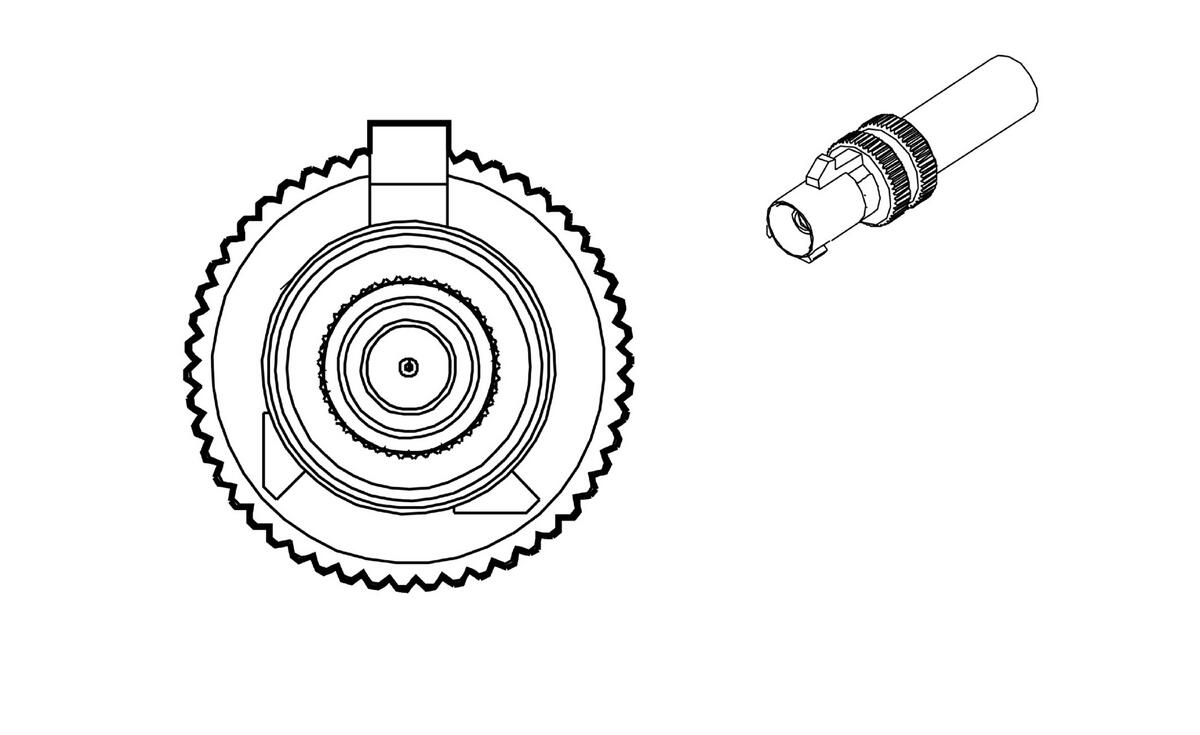

Connector Part Information
- Harness Type: Left Front Door COAX
- OEM Connector: 1-2289730-1
- Service Connector: Service by Cable Assembly - See Part Catalog
- Description: 1-Way F Coax Type (RD)
|
Connector Part Information
- Harness Type: Left Side View Camera COAX
- OEM Connector: Not Available
- Service Connector: Service by Cable Assembly - See Part Catalog
- Description: 1-Way M
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not Required |
No Tool Required |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
Function |
Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
| - |
- |
Coax |
- |
I |
- |
Left Side Vision Camera Coaxial Video Signal |
- |
- |
Coax |
- |
I |
- |
