X403 3rd Row Rear Seat Harness to Body Harness
 Courtesy of GENERAL MOTORS COMPANY
|
 Courtesy of GENERAL MOTORS COMPANY
|

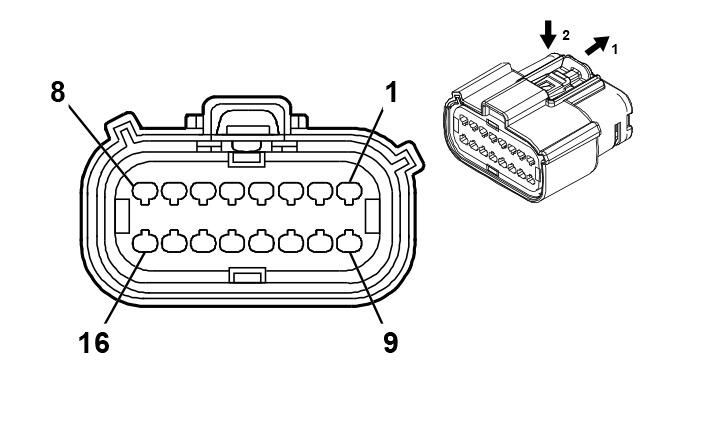

Connector Part Information
- Harness Type: 3rd Row Rear Seat
- OEM Connector: 33472-1769
- Service Connector: Service by Harness - See Part Catalog
- Description: 16-Way F 150 MX Series, Sealed (GY)
|
Connector Part Information
- Harness Type: Body
- OEM Connector: 33482-8725
- Service Connector: 13520632
- Description: 16-Way M 150 MX Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not Required |
J-35616-14 (GN) |
No Tool Required |
| II |
Not Required |
J-35616-2A (GY) |
No Tool Required |
| III |
19119395 |
J-35616-3 (GY) |
J-38125-217 |
| IV |
19119842 |
J-35616-3 (GY) |
J-38125-217 |
| Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
Function |
Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
| 1 |
1.5 |
BN |
4222 |
I |
- |
3rd Row Left Seat Recline Motor Rearward Control |
1 |
1.5 |
BN |
4222 |
IV |
- |
| 2 |
0.75 |
YE/WH |
4228 |
II |
- |
3rd Row Left Seat Recline Rearward Lock Actuator Control |
2 |
0.75 |
YE/WH |
4228 |
III |
- |
| 3 |
0.5 |
GN/OG |
3516 |
I |
- |
3rd Row Left Seat Belt Switch Signal |
3 |
0.35 |
GN/OG |
3516 |
III |
UH6 |
| 4 |
0.5 |
YE/BN |
4214 |
I |
- |
3rd Row Left Seat Recline Position Sensor Signal |
4 |
0.35 |
YE/BN |
4214 |
III |
- |
| 5 |
0.5 |
WH/VT |
4213 |
I |
- |
3rd Row Right Seat Recline Position Sensor Signal |
5 |
0.35 |
WH/VT |
4213 |
III |
- |
| 6 |
0.5 |
VT/OG |
3517 |
I |
- |
3rd Row Right Seat Belt Switch Signal |
6 |
0.35 |
VT/OG |
3517 |
III |
UH6 |
| 7 |
0.75 |
GN |
4226 |
II |
- |
3rd Row Right Seat Recline Rearward Lock Actuator Control |
7 |
0.75 |
GN |
4226 |
III |
- |
| 8 |
1.5 |
GY/OG |
4218 |
I |
- |
3rd Row Right Seat Recline Rearward Control |
8 |
1.5 |
GY/OG |
4218 |
IV |
- |
| 9 |
1.5 |
VT/BK |
4221 |
I |
- |
3rd Row Left Seat Recline Motor Forward Control |
9 |
1.5 |
VT/BK |
4221 |
IV |
- |
| 10 |
0.75 |
GY |
4227 |
II |
- |
3rd Row Left Seat Recline Forward Lock Actuator Control |
10 |
0.75 |
GY |
4227 |
III |
- |
| 11 |
0.5 |
BK/OG |
1361 |
I |
- |
Passenger Seat Belt Switch Low Reference |
11 |
0.35 |
BK/OG |
1361 |
III |
UH6 |
| 12 |
0.5 |
WH/RD |
4216 |
I |
- |
Seat Sensor Voltage Reference 1 |
12 |
0.35 |
WH/RD |
4216 |
III |
- |
| 13 |
0.5 |
VT/RD |
4215 |
I |
- |
Seat Sensor Voltage Reference 2 |
13 |
0.35 |
VT/RD |
4215 |
III |
- |
| 14 |
0.5 |
BK/OG |
1361 |
I |
- |
Passenger Seat Belt Switch Low Reference |
14 |
0.35 |
BK/OG |
1361 |
III |
UH6 |
| 15 |
0.75 |
VT/GY |
4225 |
II |
- |
3rd Row Right Seat Recline Forward Lock Actuator Control |
15 |
0.75 |
VT/GY |
4225 |
III |
- |
| 16 |
1.5 |
BU |
4217 |
I |
- |
3rd Row Right Seat Recline Motor Forward Control |
16 |
1.5 |
BU |
4217 |
IV |
- |
