Removal Procedure
WARNING:
The battery must be disconnected to prevent the brake master cylinder from pressurizing the hydraulic system during its automated self diagnostic tests that can possibly occur when a door is opened or the key transmitter is activated. Failure to follow this precaution may cause personal injury.
WARNING:
- Disconnect the battery negative cable. Battery Negative Cable Disconnection and Connection
Fuel Tank (1) - Remove - Fuel Tank Replacement
Rear Suspension Cradle (1) - Remove - Rear Suspension Cradle Replacement (All Wheel Drive)Rear Suspension Cradle Replacement (Front Wheel Drive)

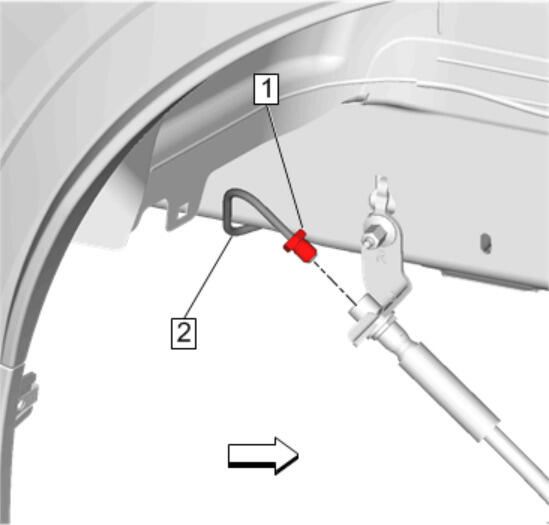

Brake Pipe Fitting (1) - Disconnect
Brake Pipe Clip (1) - Release [ 2x ]
Brake Pipe Clip (1) - Release [ 2x ]
Brake Pipe Fitting (1) - Disconnect
- Brake Pipe (2) - Remove
