Installation Procedure

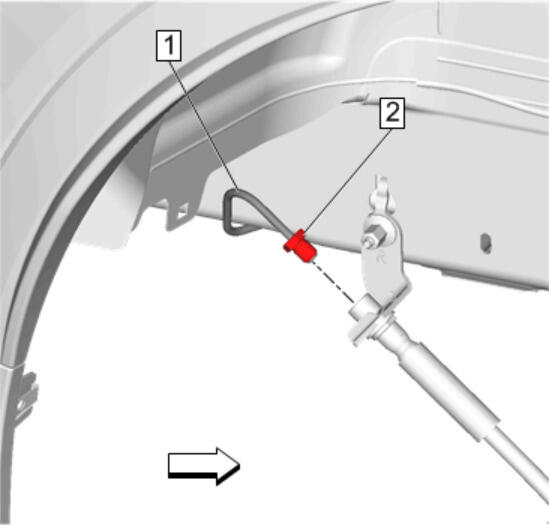

  1. GM4375460Courtesy of GENERAL MOTORS COMPANY

    Brake Pipe (1) - Install

    2. CAUTION:

    Fastener Caution

  2. Brake Pipe Fitting (2) - Install and tighten 18 N.m (13 lb ft)

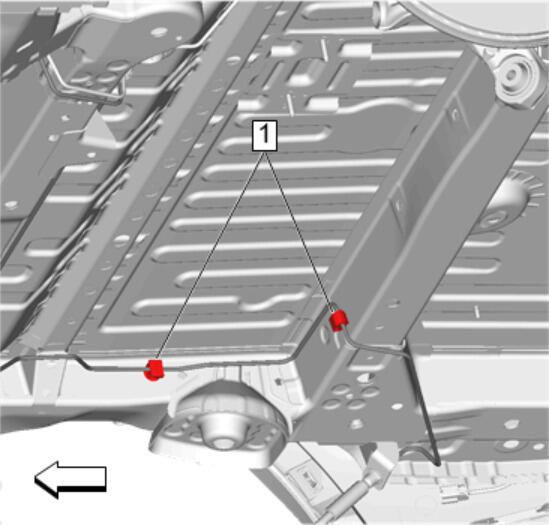

  3. GM4375454Courtesy of GENERAL MOTORS COMPANY

    Brake Pipe Clip (1) - Secure [ 2x ]

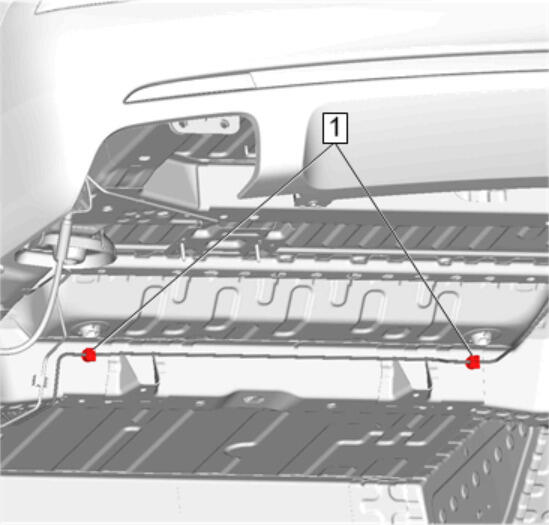

  4. GM4375448Courtesy of GENERAL MOTORS COMPANY

    Brake Pipe Clip (1) - Secure [ 2x ]

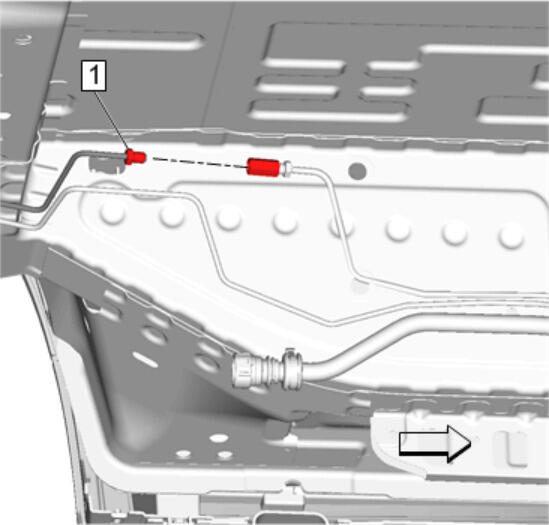

  5. GM4375445Courtesy of GENERAL MOTORS COMPANY

    Brake Pipe Fitting (1) - Install and tighten 18 N.m (13 lb ft)

  6. GM4298422Courtesy of GENERAL MOTORS COMPANY

    Rear Suspension Cradle (1) - Install - Rear Suspension Cradle Replacement (All Wheel Drive)Rear Suspension Cradle Replacement (Front Wheel Drive)

  7. GM4298742Courtesy of GENERAL MOTORS COMPANY

    Fuel Tank (1) - Install - Fuel Tank Replacement

  8. Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
  9. Bleed the brake system. Hydraulic Brake System Bleeding (Manual without JEO) Hydraulic Brake System Bleeding (Pressure without JEO) Hydraulic Brake System Bleeding (With JEO)
  10. Check for brake system leaks.
