Rear Side Door Pull Handle Bracket Replacement

Courtesy of GENERAL MOTORS COMPANY

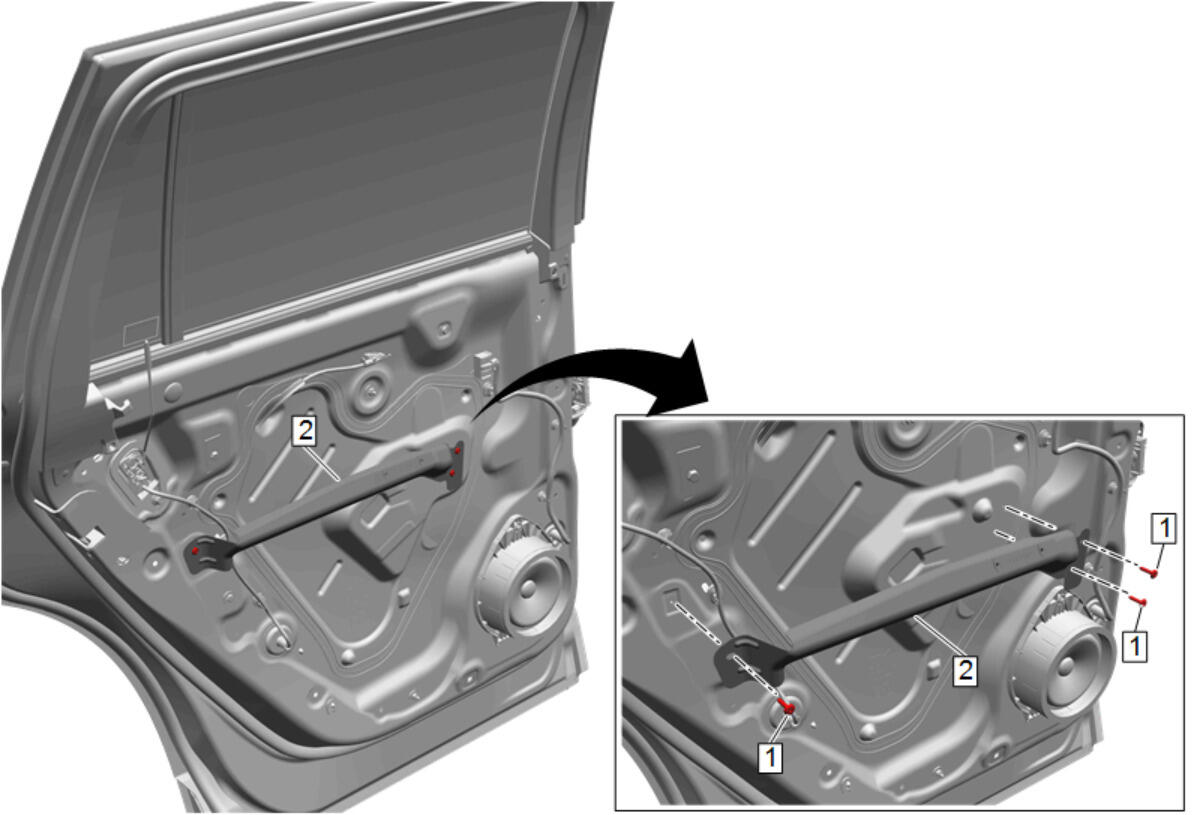

Callout	Component Name
Preliminary Procedure  Rear Side Door Trim Replacement
1	Rear Side Door Armrest Bracket Bolt [ 3x] CAUTION: Refer to Fastener Caution . Tighten  2.5 N.m (22 lb in)
2	Rear Side Door Pull Handle Bracket Procedure  Reposition water deflector, as necessary.
