Front Side Door Pull Handle Bracket Replacement

Courtesy of GENERAL MOTORS COMPANY

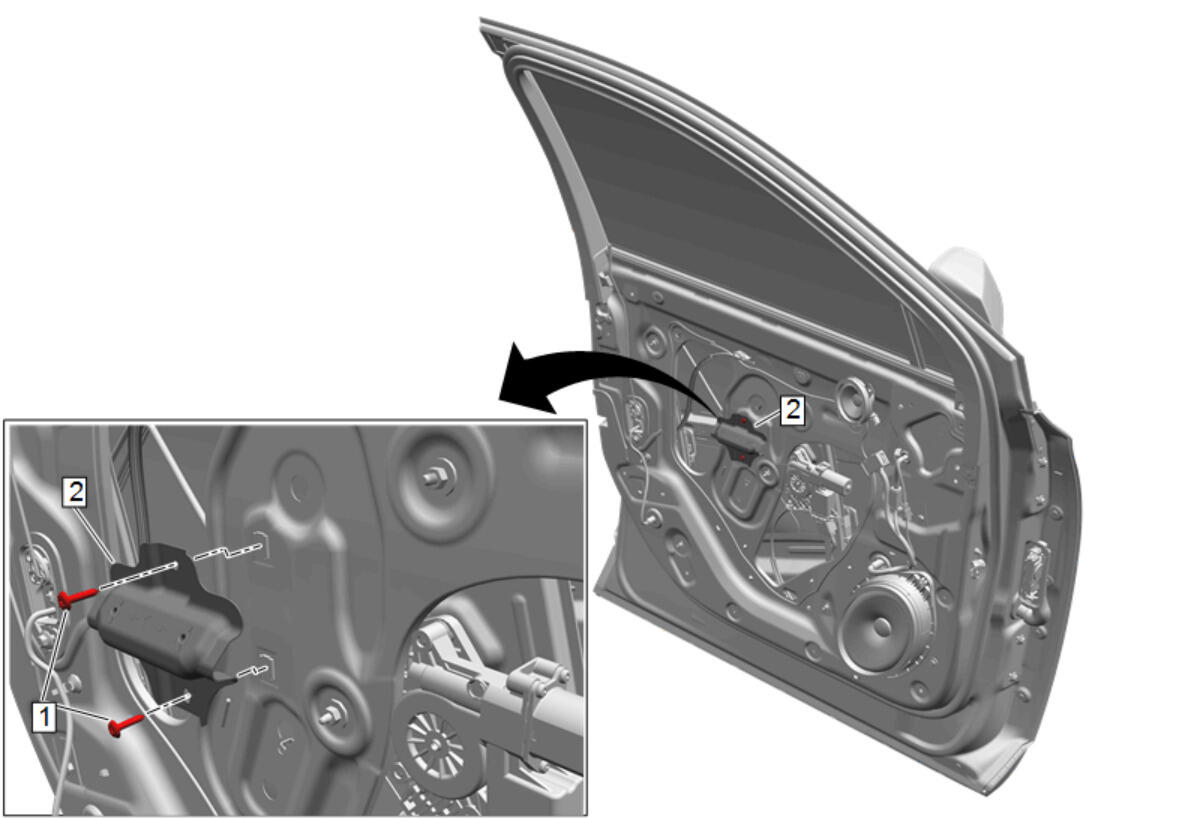

Callout	Component Name
Preliminary Procedure  Front Side Door Trim Replacement
1	Front Side Door Armrest Bracket Bolt [2x] CAUTION: Refer to:Fastener Caution . Tighten  2.5 N.m (22 lb in)
2	Front Side Door Pull Handle Bracket Procedure  Reposition water deflector, as necessary.
