Rear Side Door Check Link Cover Replacement

Courtesy of GENERAL MOTORS COMPANY

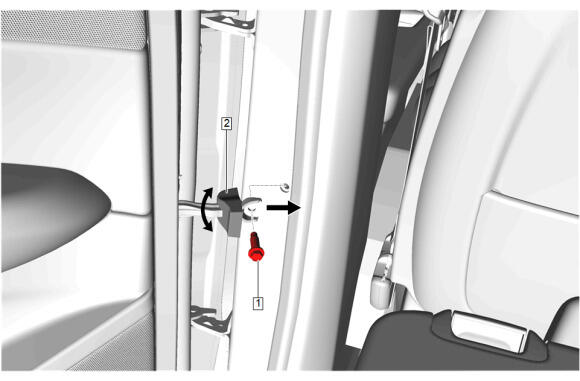

Callout	Component Name
Preliminary Procedure  Place the door in the full open position.
1	Rear Side Door Check Link Bolt Procedure  Pull the rear door check link cover rearward to gain access to the rear side door check link bolt.
2	Rear Side Door Check Link Cover Procedure  Turn the rear door check link cover sideways to slide off the rear side door check link.
