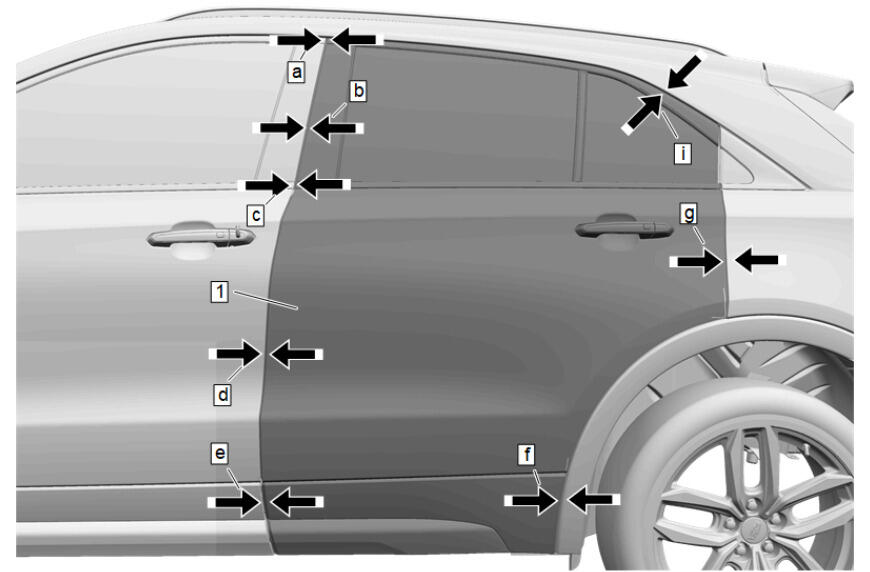

Rear Side Door Procedure
- Loosen the 4 rear side door hinge bolts to adjust the rear side door.
- Adjust the rear side door in order to obtain the specified gap between the rear side door window upper reveal molding to front side door window side door window upper reveal molding, rear side door window frame front applique to front side door window frame rear applique, rear side door window belt reveal molding to front side door window belt reveal molding, rear side door to front side door, rear side door molding to front side door molding, rear side door molding to rear wheel opening molding, rear side door to quarter panel, and rear side door window upper reveal molding to body side outer panel.
- tighten the 4 rear side door hinge bolts. Rear Side Door Upper Hinge and Lower Hinge Replacement
- Rear Side Door Latch Striker - Adjust if necessary. Rear Side Door Latch Striker Adjustment
Adjustment:
- Rear side door window upper reveal molding to front side door window side door window upper reveal molding (a) 4.0 mm ± 1.25 mm (0.16 in ± 0.05 in)
- Rear side door window frame front applique to front side door window frame rear applique (b) 4.0 mm ± 1.25 mm (0.16 in ± 0.05 in)
- Rear side door window belt reveal molding to front side door window belt reveal molding (c) 3.5 mm ± 1.25 mm (0.14 in ± 0.05 in)
- Rear side door to front side door (d) 3.5 mm ± 0.75 mm (0.14 in ± 0.03 in)
- Rear side door molding to front side door molding (e) 6.0 mm ± 1.25 mm (0.24 in ± 0.05 in)
- Rear side door molding to rear wheel opening molding (f) 6.0 mm ± 1.25 mm (0.24 in ± 0.05 in)
- Rear side door to quarter panel (g) 3.5 mm ± 0.75 mm (0.14 in ± 0.03 in)
- Rear side door window upper reveal molding to body side outer panel (i) 4.5 mm ± 1.0 mm (0.18 in ± 0.04 in)
|
