Liftgate Wiring Harness Replacement: Notes

Courtesy of GENERAL MOTORS COMPANY

Removal Procedure

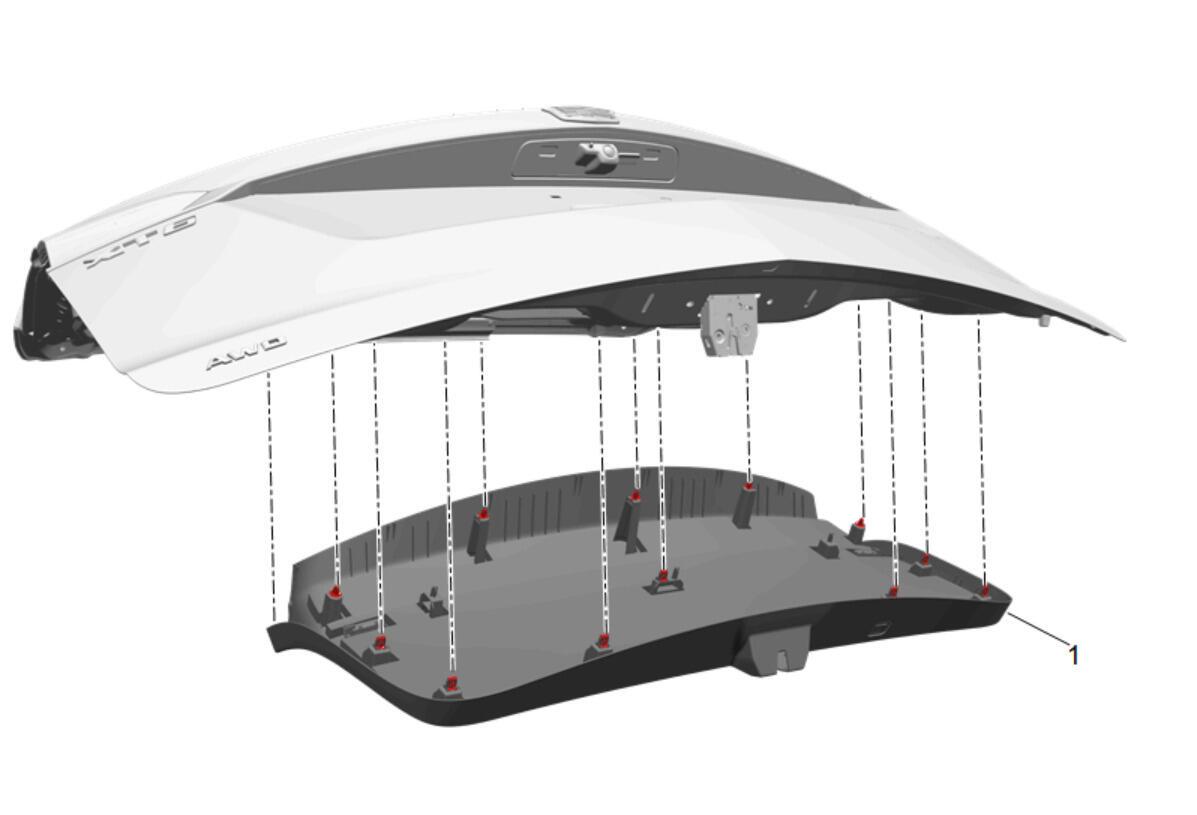

1. Liftgate Trim Finish Panel (1) - Remove - Liftgate Trim Finish Panel Replacement

   Courtesy of GENERAL MOTORS COMPANY

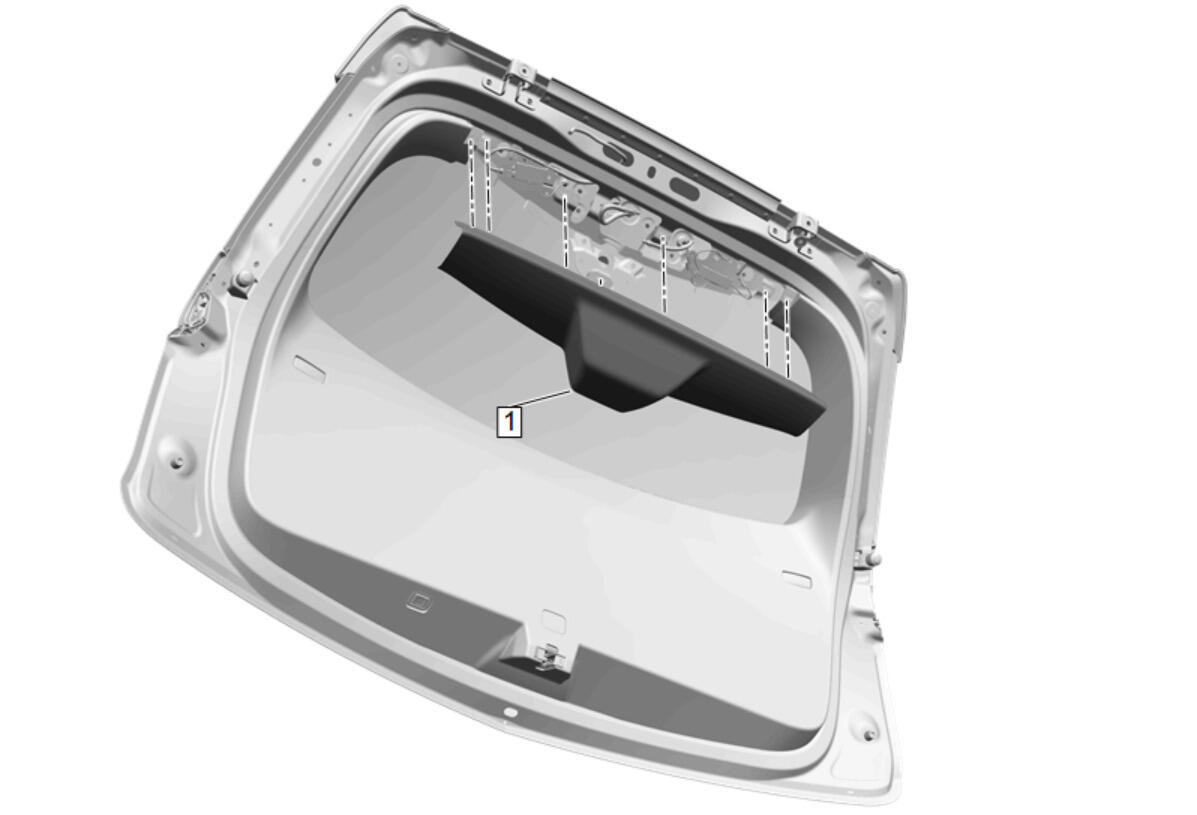

2. Liftgate Upper Center Trim Finish Panel (1) - Remove - Liftgate Upper Center Trim Finish Panel Replacement

   Courtesy of GENERAL MOTORS COMPANY

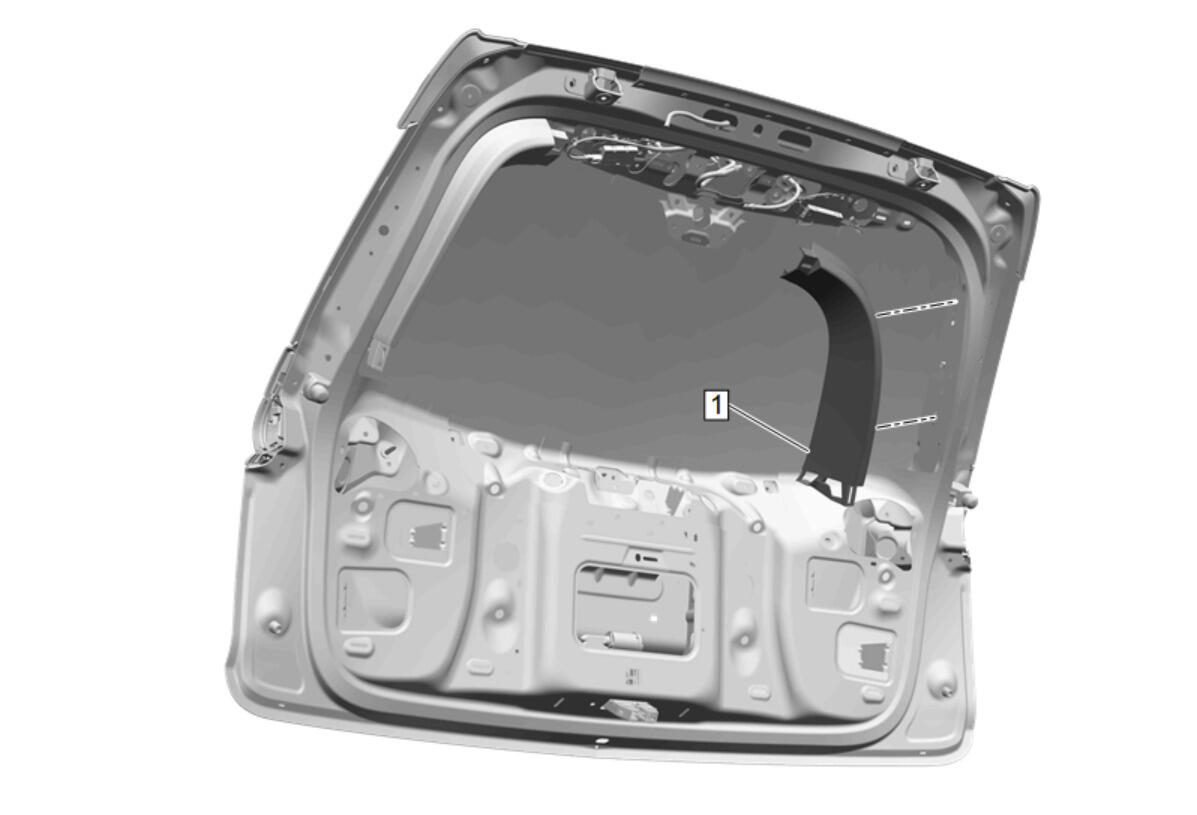

3. Liftgate Upper Side Trim Finish Panel (1) - Remove - Liftgate Upper Side Trim Finish Panel Replacement
4. Quarter Lower Rear Trim Panel - Remove -
5. Lower the rear of the headliner to access the grommet. Headlining Trim Panel Replacement

   Courtesy of GENERAL MOTORS COMPANY

6. Release the liftgate wiring harness grommet (1) from the liftgate.
7. Disconnect all the connectors of the liftgate wiring harness (2).

   Courtesy of GENERAL MOTORS COMPANY

8. Release the liftgate wiring harness grommet (1) from the roof panel.

   Courtesy of GENERAL MOTORS COMPANY

9. Pull the liftgate wiring harness (1) out of the liftgate grommet opening and the roof panel grommet opening.
