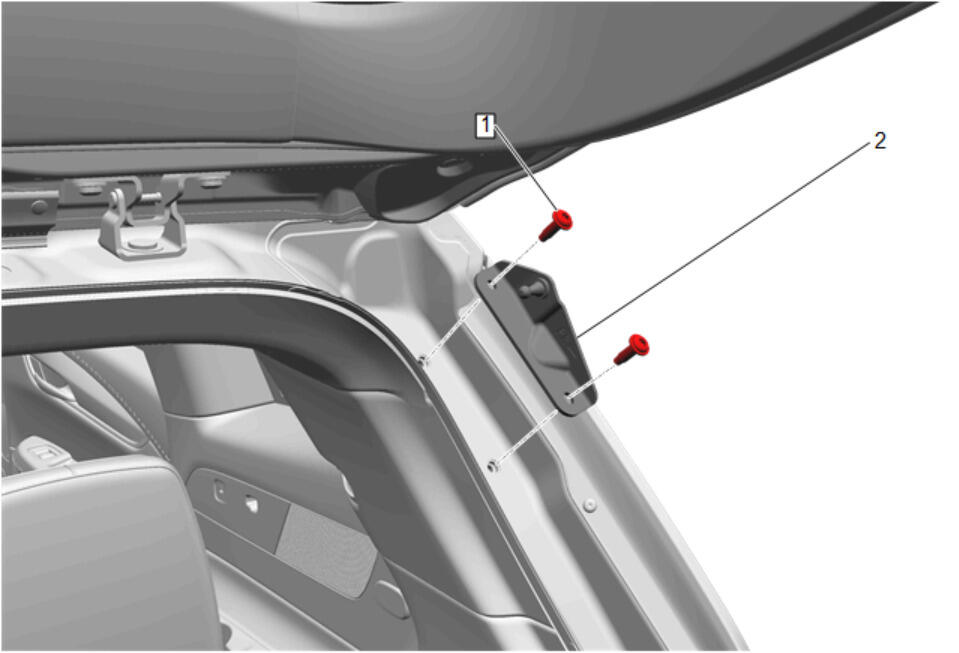

Liftgate Strut Bracket Replacement
| Callout | Component Name |
|---|---|
| Preliminary Procedure Liftgate Strut Replacement |
|
| 1 | Liftgate Strut Bracket Bolt [2x]
CAUTION:
Refer to Fastener Caution . tighten 22 N.m (16 lb ft) |
| 2 | Liftgate Strut Bracket |
