Liftgate Hinge Replacement

Courtesy of GENERAL MOTORS COMPANY

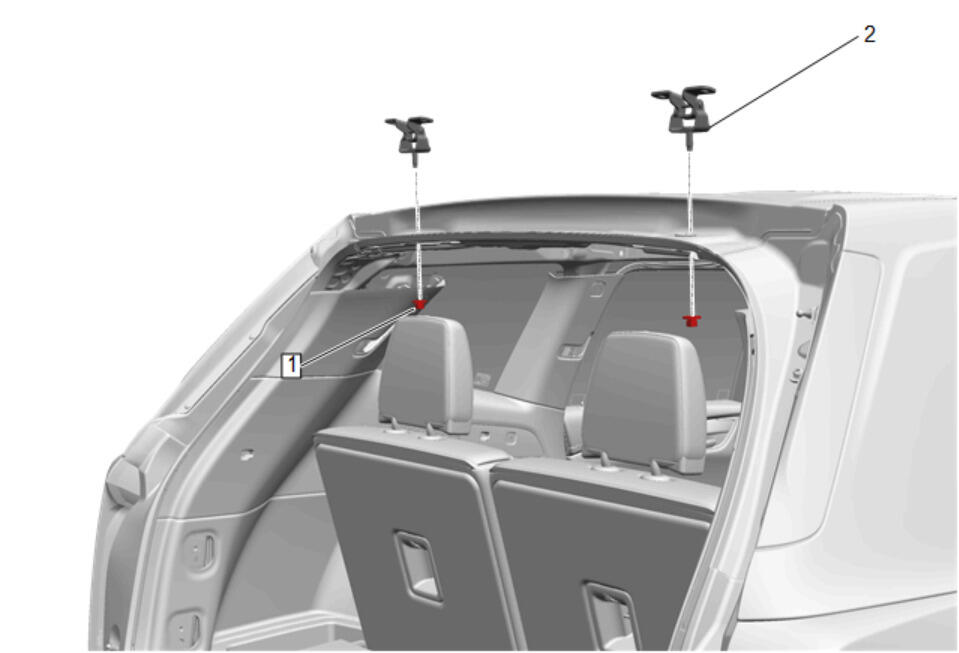

Callout	Component Name
Preliminary Procedures Liftgate Replacement Lower the rear of the headliner to access the nuts. Headlining Trim Panel Replacement Mark the position of the hinges with a grease pencil.
1	Liftgate Hinge Nut [2x] CAUTION: Refer to Fastener Caution . tighten 58 N.m (43 lb ft)
2	Liftgate Hinge [2x] Procedure Adjust the liftgate as needed.

Callout

Component Name

Preliminary Procedures

Liftgate Replacement
Lower the rear of the headliner to access the nuts. Headlining Trim Panel Replacement
Mark the position of the hinges with a grease pencil.

Liftgate Hinge Nut [2x]

CAUTION:

tighten
58 N.m (43 lb ft)

Liftgate Hinge [2x]
Procedure
Adjust the liftgate as needed.
