Hood Rear Weatherstrip Replacement

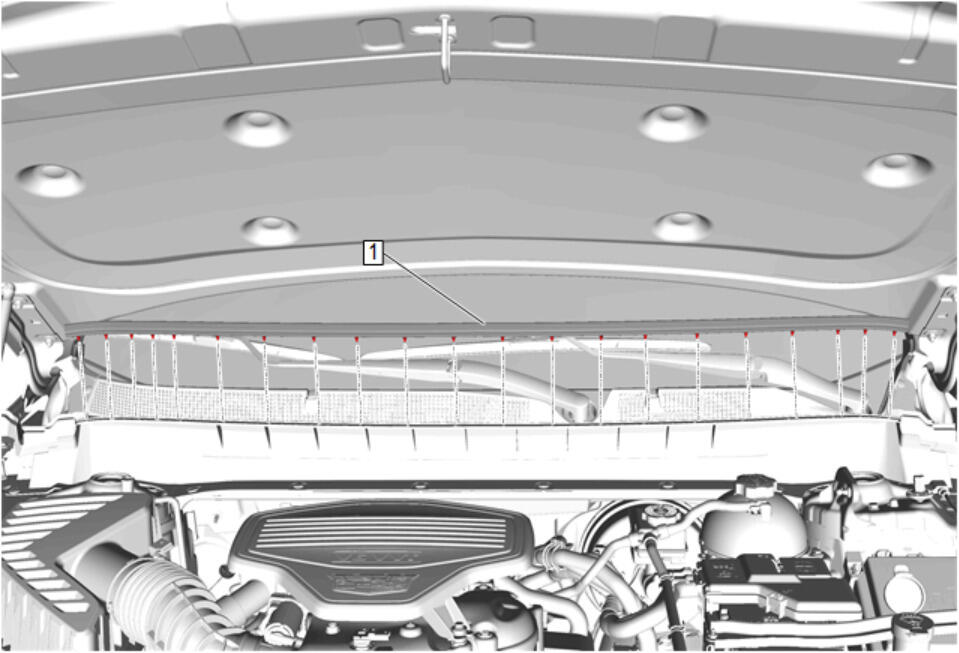

GM5192419Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Hood Rear Weatherstrip
Procedure
Using a trim type tool, release the 21 plastic retainers that are part of the hood rear weatherstrip.
