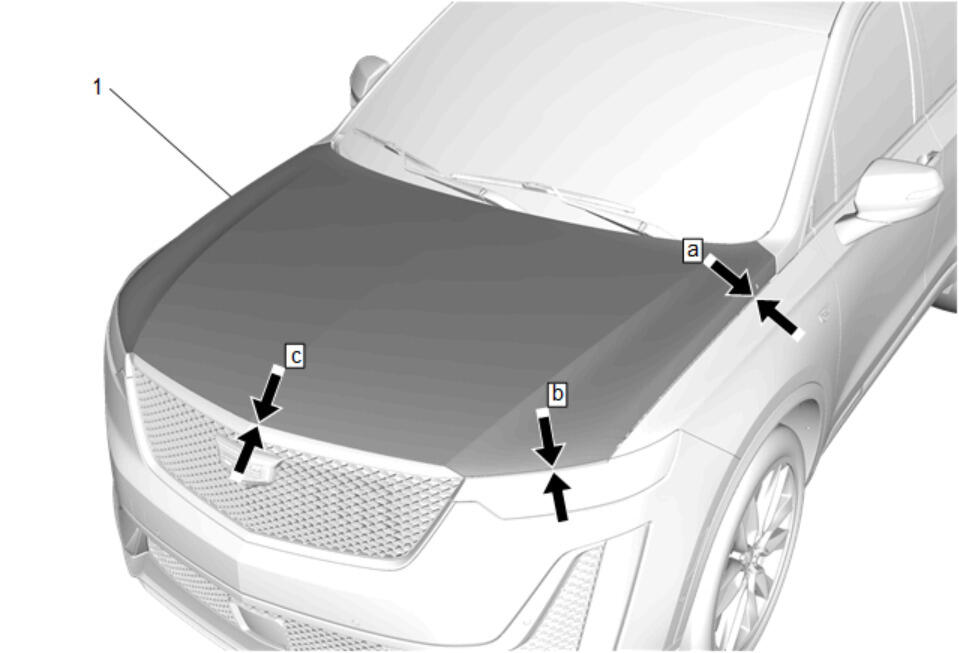

| 1 |
Hood Procedure
- Loosen the 4 hood hinge nuts.
- Adjust the hood in order to obtain an even gap on both sides between the hood and the fenders, headlamps and the front bumper fascia.
- tighten the 4 hood hinge nuts. Hood Replacement
- Loosen and adjust the hood primary and secondary latch and the hood bumpers as necessary to obtain the adjustment.
Adjustment Procedure
- Hood to front fender (a) 4.0 mm ±.75 mm (0.16 in ± 0.03 in)
- Hood to headlamp (b) 6.5 mm ± 1 mm (0.25 in ± 0.04 in)
- Hood to front upper grille (c) 6.5 mm ±.1.5 mm (0.25 in ± 0.06 in)
|
