Front Side Door Procedure
- Loosen the appropriate 4 front side door hinge bolts to adjust the front side door.
- Adjust the front side door in order to obtain the specified gap between the front fender to front side door window upper reveal molding, front fender to front side door window belt reveal molding, front fender to front side door, front wheel opening molding to front side door molding, front side door to rear side door, front side door window belt reveal molding to rear side door window belt reveal molding, front side door window frame rear applique to rear side door window frame front applique, and front side door window upper reveal molding to rear side door window side door window upper reveal molding.
- tighten the appropriate 4 front side door hinge bolts. Front Side Door Upper Hinge and Lower Hinge Replacement
- Front Side Door Latch Striker - Adjust if necessary. Front Side Door Latch Striker Adjustment
Adjustment:

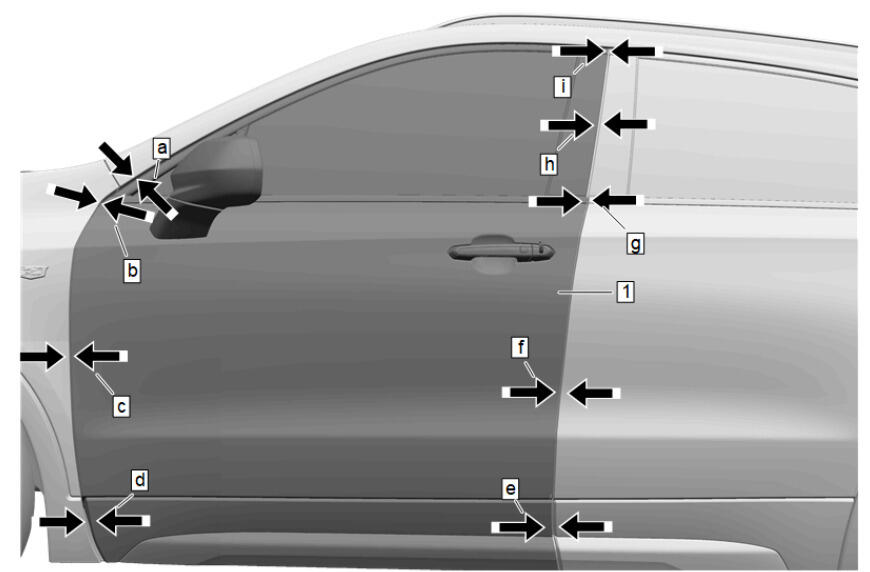

- Front fender to front side door window upper reveal molding (a) 4.5 mm ± 1.5 mm (0.18 in ± 0.06 in)
- Front fender to front side door window belt reveal molding (b) 4.0 mm ± 1.25 mm (0.16 in ± 0.05 in)
- Front fender to front side door (c) 3.5 mm ± 0.75 mm (0.14 in ± 0.03 in)
- Front wheel opening molding to front side door molding (d) 5.0 mm ± 1.5 mm (0.22 in ± 0.06 in)
- Front side door molding to rear side door molding (e) 6.0 mm ± 1.25 mm (0.24 in ± 0.05 in)
- Front side door to rear side door (f) 3.5 mm ± 0.75 mm (0.14 in ± 0.03 in)
- Front side door window belt reveal molding to rear side door window belt reveal molding (g) 3.5 mm ± 1.25 mm (0.14 in ± 0.05 in)
- Front side door window frame rear applique to rear side door window frame front applique (h) 4.0 mm ± 1.25 mm (0.16 in ± 0.05 in)
- Front side door window upper reveal molding to rear side door window side door window upper reveal molding (i) 4.0 mm ± 1.25 mm (0.16 in ± 0.05 in)
|
