Removal Procedure

  1. Radiator - Remove - Radiator Replacement (LGX with V08)Radiator Replacement (LGX without V08)Radiator Replacement (LSY)

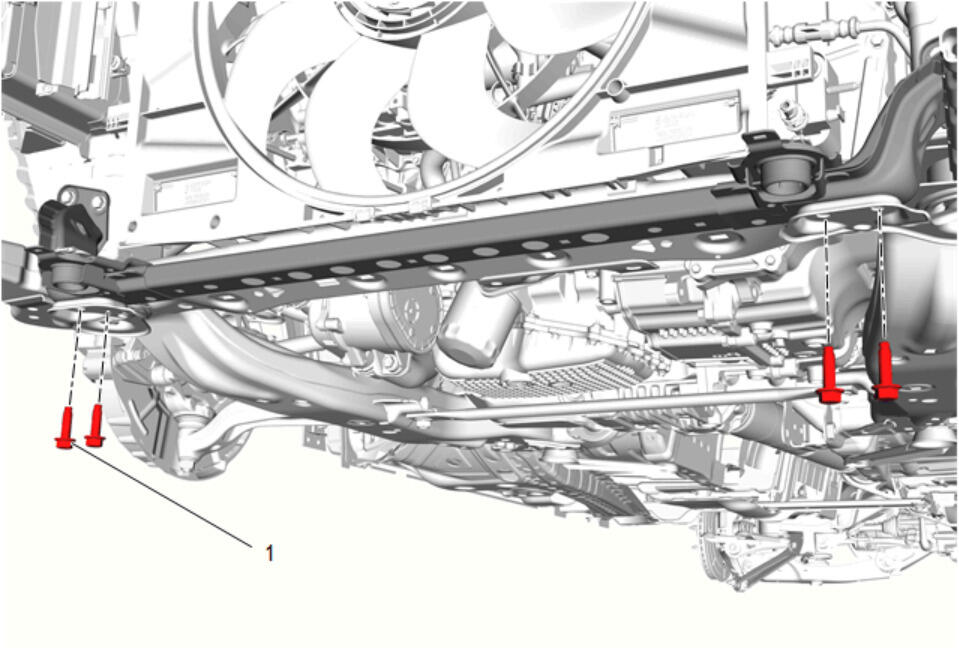

    GM5153117Courtesy of GENERAL MOTORS COMPANY
  2. Front Cradle Front Brace Bolt (1) - Remove - Front Cradle Front Brace Replacement

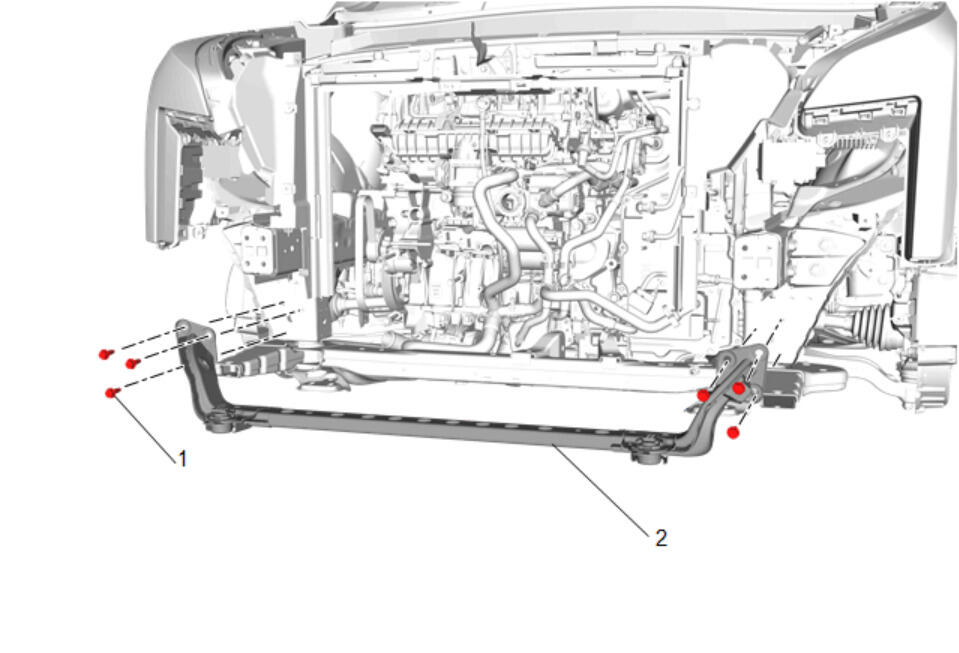

    GM5153122Courtesy of GENERAL MOTORS COMPANY
  3. Front End Lower Tie Bar Bolt (1) - Remove [6x]
  4. Front End Lower Tie Bar (2) - Remove
  5. Transfer components as necessary.
