Back Body Opening Side Gutter Replacement

Courtesy of GENERAL MOTORS COMPANY

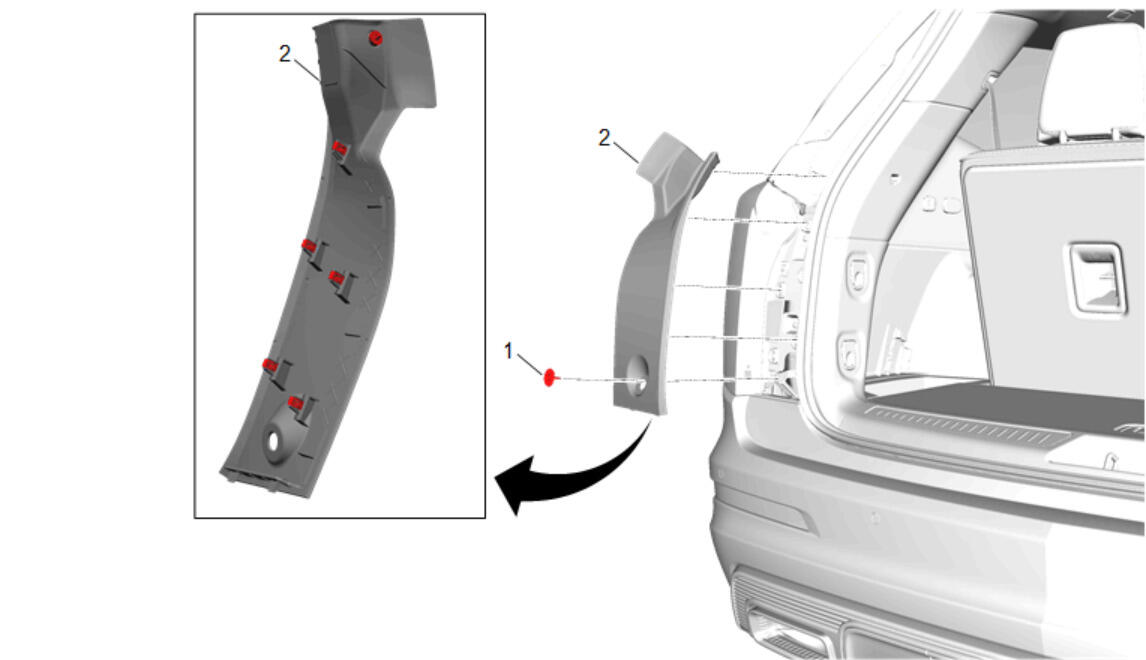

Callout	Component Name
1	Liftgate Bumper Pad Bolt CAUTION: Refer to Fastener Caution . tighten 2.5 N.m (22 lb in)
2	Back Body Opening Side Gutter Procedure Starting at the top outer edge, use a suitable flat bladed plastic tool to release the back body opening side gutter retainers. Pull up to remove the back body opening side gutter from the rear bumper fascia.

Callout

Component Name

Liftgate Bumper Pad Bolt

CAUTION:

tighten
2.5 N.m (22 lb in)

Back Body Opening Side Gutter

Procedure

Starting at the top outer edge, use a suitable flat bladed plastic tool to release the back body opening side gutter retainers.
Pull up to remove the back body opening side gutter from the rear bumper fascia.
