Rear Side Door Latch Striker Cover Replacement
Rear Side Door Latch Striker Cover Replacement
Courtesy of GENERAL MOTORS COMPANY

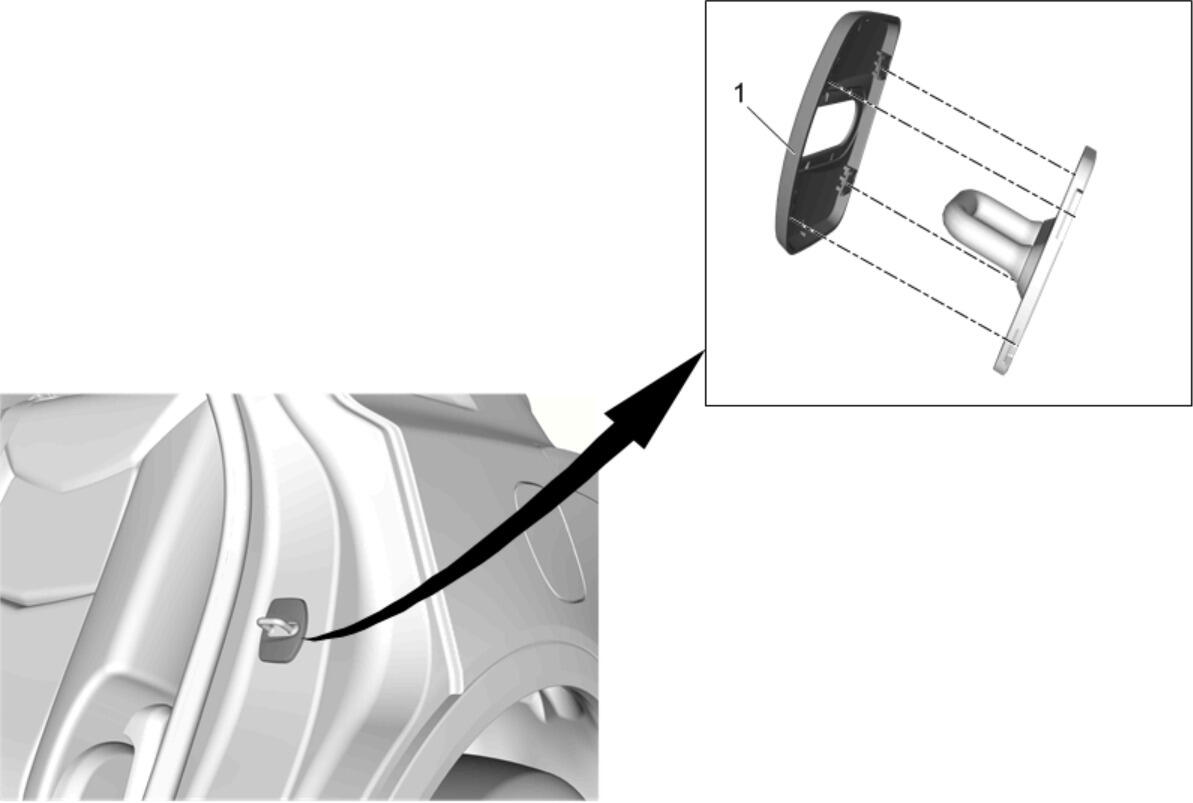

Callout
Component Name
1
Rear Side Door Latch Striker Cover
Procedure
Using the appropriate tool, place the tool between the outboard side of cover and pull upward from the striker.
Align the inboard tabs on the rear side door latch striker cover to the outboard side of the striker and press into place.
