Installation Procedure

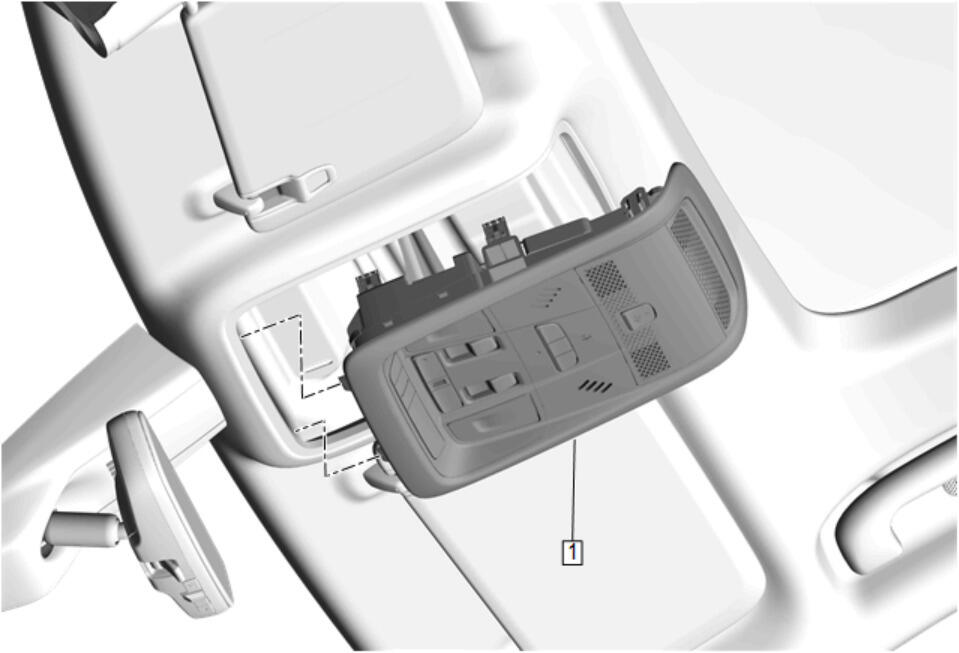

  1. GM5171817Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors.

  2. Insert the forward roof console (1) tabs into the headliner.

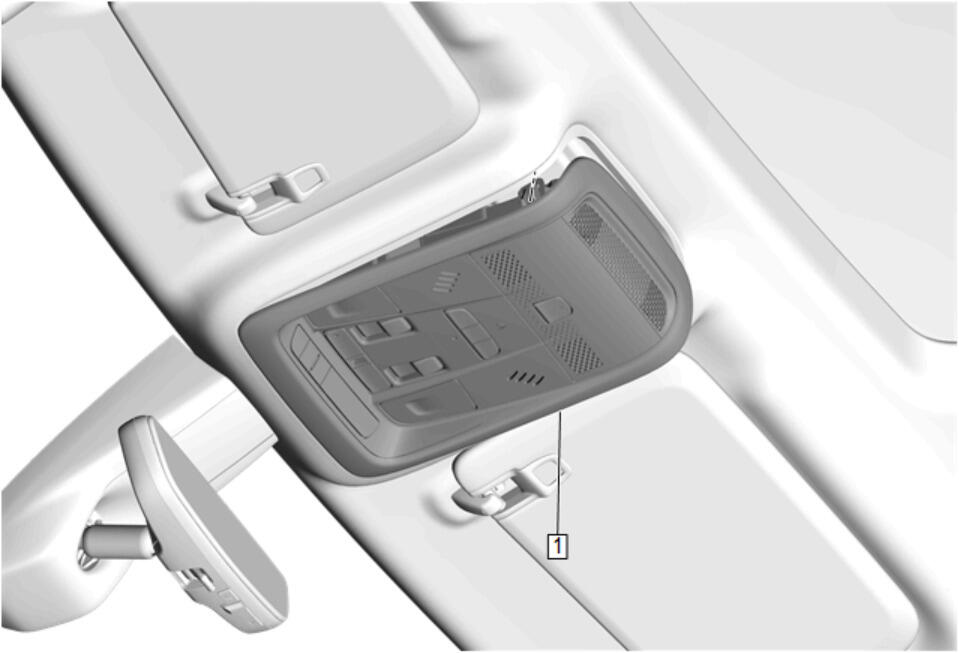

  3. GM5171816Courtesy of GENERAL MOTORS COMPANY

    Install the rear side roof console (1) tabs into the headliner.

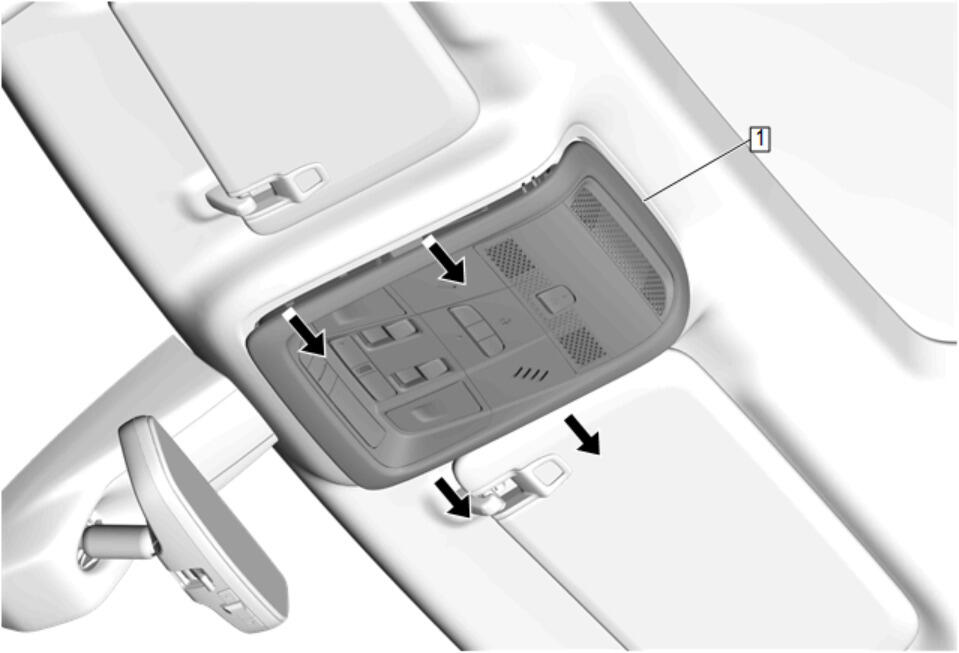

  4. GM5171815Courtesy of GENERAL MOTORS COMPANY

    Roof Console (1) - Install
