Removal Procedure

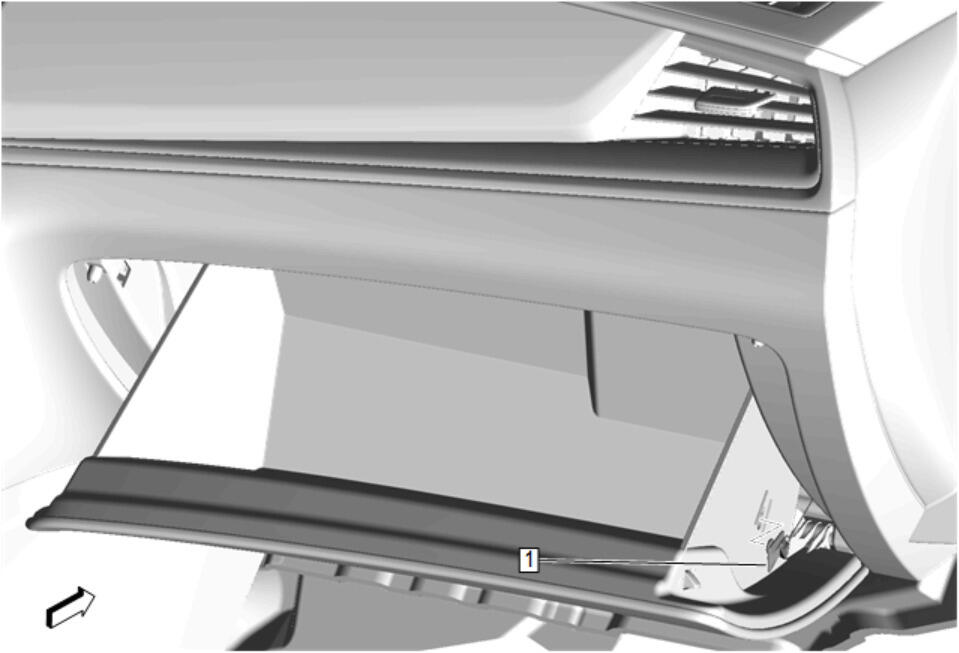

  1. GM5219500Courtesy of GENERAL MOTORS COMPANY

    Disconnect the instrument panel compartment door dampener (1) from the instrument panel compartment door.

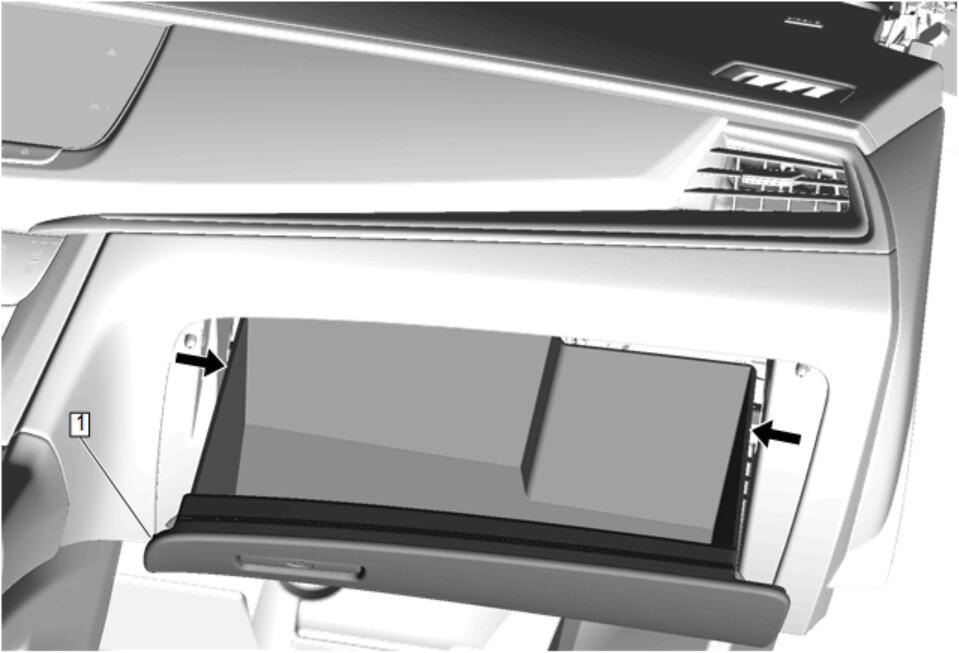

  2. GM5219501Courtesy of GENERAL MOTORS COMPANY

    Squeeze the sides of the compartment (1) and lower the compartment past the stops.

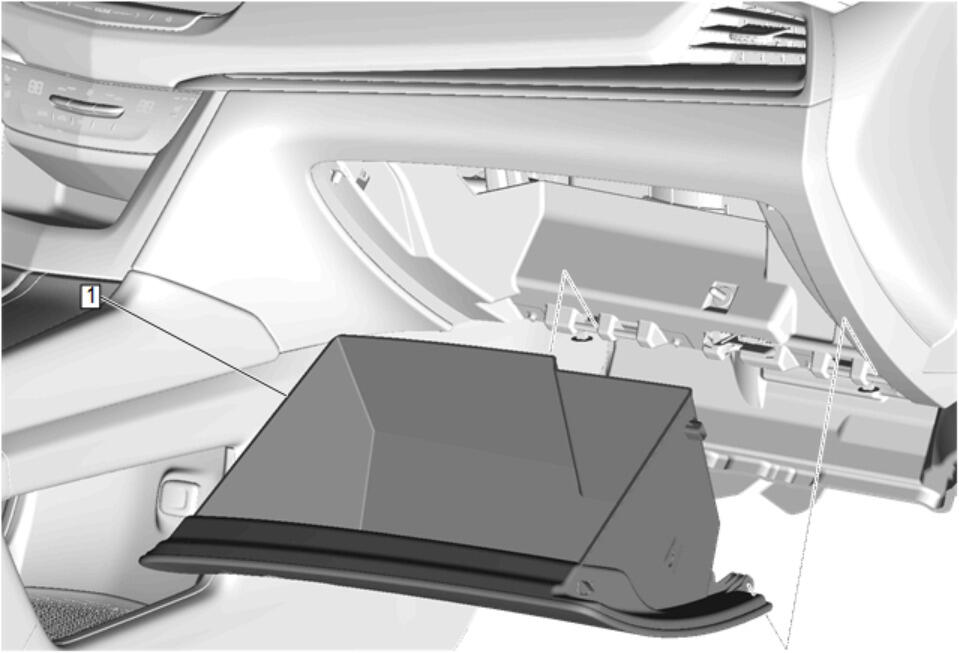

  3. GM5219503Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Compartment Door (1) - Remove
