Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

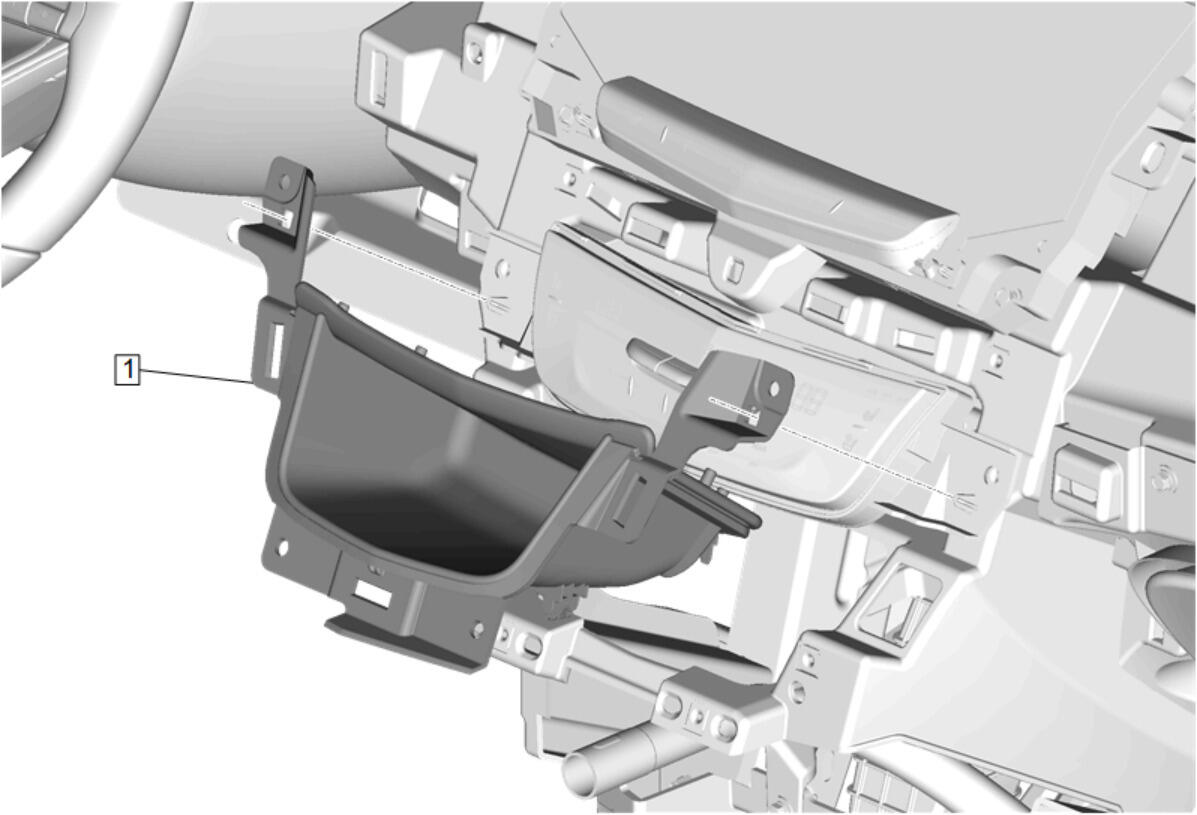

Instrument Panel Center Compartment (1) - Install

Courtesy of GENERAL MOTORS COMPANY

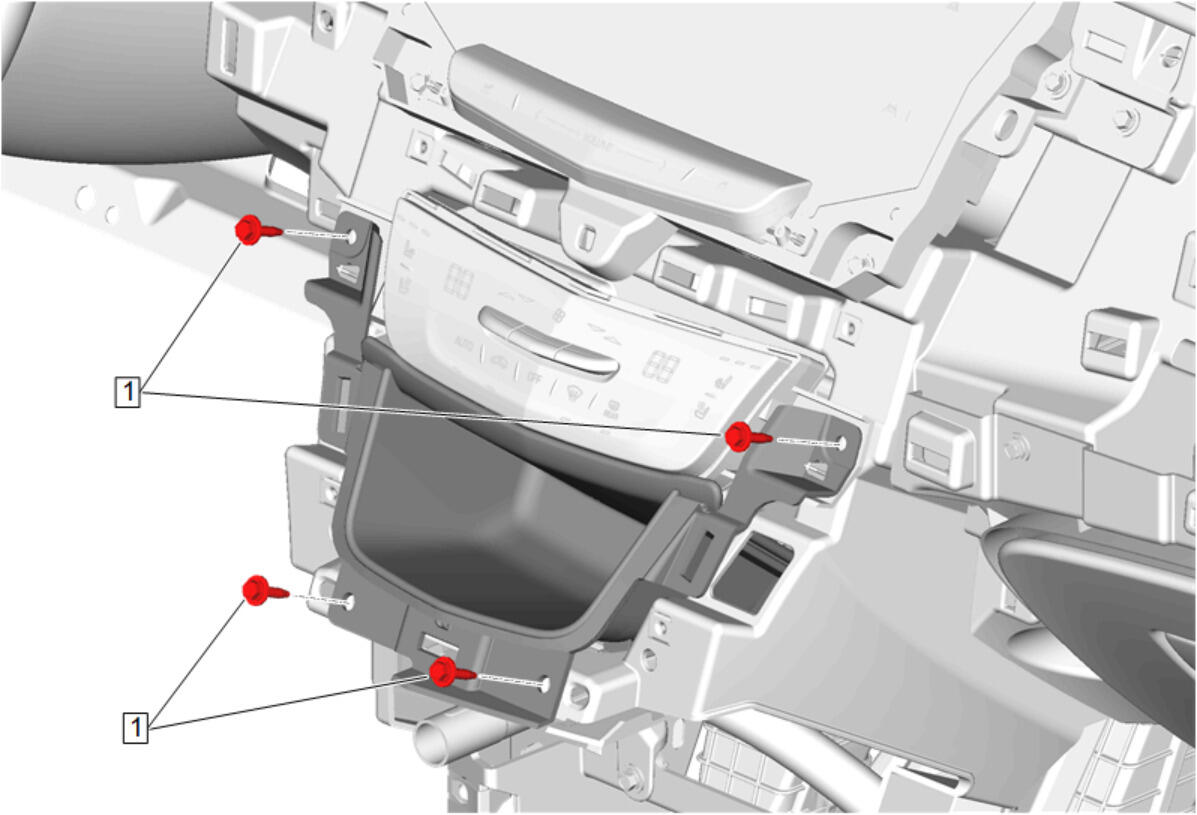

Instrument Panel Center Compartment Bolt (1) - Install and tighten [ 4x ] 2.5 N.m (22 lb in)

Courtesy of GENERAL MOTORS COMPANY

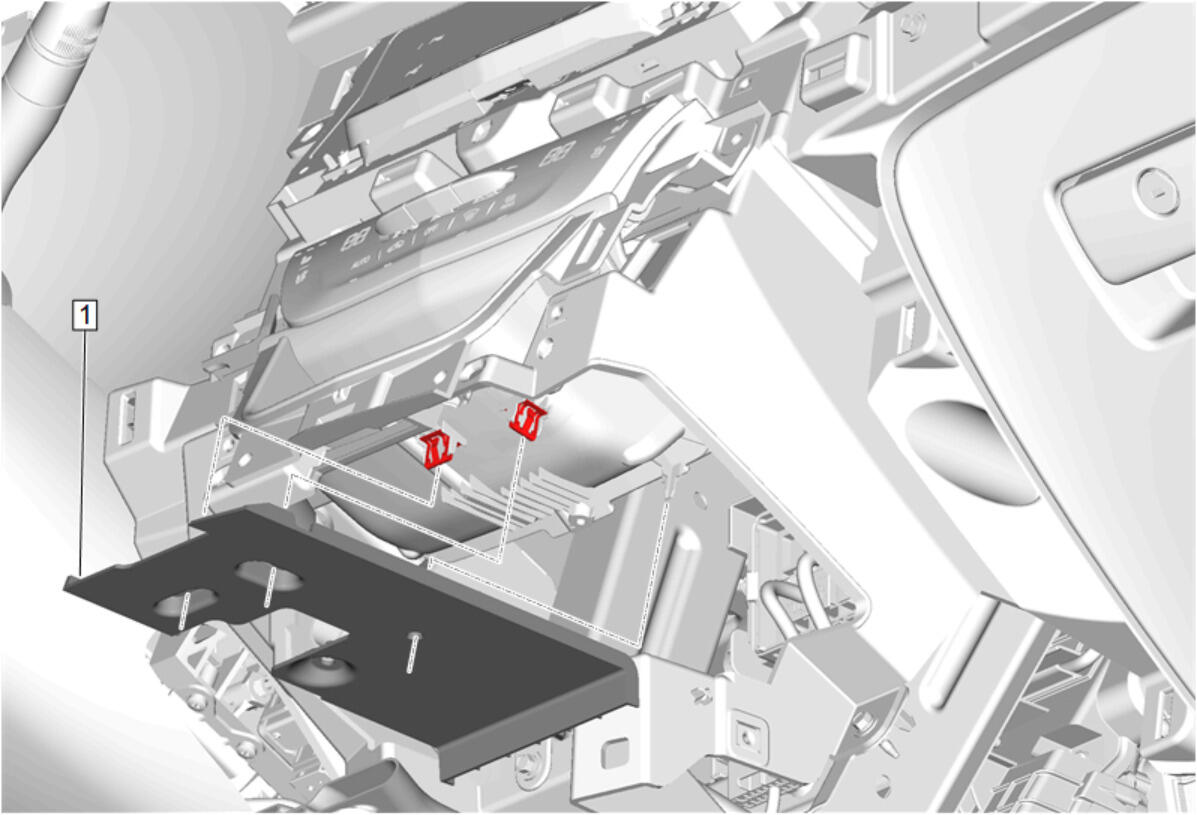

Instrument Panel Compartment Bracket (1) - Install

Courtesy of GENERAL MOTORS COMPANY

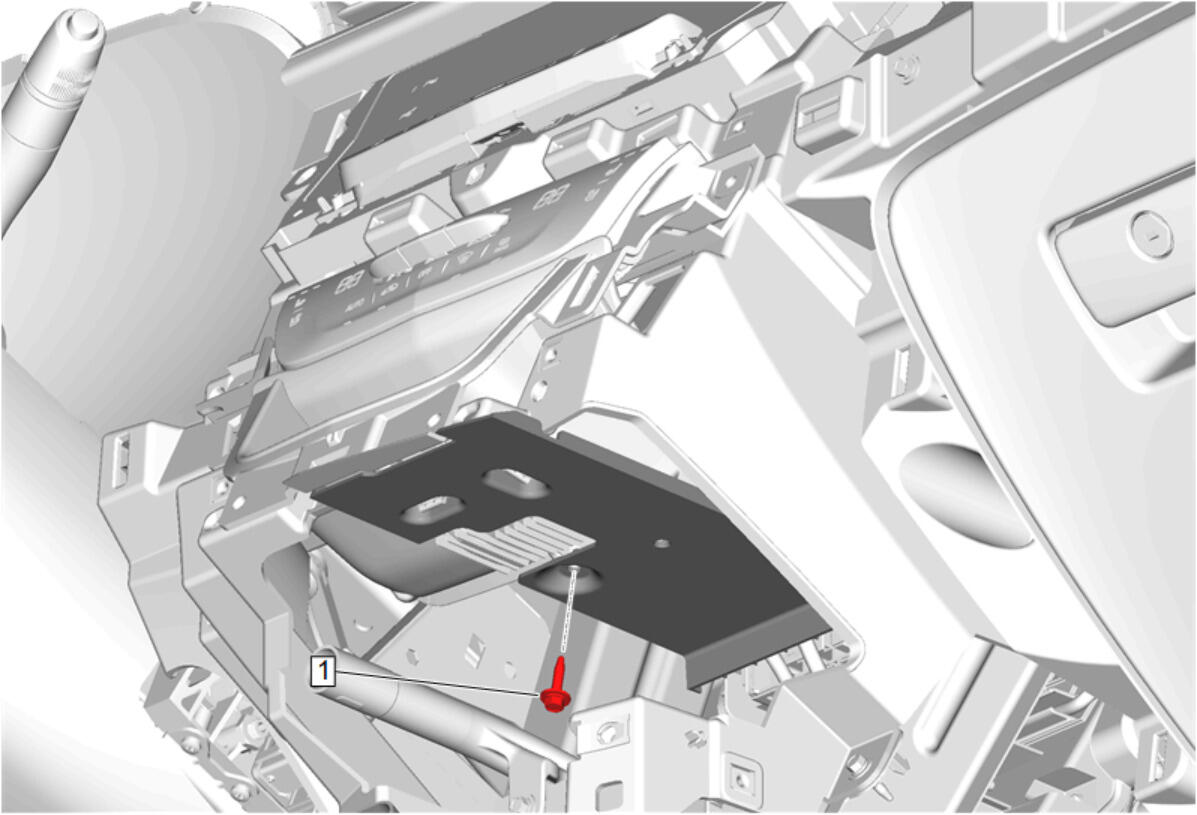

Instrument Panel Compartment Bracket Bolt (1) - Install and tighten 2.5 N.m (22 lb in)

Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Lower Trim Panel (2) - Install - Instrument Panel Lower Trim Panel Replacement

Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Knee Bolster (1) - Install - Instrument Panel Knee Bolster Replacement

Courtesy of GENERAL MOTORS COMPANY

Front Floor Console (1) - Install - Front Floor Console Replacement
