Removal Procedure

  1. Open the front floor console rear cup holder to access the two hidden fasteners.

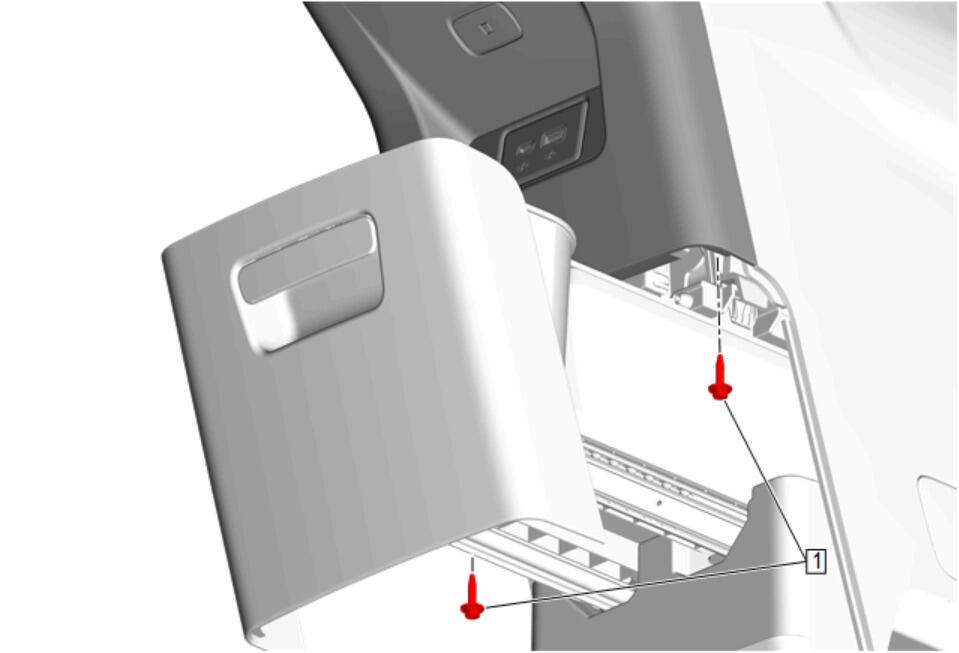

  2. GM5167624Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Rear Trim Panel Bolt (1) - Remove [ 2x ]

  3. GM5167629Courtesy of GENERAL MOTORS COMPANY

    Using a flat-bladed plastic trim tool, release the retaining clips.

  4. Front Floor Console Rear Trim Panel (1) - Remove
  5. Disconnect the electrical connectors.
  6. Transfer components as necessary.
