Removal Procedure

  1. GM5169147Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Compartment (1) - Remove - Front Floor Console Compartment Replacement

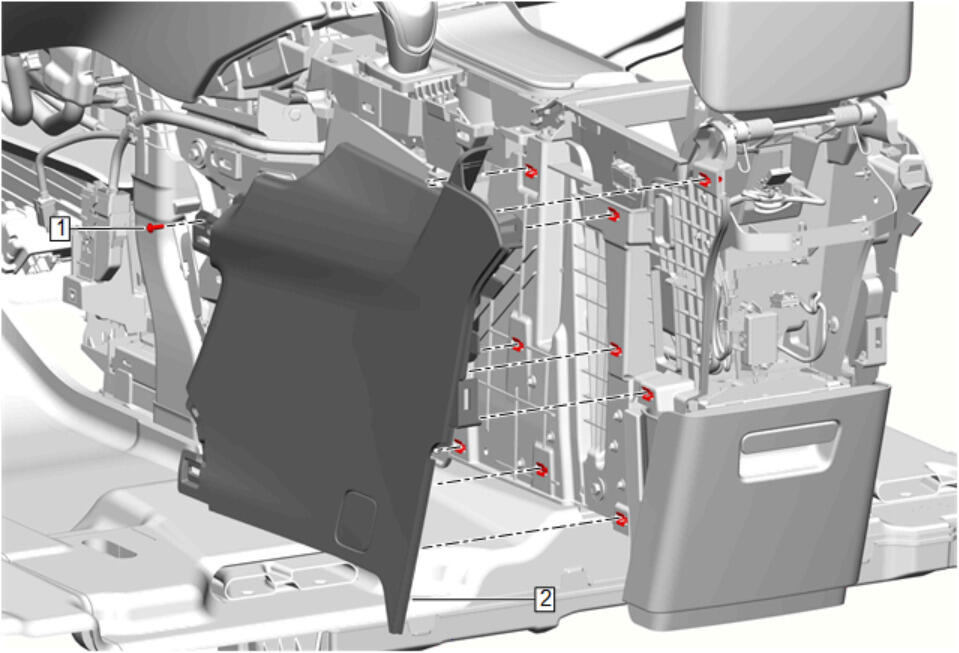

  2. GM5169831Courtesy of GENERAL MOTORS COMPANY

    Front Floor Rear Console Side Trim Panel - Left Side (2) - Remove - Front Floor Rear Console Side Trim Panel Replacement - Left Side

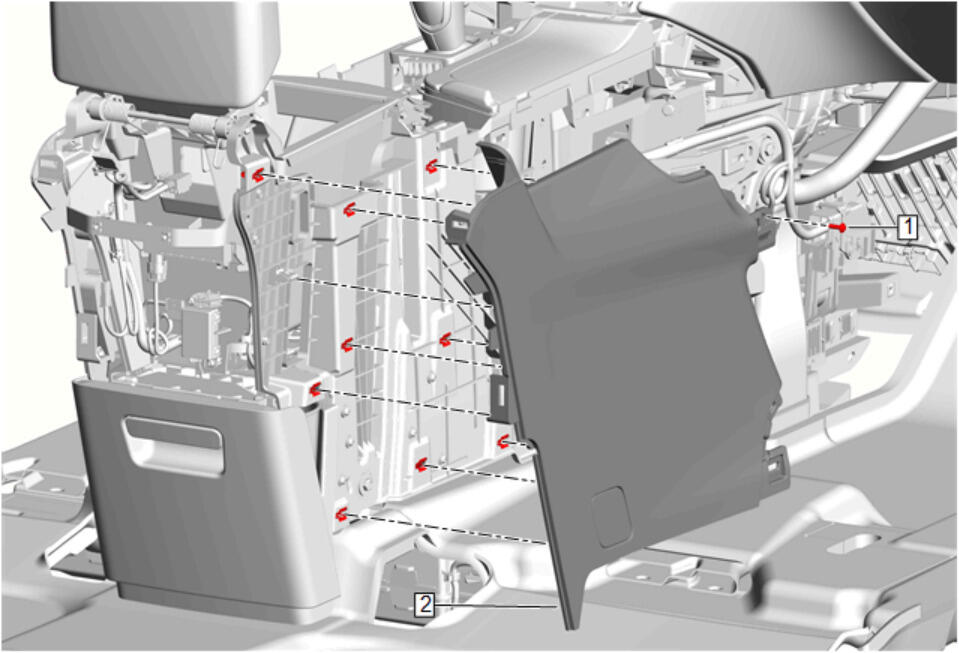

  3. GM5169830Courtesy of GENERAL MOTORS COMPANY

    Front Floor Rear Console Side Trim Panel - Right Side (2) - Remove - Front Floor Rear Console Side Trim Panel Replacement - Right Side

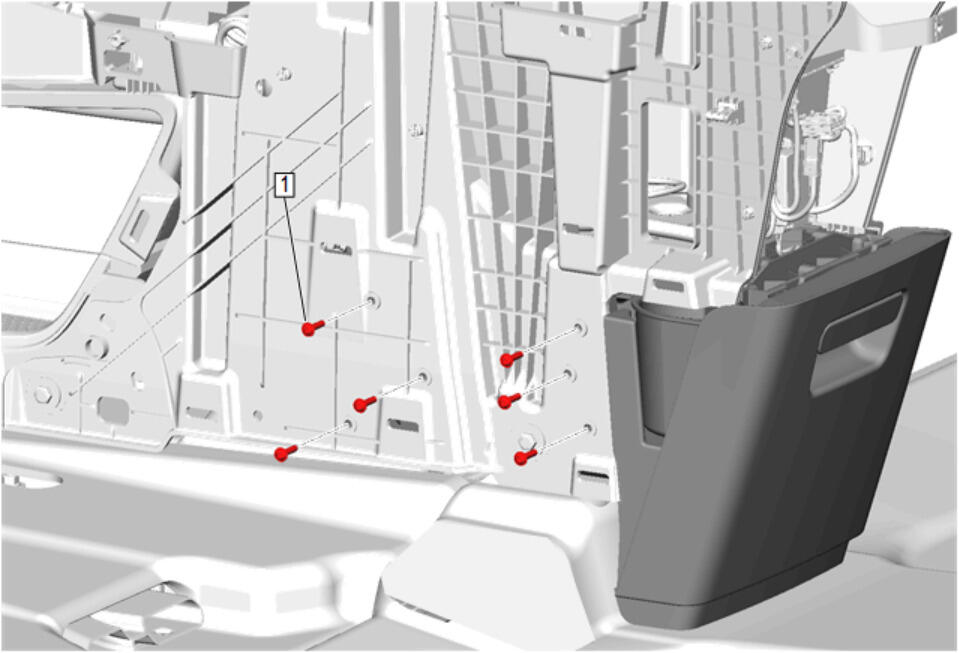

  4. GM5222384Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Rear Compartment Bolt (1) - Remove [ 6x ]

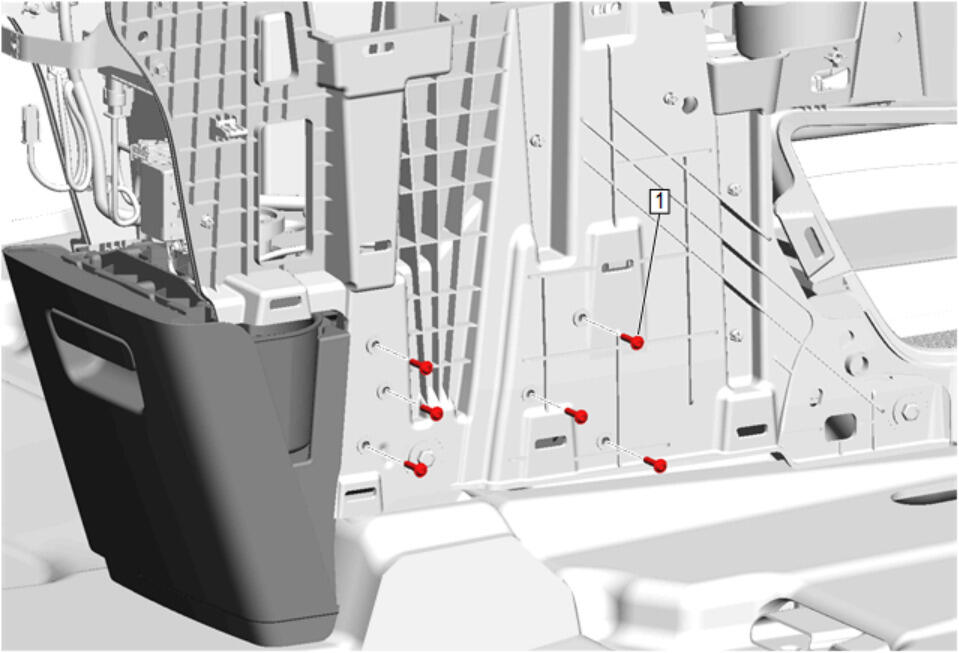

  5. GM5222385Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Rear Compartment Bolt (1) - Remove [ 6x ]

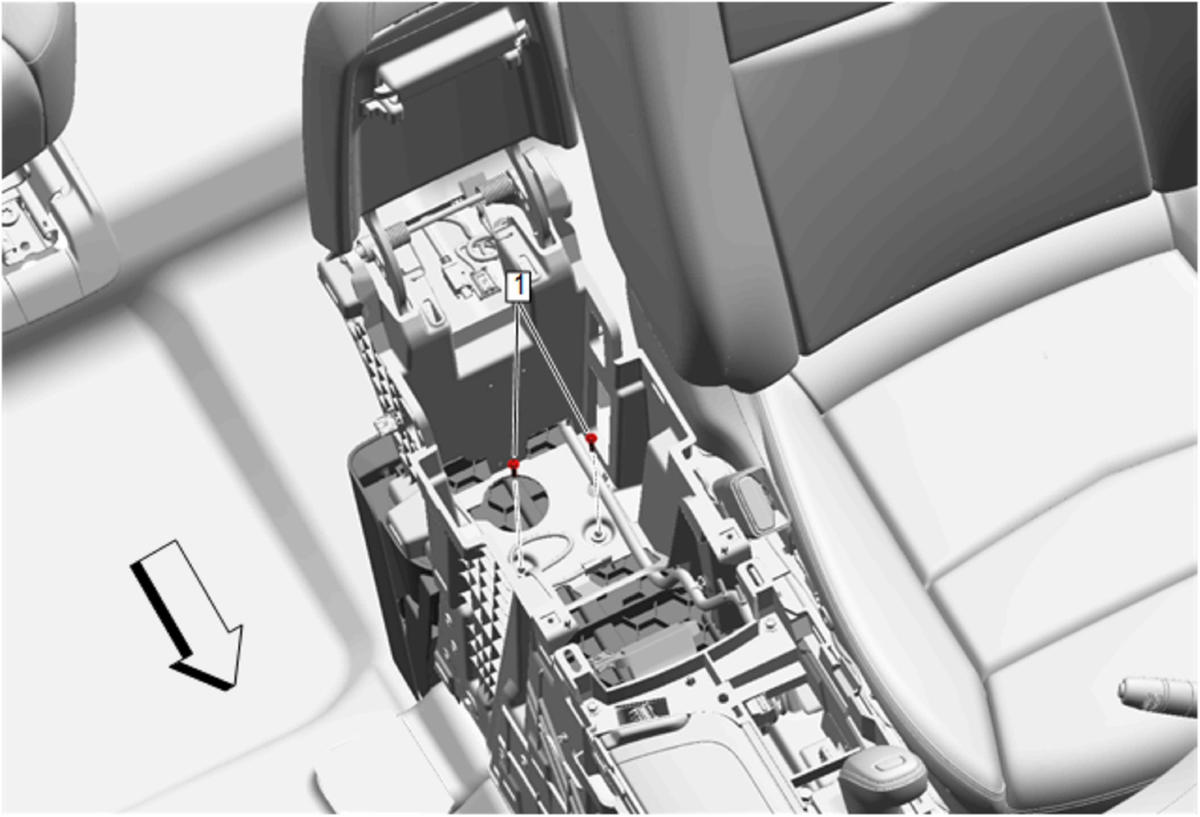

  6. GM5222387Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Rear Compartment Bolt (1) - Remove [ 2x ]

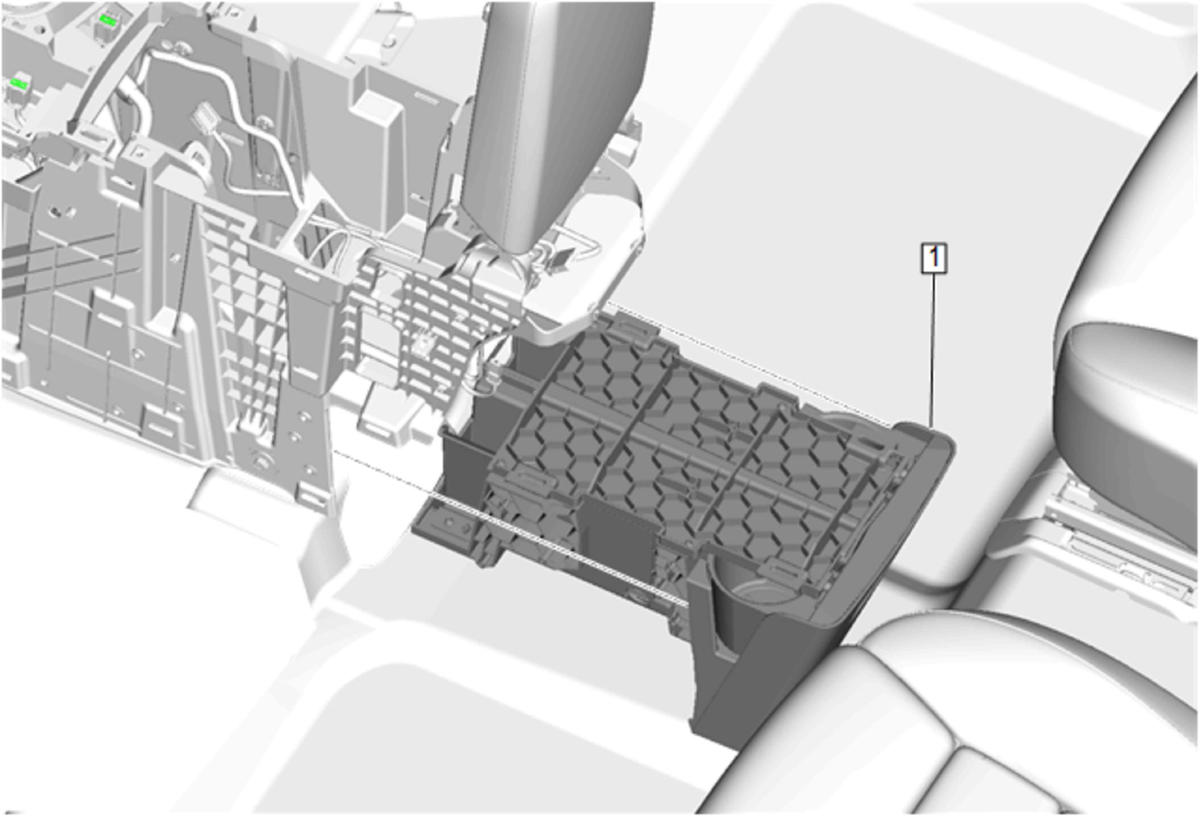

  7. GM5222389Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Rear Compartment (1) - Remove
