Removal Procedure

Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Holder (2) - Remove - Front Floor Console Holder Replacement
Courtesy of GENERAL MOTORS COMPANY

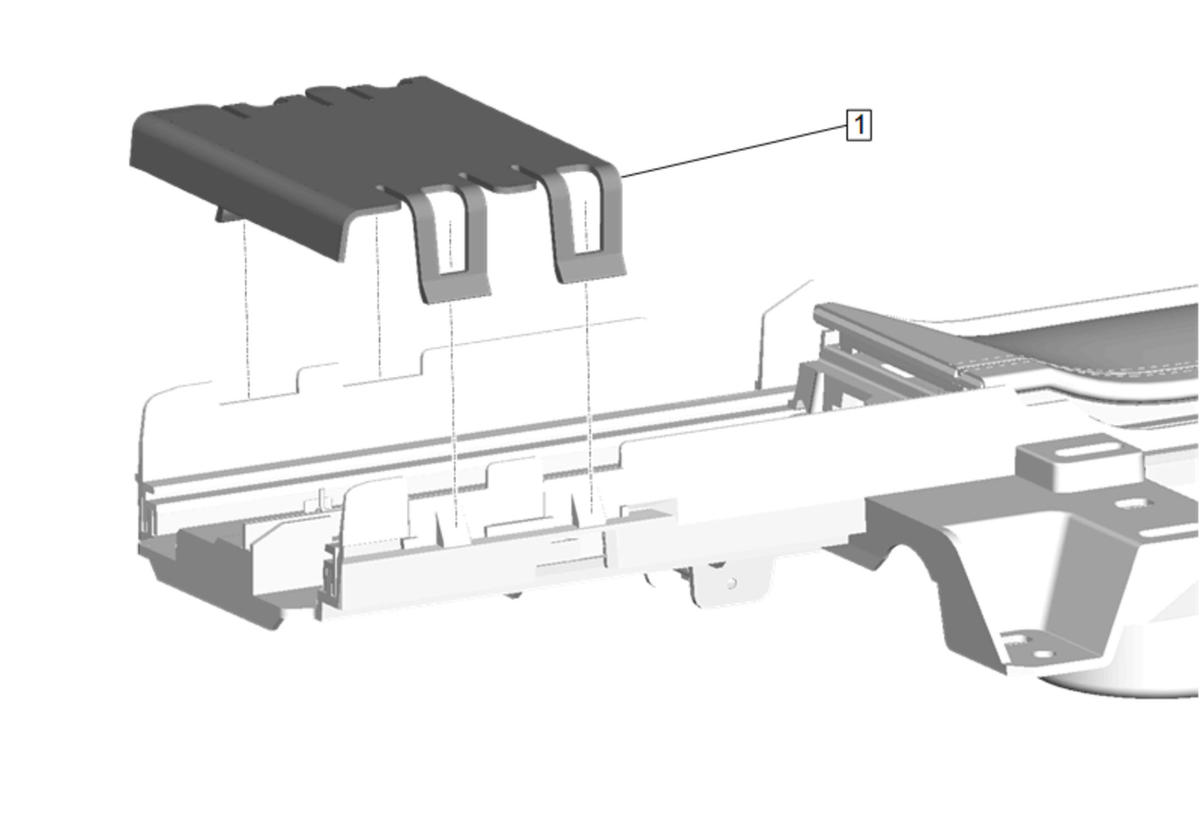

Remove the front floor console holder cover (1) by releasing the four tabs.
Courtesy of GENERAL MOTORS COMPANY

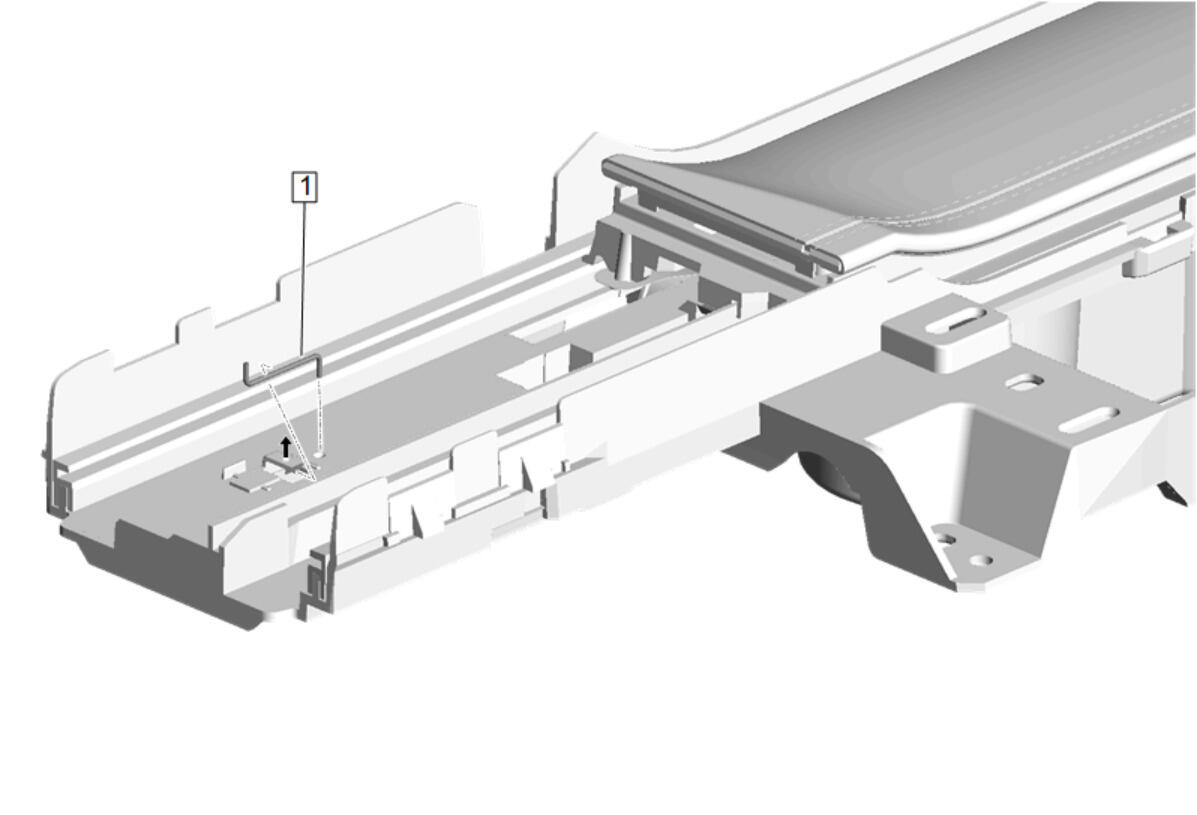

Release the tab to clear the wire latch (1) and remove from the front floor console holder.
Courtesy of GENERAL MOTORS COMPANY

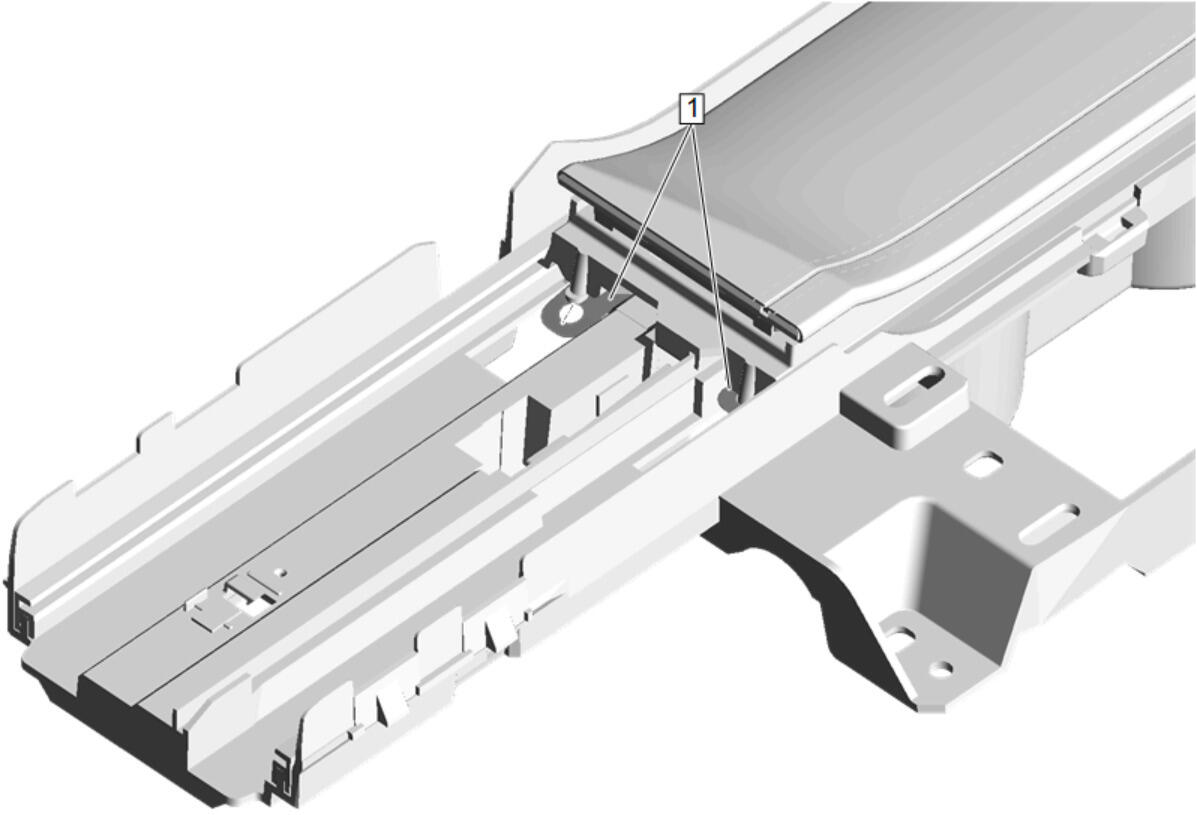

Release the two latch spring (1) from the front floor console cup holder door.
Courtesy of GENERAL MOTORS COMPANY

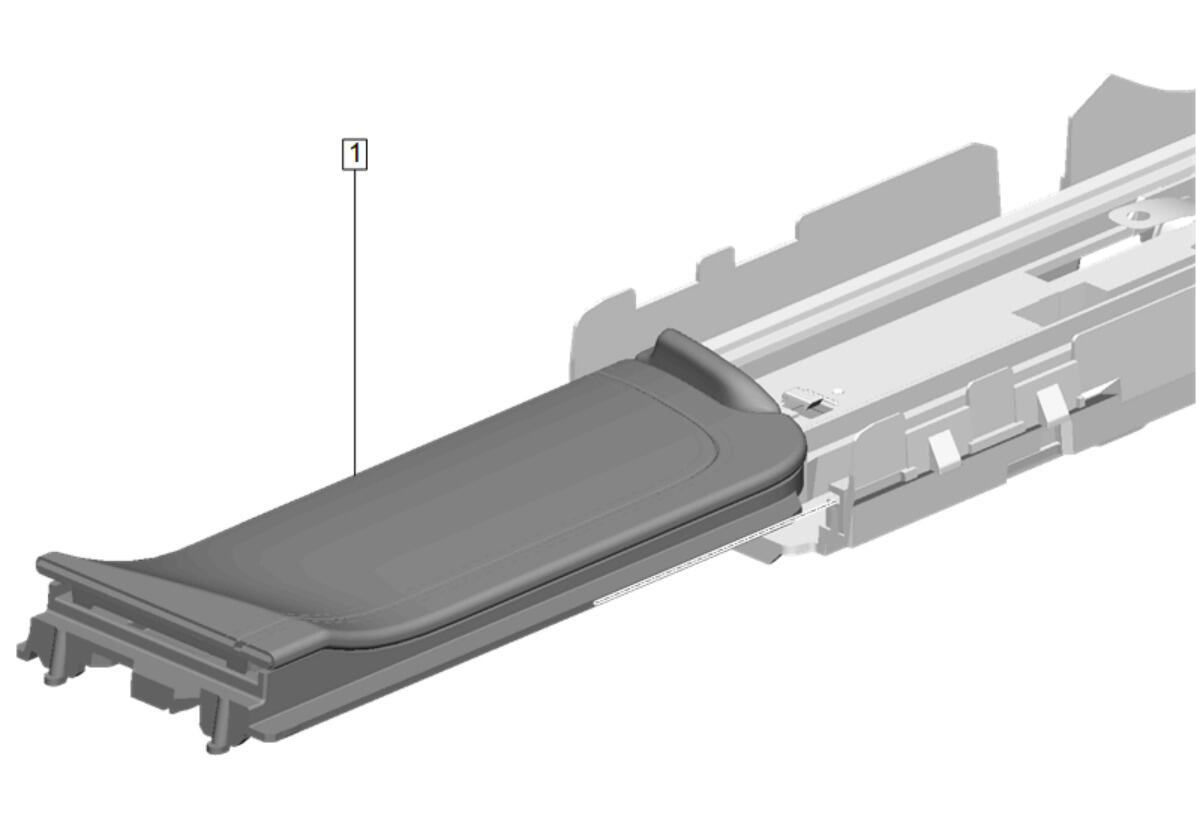

Slide out the front floor console cup holder door (1) from the front floor console holder.
Inspect the components and replace as necessary.
