Removal Procedure

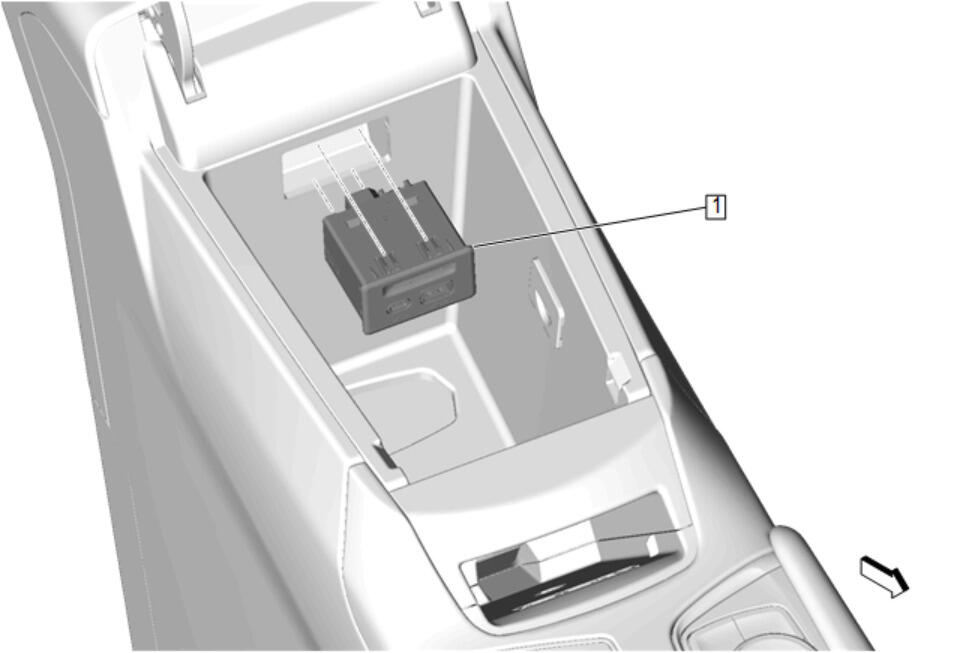

  1. GM5205229Courtesy of GENERAL MOTORS COMPANY

    Multimedia Receptacle (1) - Remove - Multimedia Receptacle Replacement

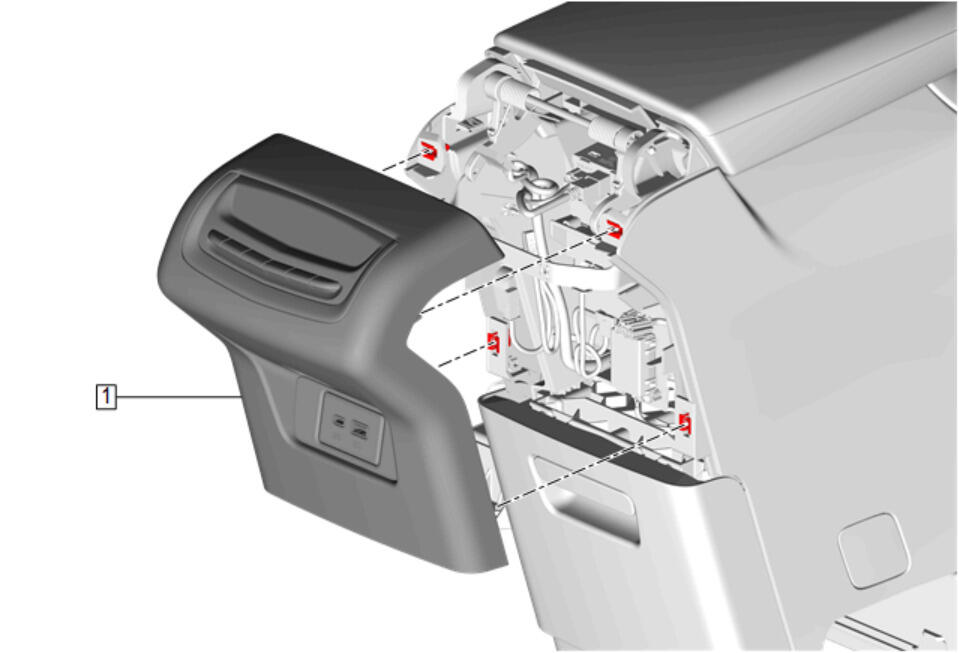

  2. GM5167629Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Rear Trim Panel (1) - Remove - Front Floor Console Rear Trim Panel Replacement

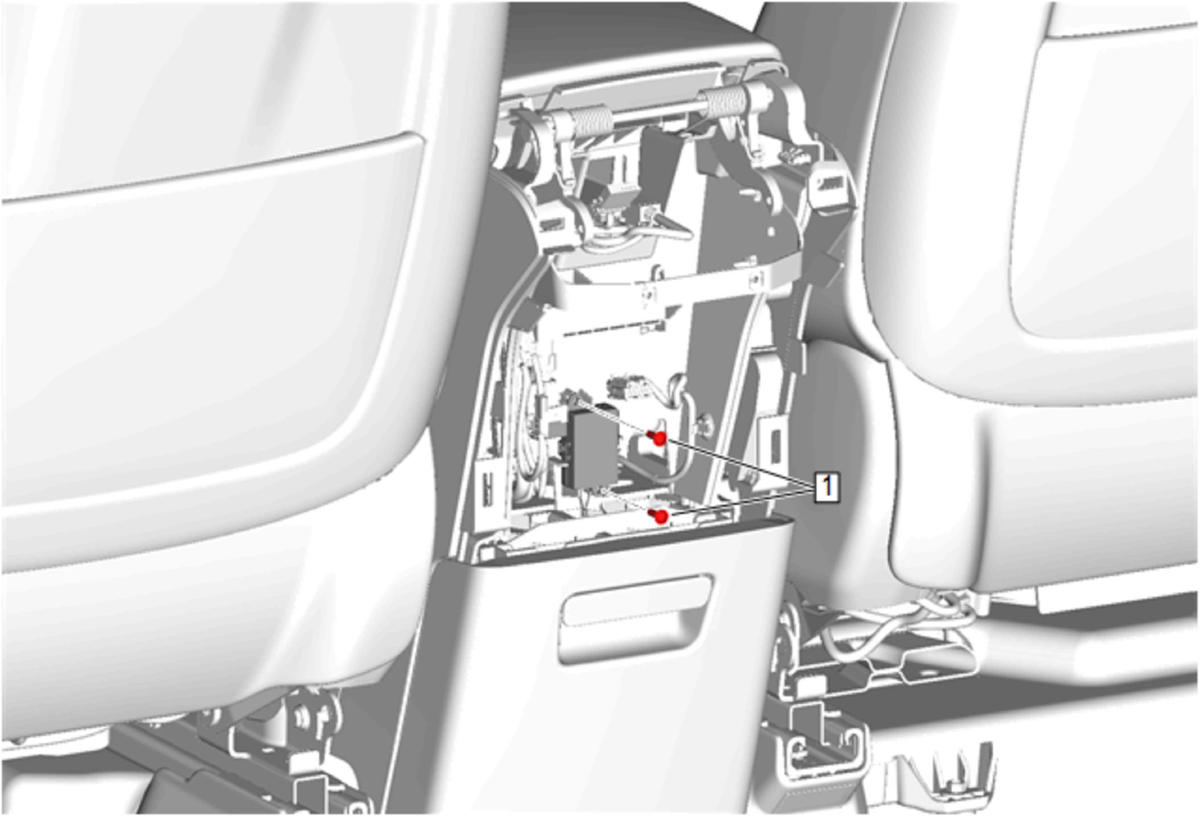

  3. GM5208645Courtesy of GENERAL MOTORS COMPANY

    Theft Deterrent Module Bolt (1) - Remove [ 2x ]

  4. GM5164866Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Trim Plate (1) - Remove - Front Floor Console Trim Plate Replacement

  5. GM5169145Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Compartment Bolt (1) - Remove [ 2x ]

  6. GM5169147Courtesy of GENERAL MOTORS COMPANY

    Use a flat bladed plastic tool to remove.

  7. Front Floor Console Compartment (1) - Remove
  8. Disconnect the electrical connector.
  9. Transfer components as necessary.
