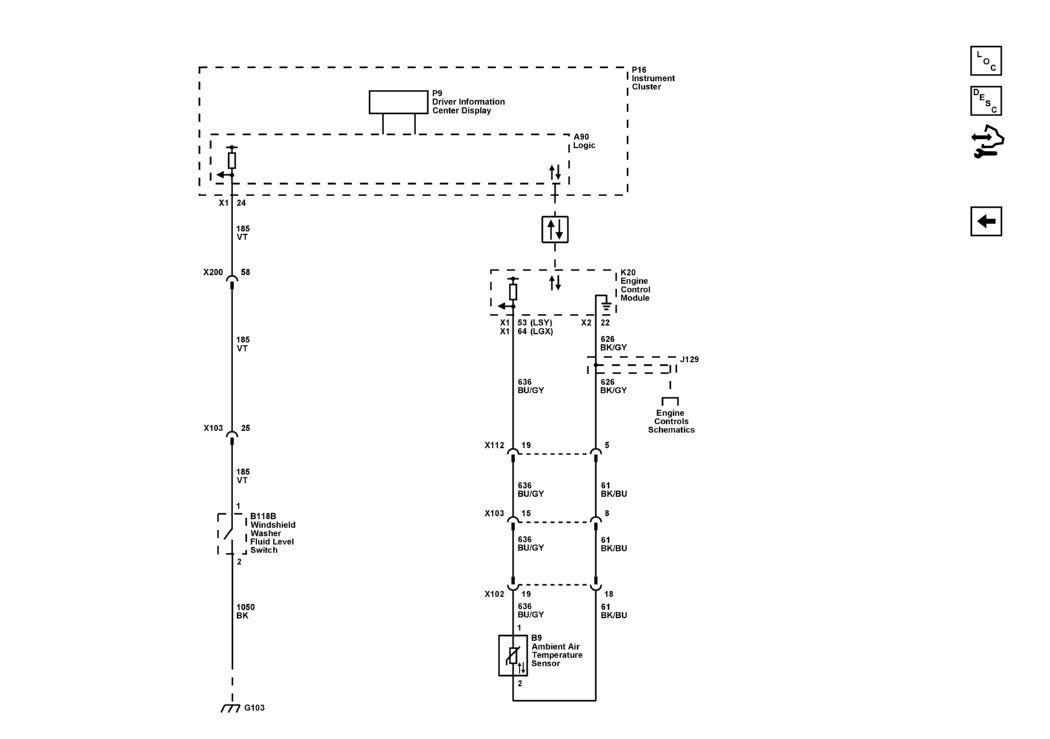

Air Temperature, Driver Information Center, and Compass

GM5494316

Courtesy of GENERAL MOTORS COMPANY
