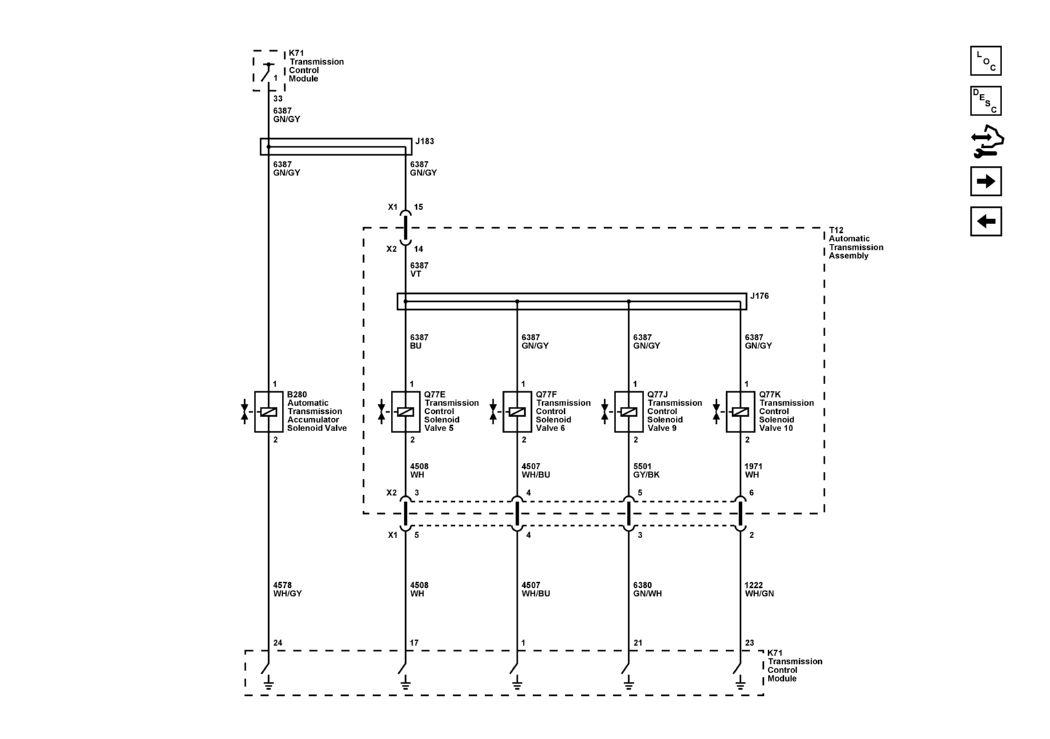

Accumulator Solenoid Valve and Control Solenoid Valves (1 of 2)

GM5462469

Courtesy of GENERAL MOTORS COMPANY
