Auxiliary Heater and Air Conditioning Control Replacement

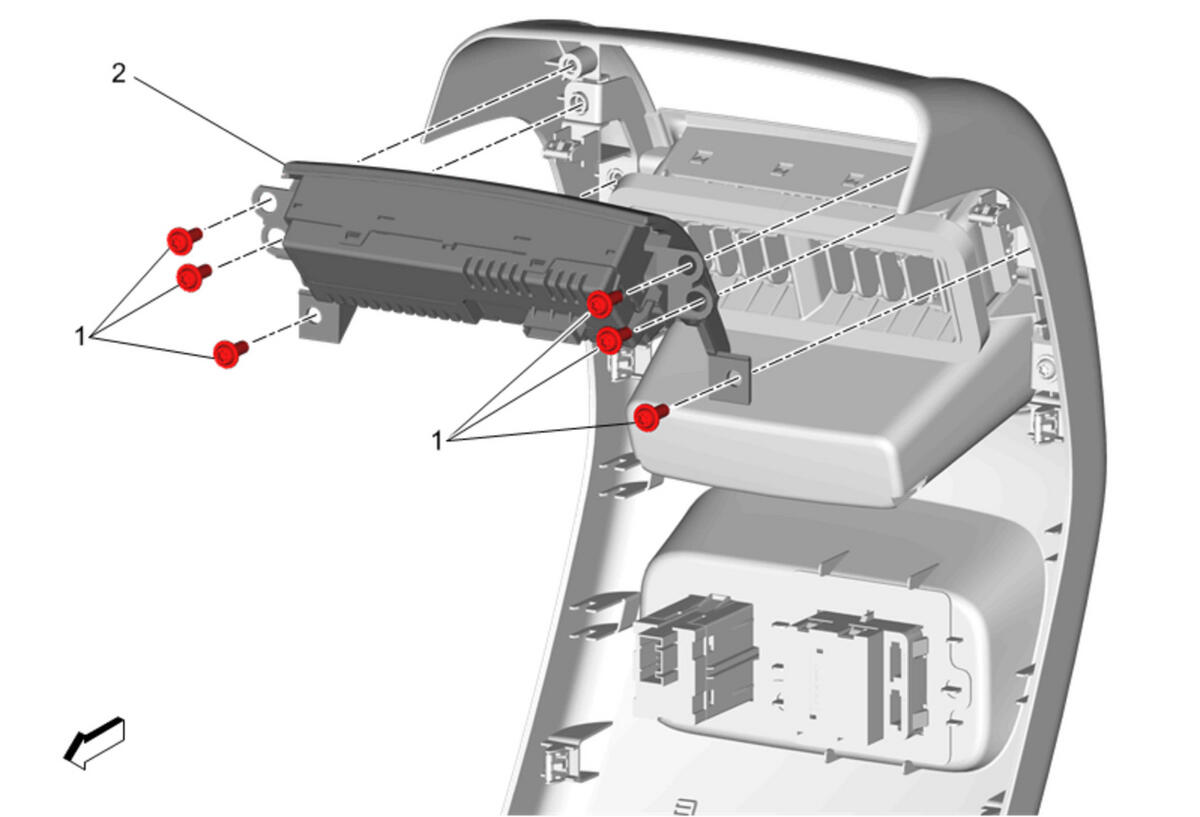

GM4285388Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Front Floor Console Rear Trim Panel Replacement
1 Auxiliary Heater and Air Conditioning Control Bolt [ 6x ]
CAUTION:

Refer to Fastener Caution .


Tighten
2.5 N.m (22 lb/in)
2 Auxiliary Heater and Air Conditioning Control
