Installation Procedure

WARNING: This page is about a different car, the 2023 GMC Sierra 3500 HD and 2023 GMC Sierra 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

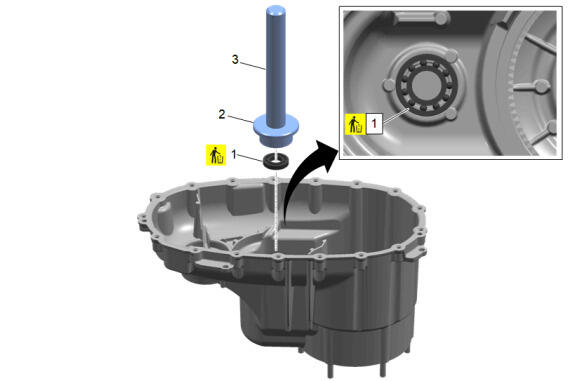

GM6307410Courtesy of GENERAL MOTORS COMPANY
NOTE:

Ensure the printing on the bearing is facing upward.

Press the new transfer case shift cam shaft bearing (1) into the case with a suitable adapter (2) using the J-8092  Driver Handle (3) until the transfer case shift cam shaft bearing (1) bottoms in the front case half.
