Installation Procedure
WARNING: This page is about a different car, the 2023 GMC Sierra 3500 HD and 2023 GMC Sierra 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

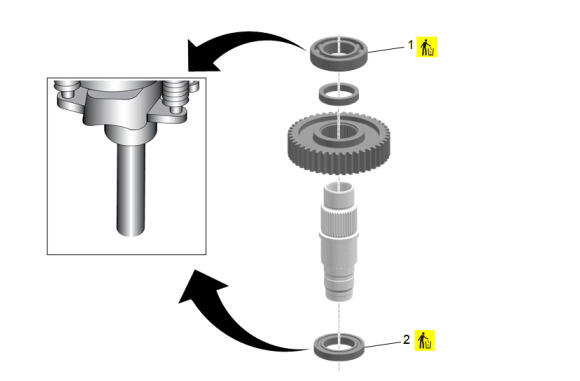

Install the front output shaft drive sprocket if it was removed.
- Using a suitable adapter and an arbor press, install the new transfer case front output shaft rear bearing (1) until the bearing bottoms against the spacer.
- Using a suitable adapter and an arbor press, install the new transfer case front output shaft front bearing (2) until the bearing bottoms on the front output shaft.
