X500 Driver Door Wiring Harness to Body Wiring Harness

WARNING: This page is about a different car, the 2023 GMC Sierra 3500 HD and 2023 GMC Sierra 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY	Courtesy of GENERAL MOTORS COMPANY

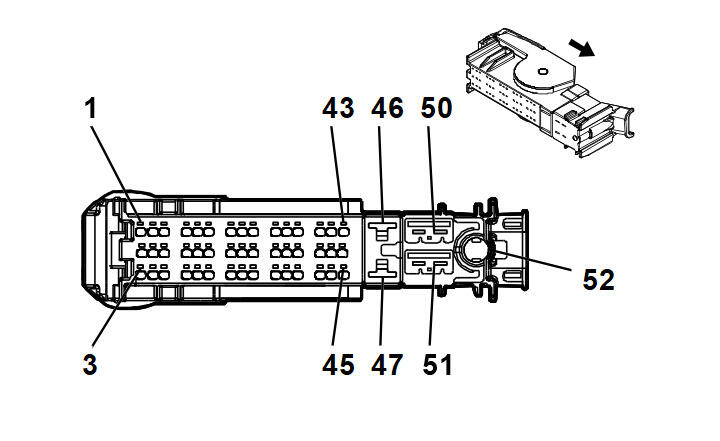

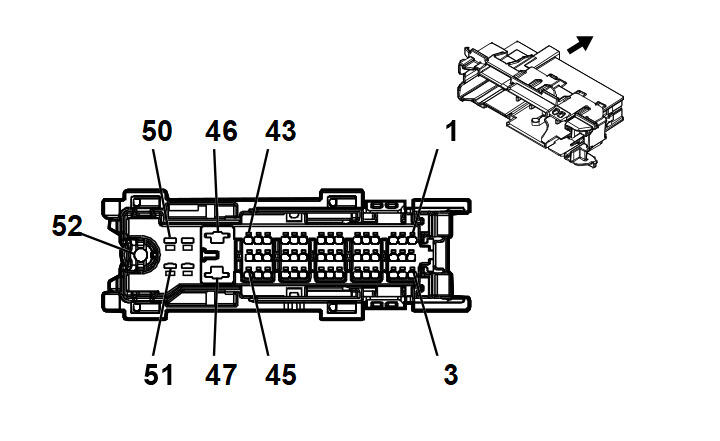

Connector Part Information Harness Type: Driver Door Wiring Harness OEM Connector: 35077349 Service Connector: Service by Harness - See Part Catalog Description: 52-Way F 1.2, 2.8, 6.3, Coaxial Series (BK)	Connector Part Information Harness Type: Body Wiring Harness OEM Connector: 35190453 Service Connector: 13527236 Description: 52-Way M 1.2, 2.8, 6.3, Coaxial Series (BK)

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool
I	Not required	J-35616-16 (L-GN)	No Tool Required
II	Not required	J-35616-42 (RD)	No Tool Required
III	Not required	J-35616-4A (PU)	No Tool Required
IV	Not required	No Tool Required	No Tool Required
V	19301536	J-35616-43 (RD)	J-38125-11A
VI	84616651	J-35616-13 (BU)	J-38125-215A
VII	84888592	J-35616-5 (PU)	J-38125-11A
VIII	Not required	No Tool Required	No Tool Required

Pin	Size	Color	Circuit	Terminal Type ID	Option	Function	Pin	Size	Color	Circuit	Terminal Type ID	Option
1	-	-	-	-	-	Not Occupied	1	-	-	-	-	-
2	0.5	GY/YE	1760	I	-	Left Side Object Detection LED Control	2	0.35	GY/YE	1760	VI	-
3	-	-	-	-	-	Not Occupied	3	-	-	-	-	-
4	0.5	WH/VT	968	I	-	Auxiliary 4 Control	4	0.35	WH/VT	968	VI	-
5	-	-	-	-	-	Not Occupied	5	-	-	-	-	-
6	0.5	YE/VT	3397	I	-	Passenger Outside Rearview Mirror Motor Up [+] Down [-] Control	6	0.5	YE/VT	3397	VI	-
7	0.5	WH	3398	I	-	Passenger Outside Rearview Mirror Motor Common Control	7	0.5	WH	3398	VI	-
8	0.5	GN/BK	3396	I	-	Passenger Outside Rearview Mirror Motor Right [+] Left [-] Control	8	0.5	GN/BK	3396	VI	-
9	0.5	BU	2082	I	-	Puddle Lamp Control	9	0.35	BU	2082	VI	-
10	0.5	BK/BU	5978	I	-	Memory Switch Low Reference	10	0.35	BK/BU	5978	VI	-
11	0.75	WH/BN	3410	I	-	Mirror Outside Rearview Mirror Fold Control	11	0.5	WH/BN	3410	VI	-
12	0.5	WH	615	I	-	Seat Memory Switch Signal 1	12	0.35	WH	615	VI	-
13	0.5	BN/WH	781	I	-	Driver Door Lock Switch Unlock Signal	13	0.35	BN/WH	781	VI	-
14	0.5	BN/YE	2267	I	-	Outside Rearview Mirror Heater Control	14	0.5	BN/YE	2267	VI	-
15	0.75	VT/YE	3409	I	-	Outside Rearview Mirror Motor Unfold Control	15	0.5	VT/YE	3409	VI	-
16	0.5	BU/GN	614	I	-	Seat Memory Switch Set Signal	16	0.35	BU/GN	614	VI	-
17 - 18	-	-	-	-	-	Not Occupied	17 - 18	-	-	-	-	-
19	0.35	WH/YE	7557	I	-	Interior Door Handle Accent Lighting Control	19	0.35	WH/YE	7557	VI	-
20	0.5	GN/WH	3570	I	-	Driver Door Handle Switch Signal	20	0.35	GN/WH	3570	VI	-
21	0.5	WH/YE	3574	I	-	Driver Door Open Switch Signal	21	0.35	WH/YE	3574	VI	-
22	0.5	BU/WH	1314	I	-	Left Front Turn Signal Lamp Control	22	0.35	BU/WH	1314	VI	-
23	0.5	PK	745	I	-	Left Front Door Ajar Switch Signal	23	0.35	PK	745	VI	-
24	-	-	-	-	-	Not Occupied	24	-	-	-	-	-
25	0.75	OG/GN	2132	I	-	Left Front Side Impact Sensor Signal	25	0.35	OG/GN	2132	VI	-
26	0.5	YE/WH	1690	I	-	Mirror Dimming Signal	26	0.35	YE/WH	1690	VI	-
27	0.5	GY/GN	5996	I	-	Driver Outside Rearview Mirror Courtesy Lamp Control	27	0.35	GY/GN	5996	VI	-
28	0.75	BK/OG	6628	I	-	Left Front Side Impact Sensor Low Reference	28	0.35	BK/OG	6628	VI	-
29	0.35	BN/YE	780	I	-	Driver Door Lock Switch Lock Signal	29	0.35	BN/YE	780	VI	-
30	0.5	RD/VT	1940	I	-	Battery Positive Voltage	30	0.35	RD/VT	1940	VI	-
31	0.5	VT/GY	3561	I	-	Driver Door Passive Entry Antenna Low Signal	31	0.5	VT/GY	3561	VI	-
32	0.5	VT	3560	I	-	Driver Door Passive Entry Antenna High Signal	32	0.5	VT	3560	VI	-
33	0.5	BU/VT	1124	I	-	Door Lock Key Switch Unlock Signal	33	0.35	BU/VT	1124	VI	-
34	-	-	-	-	-	Not Occupied	34	-	-	-	-	-
35	0.5	GN/YE	6134	I	-	Body Control Module LIN Bus 3	35	0.35	GN/YE	6134	VI	-
36 - 41	-	-	-	-	-	Not Occupied	36 - 41	-	-	-	-	-
42	0.5	VT/GY	709	I	-	Left Park Lamp Control	42	0.5	VT/GY	709	VI	-
43	0.5	YE	6817	I	-	LED Backlight Dimming Control 1	43	0.35	YE	6817	VI	-
44	0.5	GN/WH	7530	I	-	Driver Seat Adjuster Memory Module LIN Bus 1	44	0.35	GN/WH	7530	VI	-
45	0.5	BK/YE	1691	I	-	Automatic Day/Night Mirror Low Reference	45	0.35	BK/YE	1691	VI	-
46	0.75 3	BK BK	1150 1150	II II	ATH KA6/QT5/A48	Ground Ground	46	3	BK	1150	V	-
47	2.5	RD/BU	1842	II	-	Battery Positive Voltage	47	2.5	RD/BU	1842	V	-
48	0.75	BN/YE	294	III	-	Door Lock Actuator Unlock Control	48	0.75	BN/YE	294	VII	-
49	0.75	GY	5911	III	-	Door Lock Actuator Lock Control 2	49	0.75	GY	5911	VII	-
50	0.75	BN/BU	118	III	-	Left Front Speaker [-] Control 1	50	0.75	BN/BU	118	VII	-
51	0.75	BU	201	III	-	Left Front Speaker 1 [+] Control	51	0.75	BU	201	VII	-
52	0	BK	2628	IV	-	Left Sideview Camera Video Signal [+]	52	0	-	2628	VIII	-
