X401 Rear Object Alarm Sensor Wiring Harness to Chassis Wiring Harness
WARNING: This page is about a different car, the 2023 GMC Sierra 3500 HD and 2023 GMC Sierra 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|
 Courtesy of GENERAL MOTORS COMPANY
|

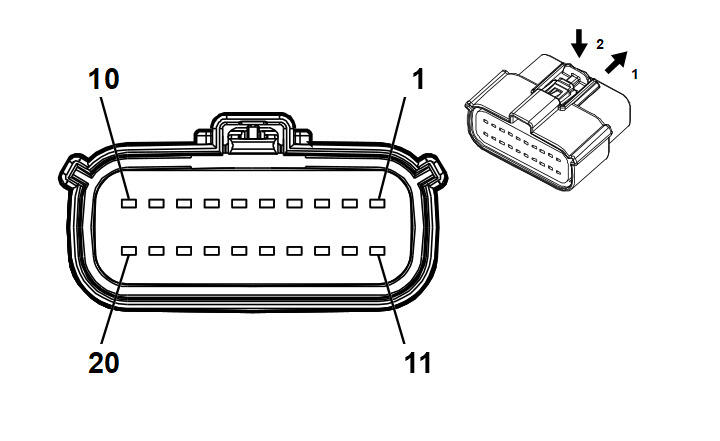

Connector Part Information
- Harness Type: Rear Object Alarm Sensor Wiring Harness
- OEM Connector: 35104105
- Service Connector: Service by Harness - See Part Catalog
- Description: 20-Way F 1.5 MX Series, Sealed (BK)
|
Connector Part Information
- Harness Type: Chassis Wiring Harness
- OEM Connector: 35189198
- Service Connector: 19351705
- Description: 20-Way M 1.5 MX Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-2A (GY) |
No Tool Required |
| II |
86800300 |
J-35616-3 (GY) |
J-38125-217 |
| Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
Function |
Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
| 1 |
0.5 |
GN/YE |
6846 |
I |
- |
Rear License Plate Lamp Control |
1 |
0.5 |
GN/YE |
6846 |
II |
- |
| 2 - 3 |
- |
- |
- |
- |
- |
Not Occupied |
2 - 3 |
- |
- |
- |
- |
- |
| 4 |
0.5 |
BK/WH |
1751 |
I |
- |
Signal Ground |
4 |
0.75 |
BK/WH |
1751 |
II |
- |
| 5 |
- |
- |
- |
- |
- |
Not Occupied |
5 |
- |
- |
- |
- |
- |
| 6 |
0.5 |
BK |
1450 |
I |
- |
Ground |
6 |
1 |
BK |
1450 |
II |
- |
| 7 |
0.35 |
GY/YE |
1760 |
I |
- |
Left Side Object Detection LED Control |
7 |
0.5 |
GY/YE |
1760 |
II |
- |
| 8 |
0.35 |
GY |
1761 |
I |
- |
Right Side Object Detection LED Control |
8 |
0.5 |
GY |
1761 |
II |
- |
| 9 |
0.5 |
BN/WH |
2374 |
I |
- |
Object Sensor Voltage Reference |
9 |
0.5 |
BN/WH |
2374 |
II |
- |
| 10 |
0.5 |
YE |
2375 |
I |
- |
Left Rear Outer Parking Assist Sensor Signal |
10 |
0.5 |
YE |
2375 |
II |
- |
| 11 |
0.5 |
YE/BU |
2376 |
I |
- |
Left Rear Middle Parking Assist Sensor Signal |
11 |
0.5 |
YE/BU |
2376 |
II |
- |
| 12 |
0.5 |
YE/WH |
2377 |
I |
- |
Right Rear Middle Parking Assist Sensor Signal |
12 |
0.5 |
YE/WH |
2377 |
II |
- |
| 13 |
- |
- |
- |
- |
- |
Not Occupied |
13 |
- |
- |
- |
- |
- |
| 14 |
0.5 |
RD/GN |
1840 |
I |
- |
Battery Positive Voltage |
14 |
0.5 |
RD/GN |
1840 |
II |
- |
| 15 |
0.5 |
YE/VT |
2378 |
I |
- |
Right Rear Outer Parking Assist Sensor Signal |
15 |
0.5 |
YE/VT |
2378 |
II |
- |
| 16 |
0.5 |
BK/GY |
2379 |
I |
- |
Object Sensor Low Reference |
16 |
0.5 |
BK/GY |
2379 |
II |
- |
| 17 |
- |
- |
- |
- |
- |
Not Occupied |
17 |
- |
- |
- |
- |
- |
| 18 |
0.5 |
GN |
5060 |
I |
- |
Low Speed GMLAN Serial Data |
18 |
0.5 |
GN |
5060 |
II |
- |
| 19 - 20 |
- |
- |
- |
- |
- |
Not Occupied |
19 - 20 |
- |
- |
- |
- |
- |
