X380 Inside Rearview Mirror Wiring Harness to Dome Lamp Wiring Harness (9L7-UVO)
WARNING: This page is about a different car, the 2023 GMC Sierra 3500 HD and 2023 GMC Sierra 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|
 Courtesy of GENERAL MOTORS COMPANY
|

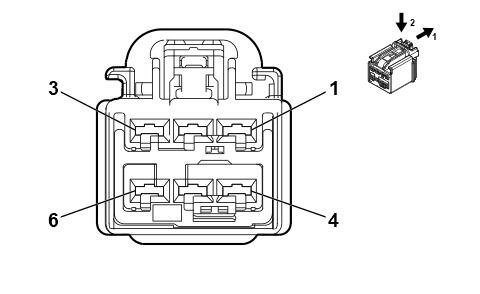

Connector Part Information
- Harness Type: Inside Rearview Mirror Wiring Harness
- OEM Connector: 35360831
- Service Connector: Service by Harness - See Part Catalog
- Description: 6-Way F 2.8 YESC Series (GY)
|
Connector Part Information
- Harness Type: Dome Lamp Wiring Harness
- OEM Connector: 10847012
- Service Connector: Service by Harness - See Part Catalog
- Description: 6-Way M Kaizen Series (L-GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-4A (PU) |
No Tool Required |
| II |
Not required |
J-35616-5 (PU) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
Function |
Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
| 1 |
0.35 |
WH/VT |
1430 |
I |
- |
Exterior Courtesy Lamp Control |
1 |
0.35 |
WH/VT |
1430 |
II |
- |
| 2 |
0.35 |
VT/WH |
5065 |
I |
- |
Stop Lamp Relay Coil Control |
2 |
0.5 |
VT/WH |
5065 |
II |
- |
| 3 |
0.35 |
BK |
1050 |
I |
- |
Ground |
3 |
0.35 |
BK |
1050 |
II |
- |
| 4 |
2.5 |
GN/BU |
5989 |
I |
- |
Emergency Vehicle Lamp Relay Control |
4 |
2.5 |
GN/BU |
5989 |
II |
- |
| 5 |
2.5 |
BK |
1050 |
I |
- |
Ground |
5 |
2.5 |
BK |
1050 |
II |
- |
| 6 |
- |
- |
- |
- |
- |
Not Occupied |
6 |
- |
- |
- |
- |
- |
