X132 Engine Wiring Harness to Active Air Grille Shutter Jumper Wiring Harness

WARNING: This page is about a different car, the 2023 GMC Sierra 3500 HD and 2023 GMC Sierra 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY	Courtesy of GENERAL MOTORS COMPANY

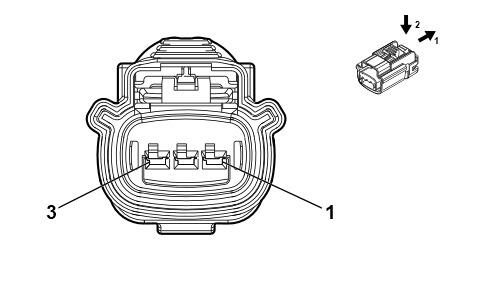

Connector Part Information Harness Type: Engine Wiring Harness OEM Connector: 15514762 Service Connector: Service by Harness - See Part Catalog Description: 3-Way F 1.5 YESC Series, Sealed (BK)	Connector Part Information Harness Type: Active Air Grille Shutter Jumper Wiring Harness OEM Connector: Not Available Service Connector: Service by Harness - See Part Catalog Description: 3-Way M (BK)

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool
I	Not required	J-35616-14 (GN)	No Tool Required
II	Not required	J-35616-2A (GY)	No Tool Required
III	Not required	No Tool Required	No Tool Required

Pin	Size	Color	Circuit	Terminal Type ID	Option	Function	Pin	Size	Color	Circuit	Terminal Type ID	Option
1	0.5	VT/BU	5705	II	-	Powertrain Main Relay Control	1	0.5	VT/BU	5705	III	-
2	0.5	GN/VT	4621	II	-	Engine Control Module LIN Bus 1	2	0.5	GN/VT	4621	III	-
3	1.5 1	BK BK	4450 4450	I II	L5P L8T	Ground Ground	3	1.5 1	BK BK	4450 4450	III III	L5P L8T
