Automatic Transmission Fluid Pan Installation
WARNING: This page is about a different car, the 2023 GMC Sierra 3500 HD and 2023 GMC Sierra 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

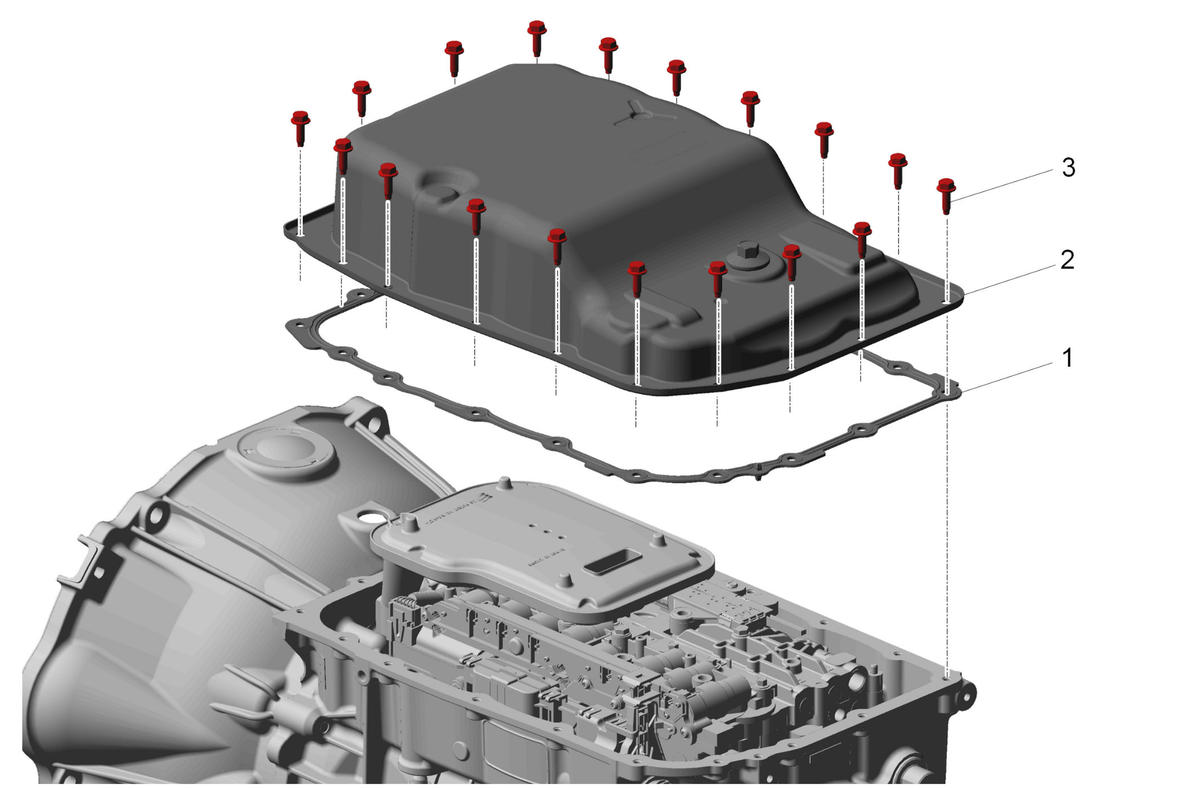

Inspect the automatic transmission fluid pan gasket (1) to determine if it may be reused.
- Automatic Transmission Fluid Pan Gasket (1) - Install
- Automatic Transmission Fluid Pan (2) - Install
- Automatic Transmission Fluid Pan Bolt (3) - Install and tighten in sequence [18x] - Fastener Specifications
CAUTION:
Refer to Fastener Caution
