Installation Procedure

WARNING: This page is about a different car, the 2023 GMC Sierra 3500 HD and 2023 GMC Sierra 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

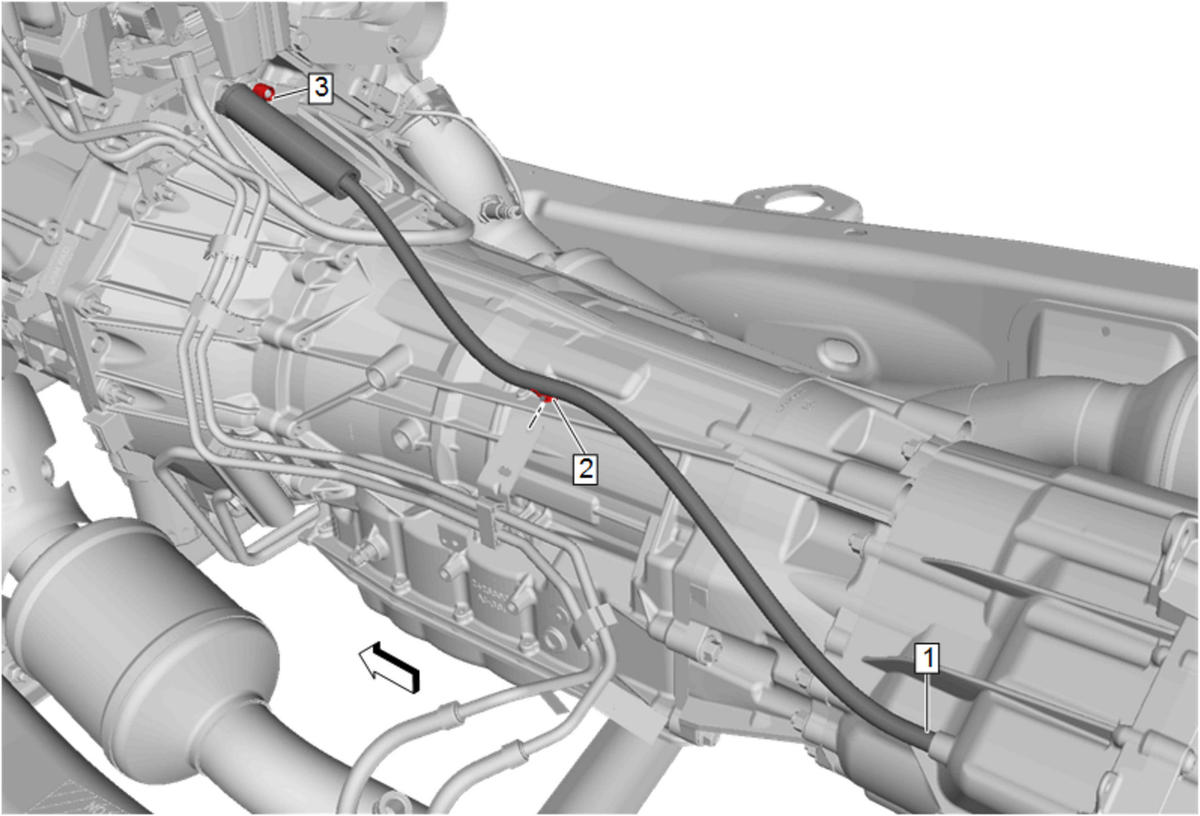

  1. GM5238173Courtesy of GENERAL MOTORS COMPANY

    Transfer Case Vent Hose (1) - Install

  2. Transfer Case Vent Hose Clip (3) - Install
  3. Connect the transfer case vent hose retainer (2).
  4. Connect the transfer case vent hose (1) to the transfer case.
  5. GM5233270Courtesy of GENERAL MOTORS COMPANY

    Front Wheelhouse Liner-Right Side (3) - Install - Front Wheelhouse Liner Replacement
