Installation Procedure
WARNING: This page is about a different car, the 2023 GMC Sierra 3500 HD and 2023 GMC Sierra 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
Clean the mating surface as necessary.

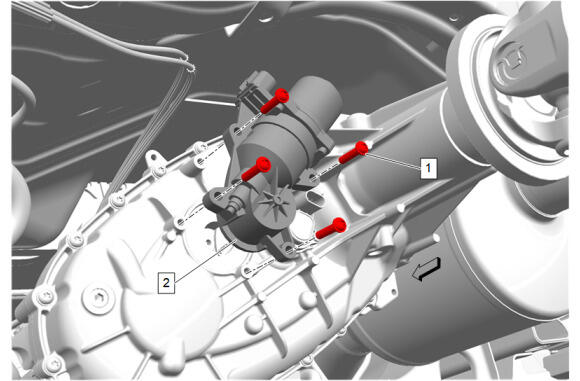

- Transfer Case Four Wheel Drive Actuator (2) - Install
- Transfer Case Two/Four Wheel Drive Actuator Sensor Bolt (1) - Install and tighten [4x] - Fastener Specifications
- Connect the transfer case four wheel drive actuator electrical connector.
- Install the negative battery cable to the battery. Battery Negative Cable Disconnection and Connection (without K4B)Battery Negative Cable Disconnection and Connection (with K4B)
- Perform the transfer case range actuator learn. Transfer Case Range Actuator Learn
- Start the vehicle and shift the transfer case through all modes and ranges to verify correct operation.
CAUTION:
Refer to Fastener Caution .
