Removal Procedure

WARNING: This page is about a different car, the 2023 GMC Sierra 3500 HD and 2023 GMC Sierra 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
  1. Start vehicle and shift the transfer case to 2WD/2High.
  2. Turn the vehicle off.
  3. Disconnect the battery negative cable. Battery Negative Cable Disconnection and Connection (without K4B)Battery Negative Cable Disconnection and Connection (with K4B)
  4. Raise and support the vehicle. Lifting and Jacking the Vehicle
  5. GM5637173Courtesy of GENERAL MOTORS COMPANY

    Disconnect the transfer case two/four wheel drive actuator position sensor electrical connector (2).

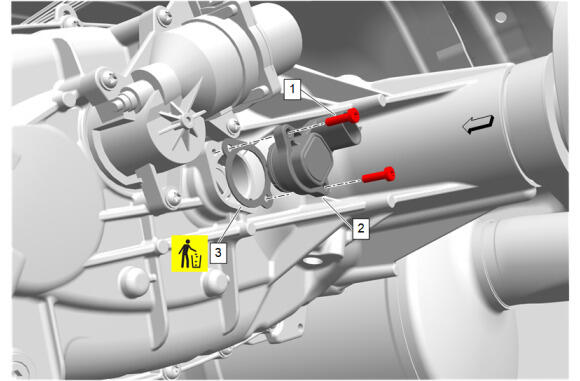

  6. GM5813313Courtesy of GENERAL MOTORS COMPANY

    Transfer Case Two/Four Wheel Drive Actuator Sensor Bolt (1) - Remove [2x]

  7. Transfer Case Two/Four Wheel Drive Actuator Position Sensor (2) - Remove
  8. Transfer Case Two/Four Wheel Drive Actuator Position Sensor Gasket (3) - Remove and DISCARD
  9. Clean the mating surface as necessary.
