Removal Procedure

WARNING: This page is about a different car, the 2023 GMC Sierra 3500 HD and 2023 GMC Sierra 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

Start vehicle and shift the transfer case to 2WD/2High.
Turn the vehicle off.
Remove the negative battery cable from the battery. Battery Negative Cable Disconnection and Connection (without K4B)Battery Negative Cable Disconnection and Connection (with K4B)
Courtesy of GENERAL MOTORS COMPANY

Drain the fluid from the transfer case. Transfer Case Fluid Replacement
Courtesy of GENERAL MOTORS COMPANY

Disconnect the transfer case two/four wheel drive actuator electrical connector (1).
Disconnect the transfer case two/four wheel drive actuator position sensor electrical connector (2).
Disconnect the wiring harness retainers from the transfer case and position the wiring harness out of the way.
Courtesy of GENERAL MOTORS COMPANY

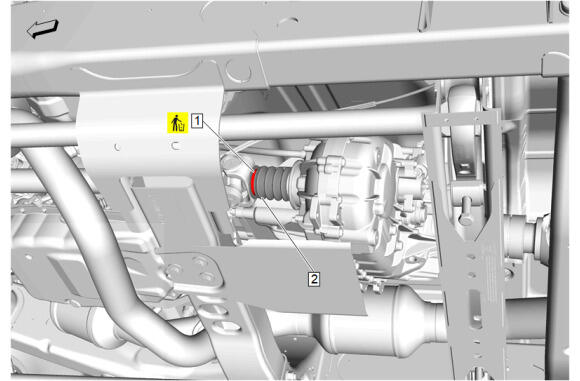

Front Axle Propeller Shaft Slip Yoke Boot Clamp (1) @Front Axle Propeller Shaft - Remove and DISCARD
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
When removing the propeller shaft, do not attempt to remove the shaft by pounding on the yoke ears or using a tool between the yoke and the universal joint. If the propeller shaft is removed by using such means, this may lead to premature failure of the joint.

Mark a reference point between the front axle propeller shaft and the front axle drive pinion flange.
Front Axle Propeller Shaft Bolt (2) - Remove [4x]
Front Axle Propeller Shaft Retainer (1) - Remove [2x]
Courtesy of GENERAL MOTORS COMPANY

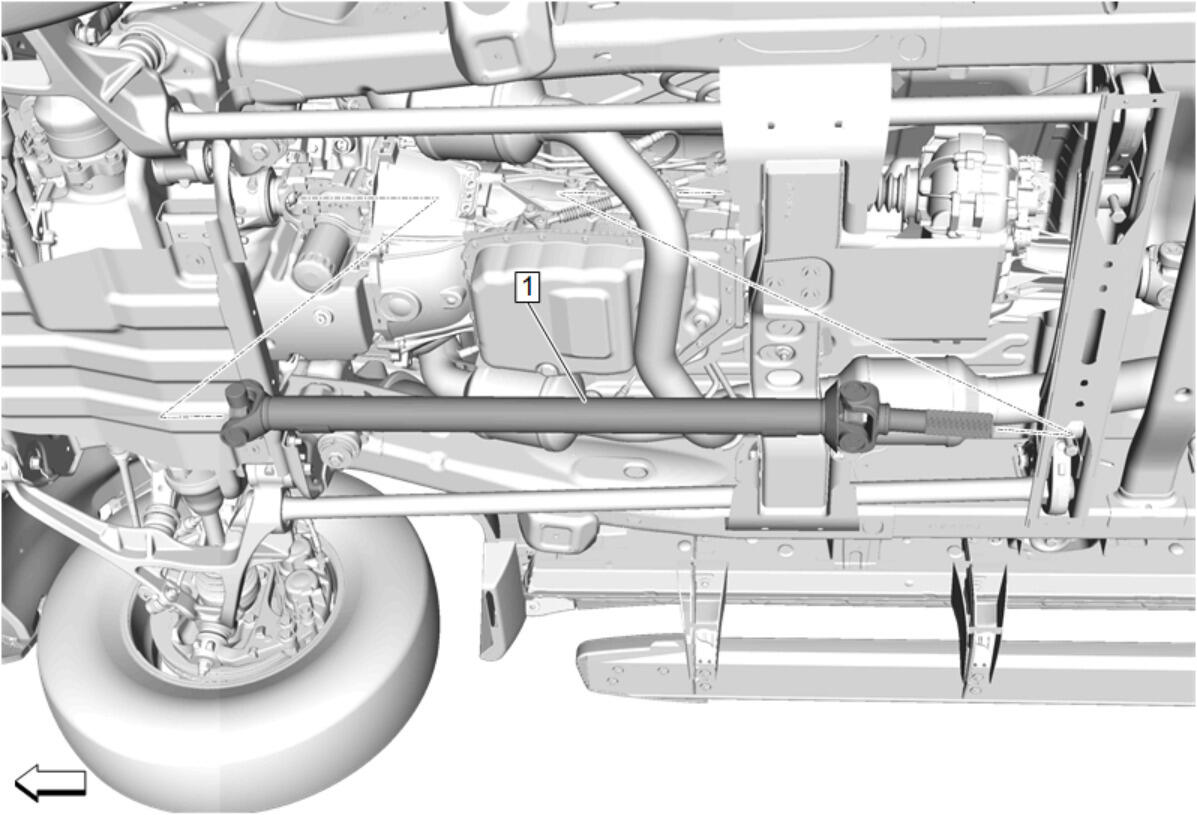

Front Axle Propeller Shaft (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

Front Axle Propeller Shaft Slip Yoke Boot Clamp (2) - Remove and DISCARD
Front Axle Propeller Shaft Slip Yoke Boot (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

Disconnect the vent hose (1) from the transfer case.
Courtesy of GENERAL MOTORS COMPANY

Mark the relationship of the propeller shaft (2) to the rear wheel drive shaft flange.
Rear Propeller Shaft Bolt (1) - Remove [4x]
Courtesy of GENERAL MOTORS COMPANY

Propeller Shaft (1) - Remove
Support the transmission with a suitable jack.
Courtesy of GENERAL MOTORS COMPANY

Transmission Mount Nut (1) - Remove [2x]
Courtesy of GENERAL MOTORS COMPANY

Transmission Support Crossmember Nut (2) - Remove [4x]
Transmission Support Crossmember Bolt (1) - Remove [4x]
Courtesy of GENERAL MOTORS COMPANY

Transmission Support Crossmember (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

Transmission Mount Bolt (2) - Remove and DISCARD [2x]
Transmission Mount Heat Shield (1) - Remove
Transmission Mount (3) - Remove and DISCARD
Using a suitable transmission jack, support the transfer case.
Using suitable straps or chains, secure the transfer case to the transmission jack.
Courtesy of GENERAL MOTORS COMPANY

Transfer Case Nut (1) - Remove [8x]
Lower the transfer case (2) out of the vehicle.
Transfer Case Adapter Gasket (3) - Remove and DISCARD
