Installation Procedure

WARNING: This page is about a different car, the 2023 GMC Sierra 3500 HD and 2023 GMC Sierra 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

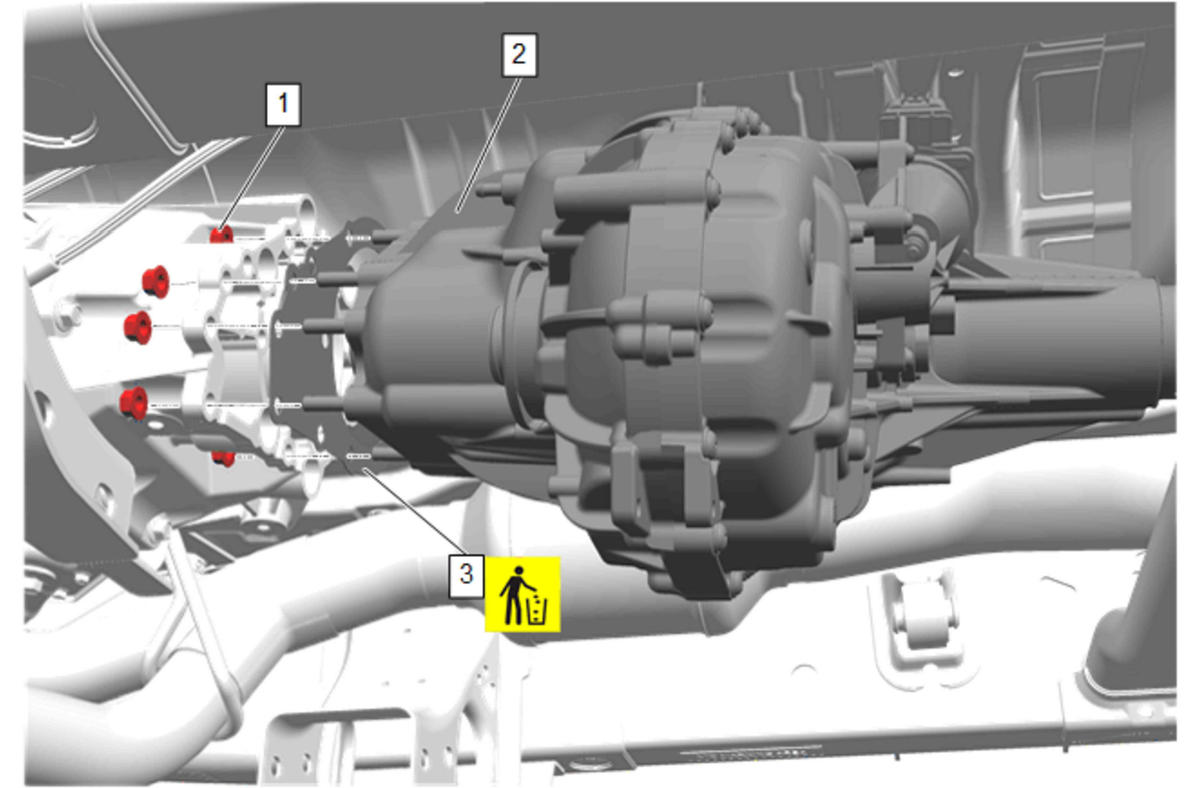

  1. GM5921885Courtesy of GENERAL MOTORS COMPANY

    Transfer Case Adapter Gasket (3) - Install NEW

  2. Transfer Case (2) - Install
  3. CAUTION:

    Refer to Fastener Caution .

  4. Transfer Case Nut (1) - Install and tighten [8x] - Fastener Specifications

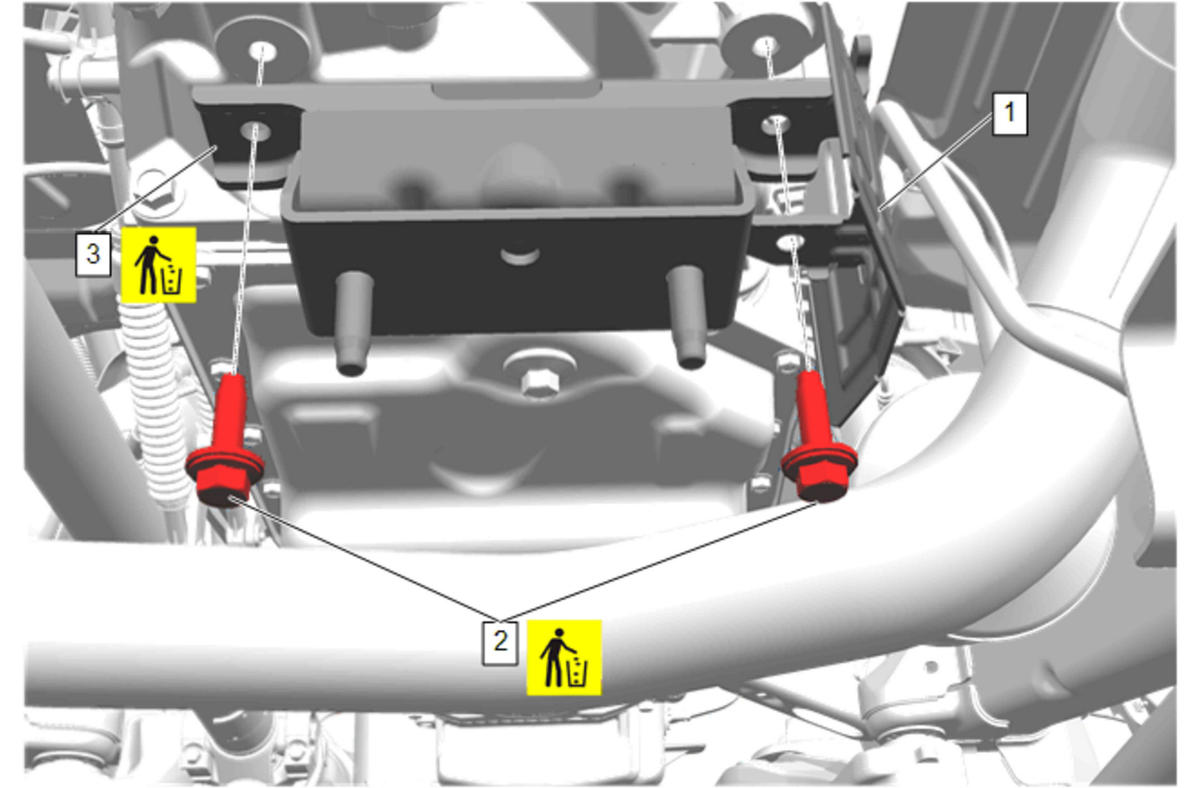

  5. GM5793501Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    This vehicle is equipped with torque-to-yield or single use fasteners. Install a NEW torque-to-yield or single use fastener when installing this component. Failure to replace the torque-to-yield or single use fastener could cause damage to the vehicle or component.

    Transmission Mount (3) - Install NEW

  6. Transmission Mount Heat Shield (1) - Install
  7. If NEW threaded components are being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded components are reused, prepare the threaded components using the following steps:
    1. Remove any loose cured adhesive from the external threads of the components using a lint free cloth.
    2. Thread the cleaned components into the internal mating threads and remove to loosen trapped cured adhesive.
    3. Apply thread locking adhesive to the external threads of the components. Adhesives, Fluids, Lubricants, and Sealers
    4. Ensure there are no gaps in the thread locking adhesive once applied to the component.
  8. Transmission Mount Bolt (2) - Install NEW and tighten [2X] - Fastener Specifications

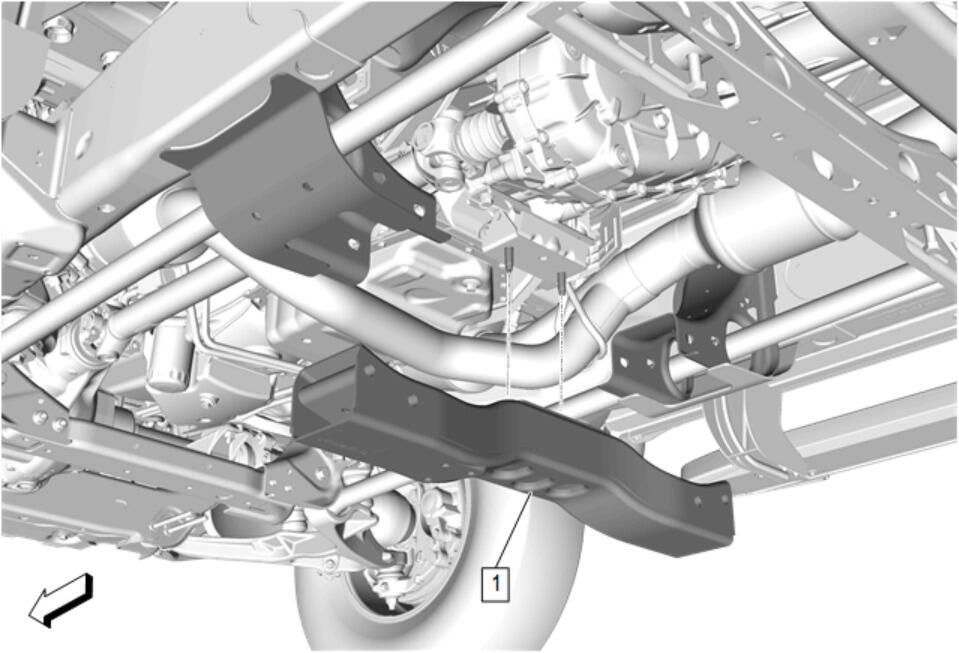

  9. GM5227165Courtesy of GENERAL MOTORS COMPANY

    Transmission Support Crossmember (1) - Install

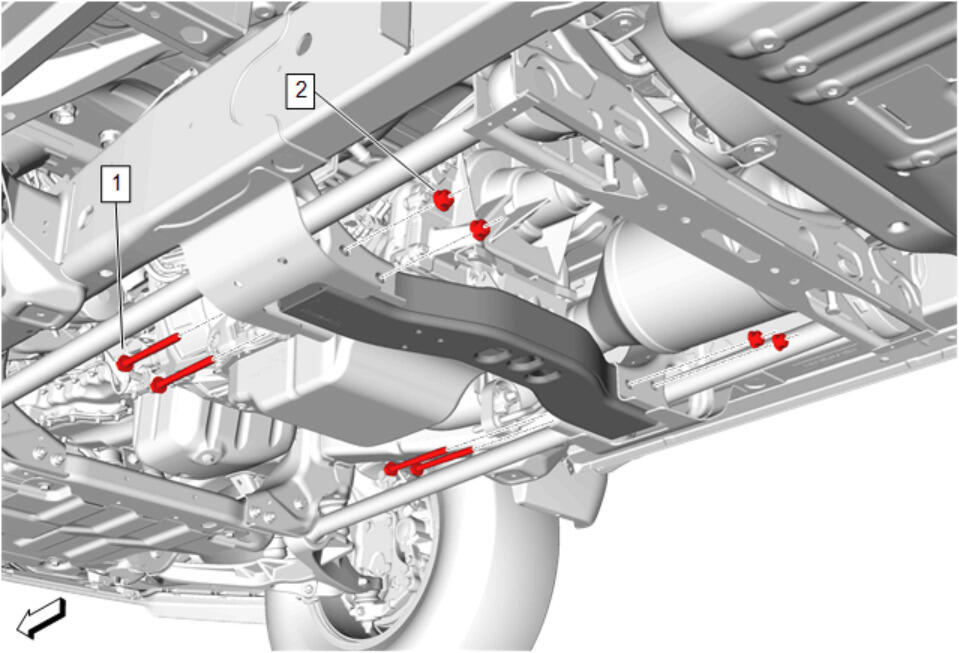

  10. GM5237949Courtesy of GENERAL MOTORS COMPANY

    Transmission Support Crossmember Bolt (1) - Install [4x]

  11. Transmission Support Crossmember Nut (2) - Install and tighten [4x] - Fastener Specifications

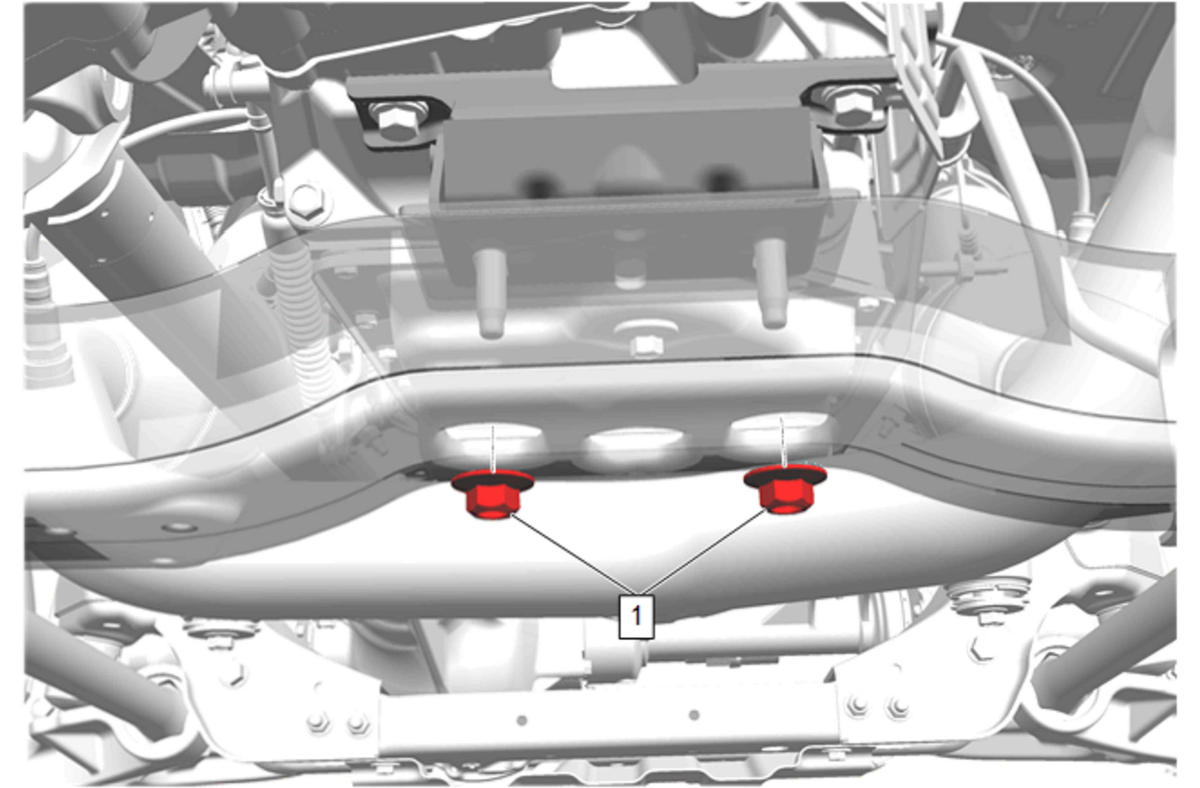

  12. GM5683198Courtesy of GENERAL MOTORS COMPANY

    Transmission Mount Nut (1) - Install and tighten [2x] - Fastener Specifications

  13. Remove the transmission jack.
  14. Remove the transmission jack from the transfer case.

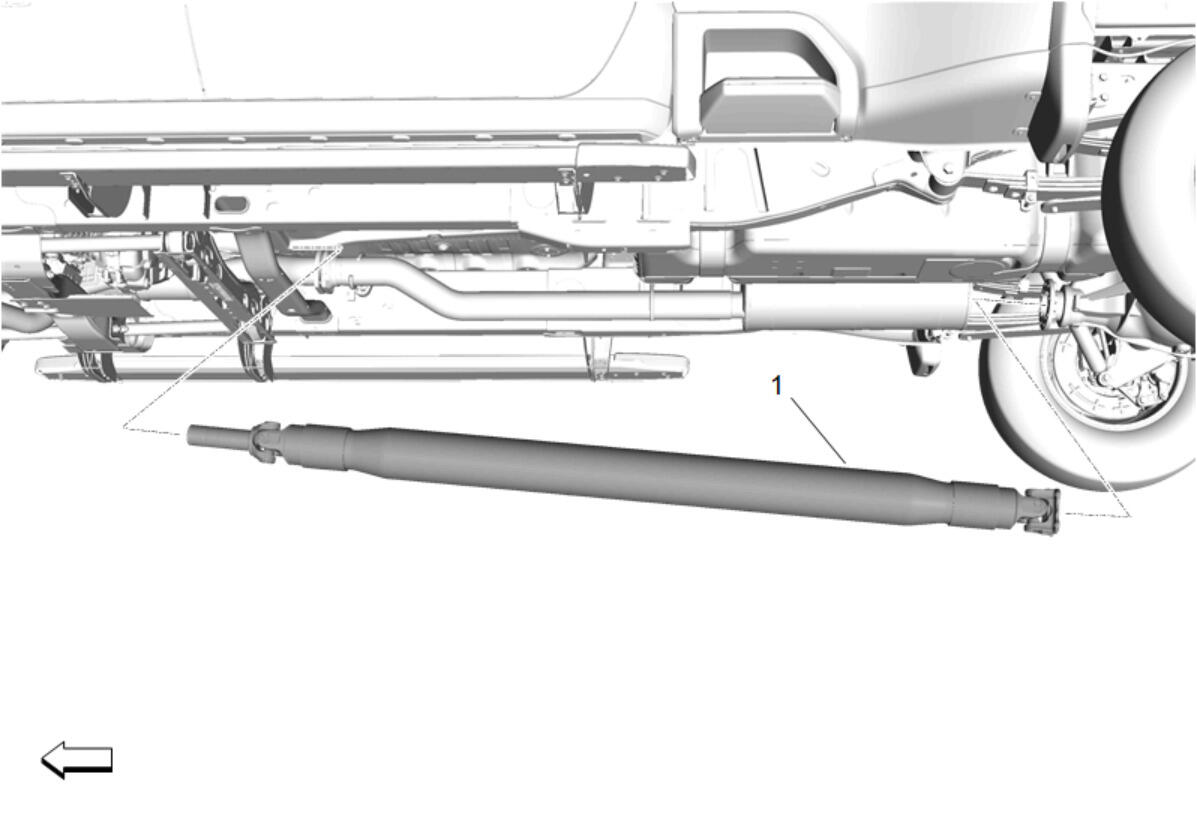

  15. GM5246259Courtesy of GENERAL MOTORS COMPANY

    Propeller Shaft (1) - Install

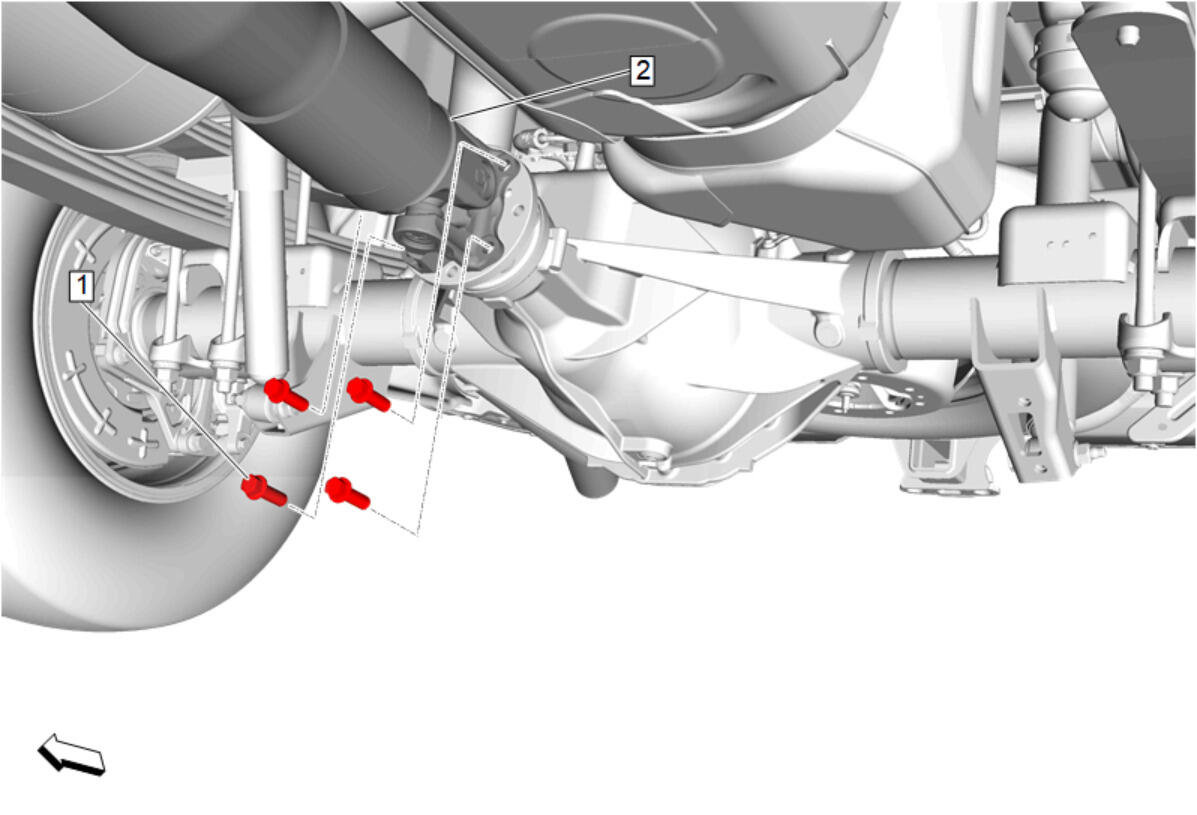

  16. GM5246256Courtesy of GENERAL MOTORS COMPANY

    Align the reference marks made between the rear wheel drive shaft flange and the propeller shaft (2).

  17. If NEW threaded components are being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded components are reused, prepare the threaded components using the following steps:
    1. Remove any loose cured adhesive from the external threads of the components using a lint free cloth.
    2. Thread the cleaned components into the internal mating threads and remove to loosen trapped cured adhesive.
    3. Apply thread locking adhesive to the external threads of the components. Adhesives, Fluids, Lubricants, and Sealers
    4. Ensure there are no gaps in the thread locking adhesive once applied to the component.
  18. Install the 4 rear propeller shaft bolts (1) and tighten in a crisscross pattern. Fastener Specifications

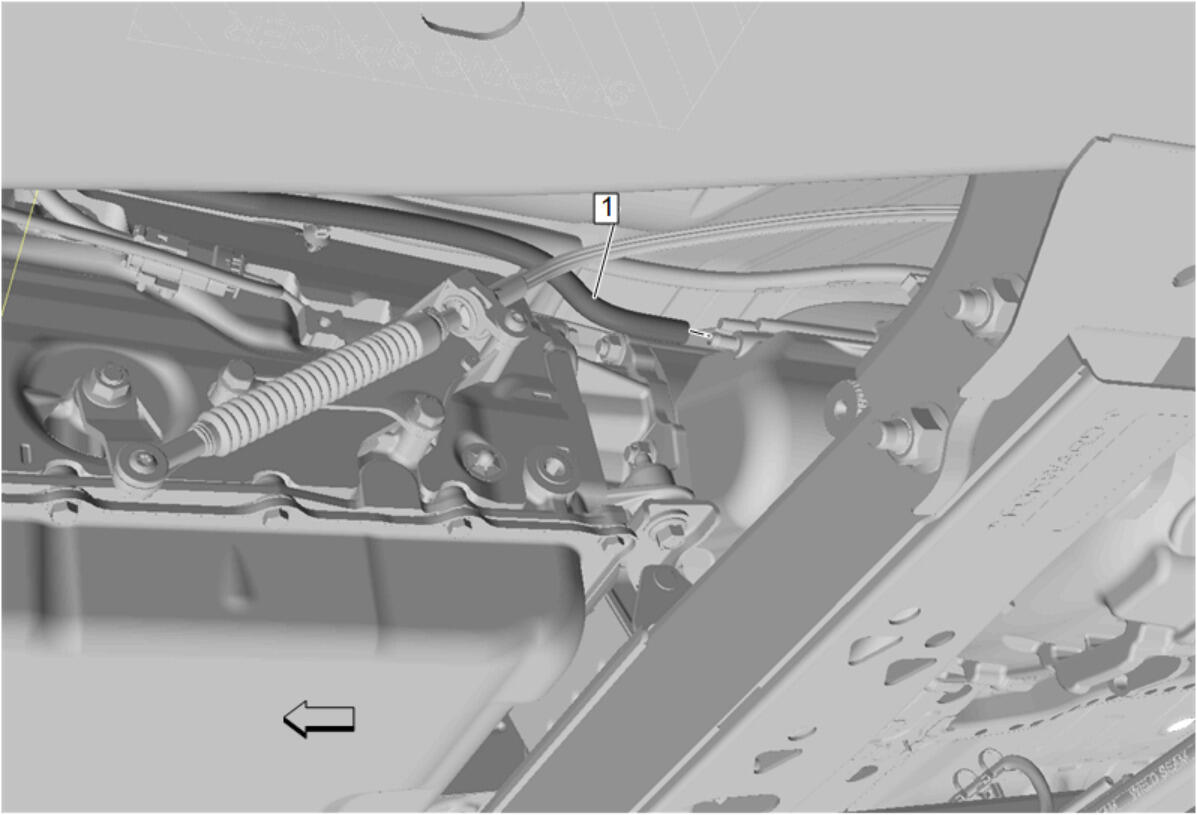

  19. GM5004152Courtesy of GENERAL MOTORS COMPANY

    Connect the vent hose (1) to the transfer case.

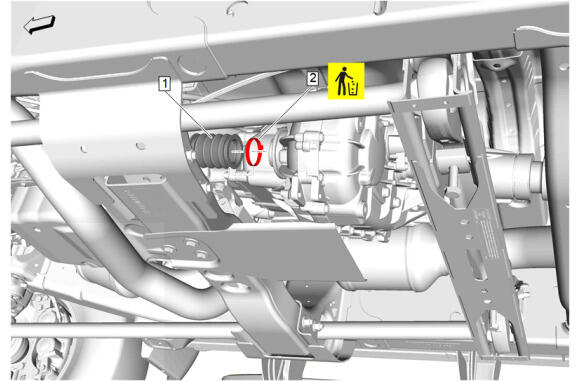

  20. GM5786866Courtesy of GENERAL MOTORS COMPANY

    Loosely install a NEW front axle propeller shaft slip yoke boot clamp (2) to the front axle propeller shaft slip yoke boot (1) groove.

  21. Front Axle Propeller Shaft Slip Yoke Boot (1) - Install

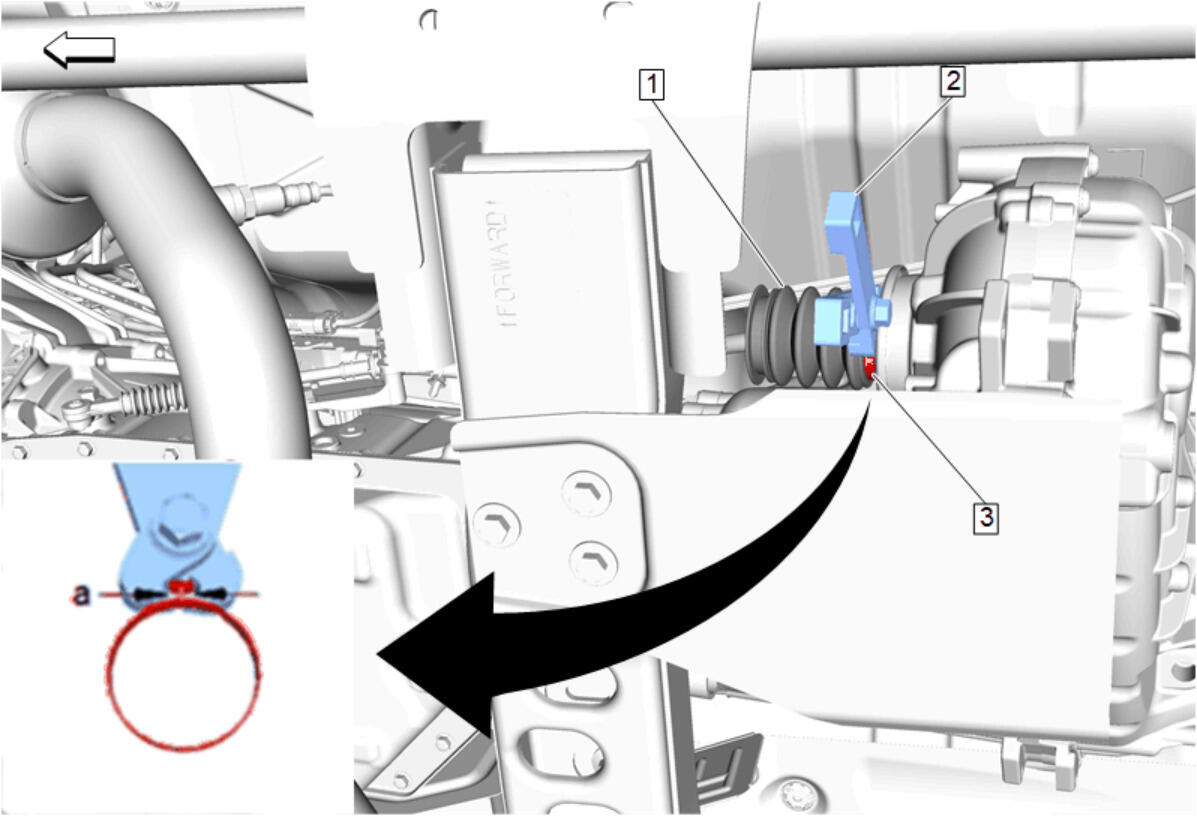

  22. GM5247615Courtesy of GENERAL MOTORS COMPANY

    Ensure the front axle propeller shaft slip yoke boot (1) is fully engaged into the groove of the transfer case output shaft.

  23. Using the DT-35910  Drive Axle Seal Clamp Pliers (2), crimp the front axle propeller shaft slip yoke boot clamp (3) until the gap (a) at the base of the ear is 1.5 mm (0.059 in).

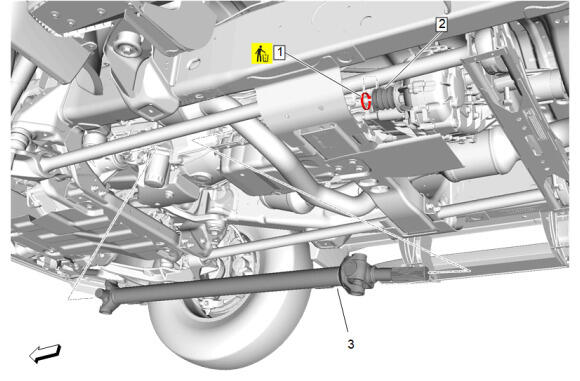

  24. GM5659419Courtesy of GENERAL MOTORS COMPANY

    Apply a thin layer of grease to the front axle propeller shaft (3) splines. Adhesives, Fluids, Lubricants, and Sealers

  25. Loosely install a NEW front axle propeller shaft slip yoke boot clamp (1) to the front axle propeller shaft slip yoke boot (2) groove.
  26. Front Axle Propeller Shaft (3) - Install

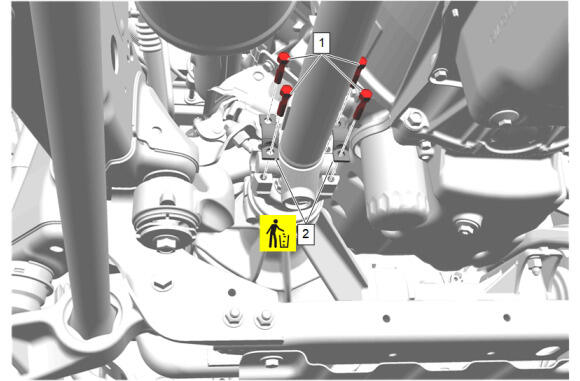

  27. GM5659414Courtesy of GENERAL MOTORS COMPANY

    Align the reference marks made between the front axle propeller shaft and the front axle drive pinion flange.

  28. If NEW threaded components are being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded components are reused, prepare the threaded components using the following steps:
    1. Remove any loose cured adhesive from the external threads of the components using a lint free cloth.
    2. Thread the cleaned components into the internal mating threads and remove to loosen trapped cured adhesive.
    3. Apply thread locking adhesive to the external threads of the components. Adhesives, Fluids, Lubricants, and Sealers
    4. Ensure there are no gaps in the thread locking adhesive once applied to the component.
  29. Front Axle Propeller Shaft Retainer (1) - Install [2x]
  30. Front Axle Propeller Shaft Bolt (2) - Install and tighten [4x] - Fastener Specifications

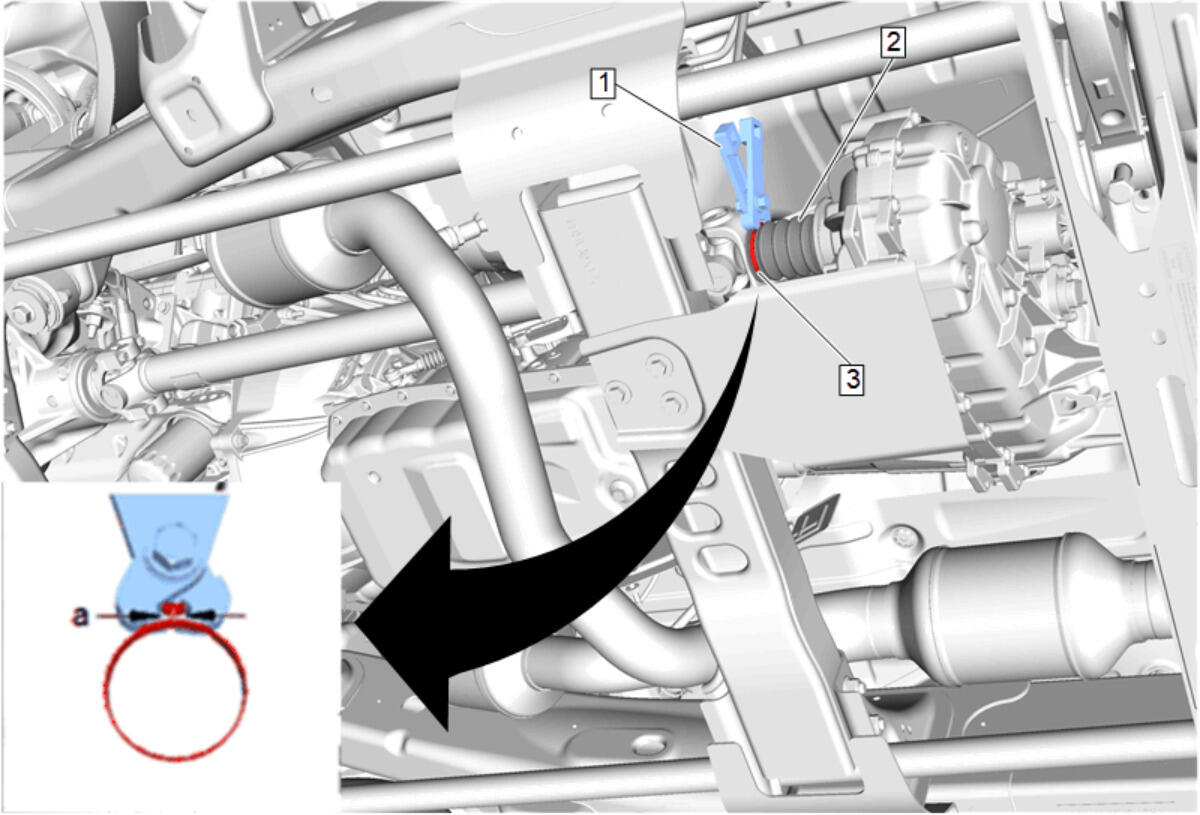

  31. GM5247412Courtesy of GENERAL MOTORS COMPANY

    Ensure the front axle propeller shaft slip yoke boot (2) is fully engaged into the groove of the front axle propeller shaft.

  32. Using the DT-35910  Drive Axle Seal Clamp Pliers (1), crimp the front axle propeller shaft slip yoke boot clamp (3) until the gap (a) at the base of the ear is 1.5 mm (0.059 in).

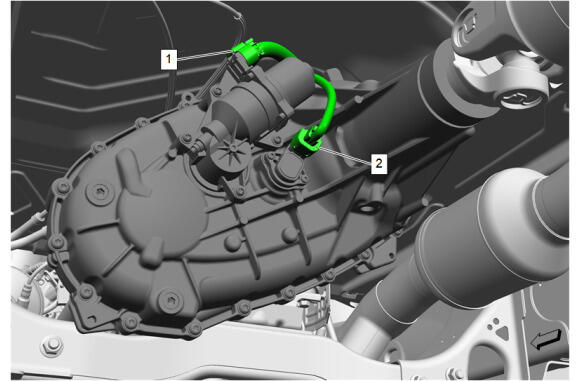

  33. GM5637173Courtesy of GENERAL MOTORS COMPANY

    Connect the transfer case two/four wheel drive actuator position sensor electrical connector (2).

  34. Connect the transfer case two/four wheel drive actuator electrical connector (1).
  35. Connect any wiring harness retainers to the transfer case.
  36. GM5586901Courtesy of GENERAL MOTORS COMPANY

    Fill the transfer case to the bottom of the fill plug hole with the recommended fluid. Transfer Case Fluid Replacement

  37. Install the negative battery cable to the battery. Battery Negative Cable Disconnection and Connection (without K4B)Battery Negative Cable Disconnection and Connection (with K4B)
  38. After replacing the transfer case, perform the transfer case control module programming and setup. K69 Transfer Case Control Module: Programming and Setup (NQF)K69 Transfer Case Control Module: Programming and Setup (NQH)
  39. Start the vehicle and shift the transfer case through all modes and ranges to verify correct operation.
