Removal Procedure

WARNING: This page is about a different car, the 2023 GMC Sierra 3500 HD and 2023 GMC Sierra 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Lifting and Jacking the Vehicle
  2. GM5044168Courtesy of GENERAL MOTORS COMPANY

    Mark the relationship of the propeller shaft (2) to the rear wheel drive shaft flange.

  3. Rear Propeller Shaft Bolt (1) - Remove [4x]
  4. GM5044196Courtesy of GENERAL MOTORS COMPANY

    Propeller Shaft (1) - Remove

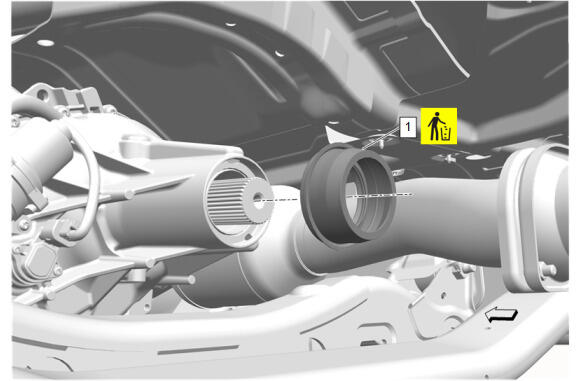

  5. GM5810429Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Transfer Case Seal Removal Caution .

    Transfer Case Rear Output Shaft Seal (1) - Remove and DISCARD
