Installation Procedure
WARNING: This page is about a different car, the 2023 GMC Sierra 3500 HD and 2023 GMC Sierra 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

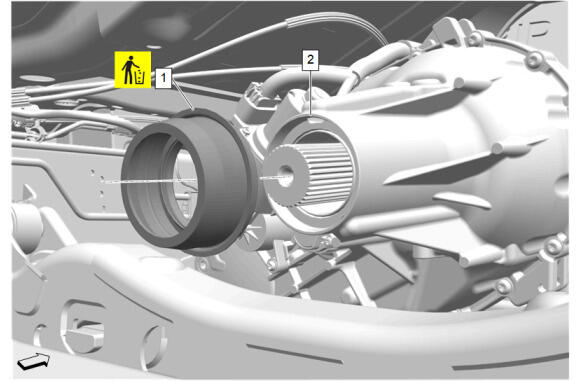

Align the notch (1) on the top of the seal between the rear output bearing retaining ring access holes (2) to position the weep hole down.

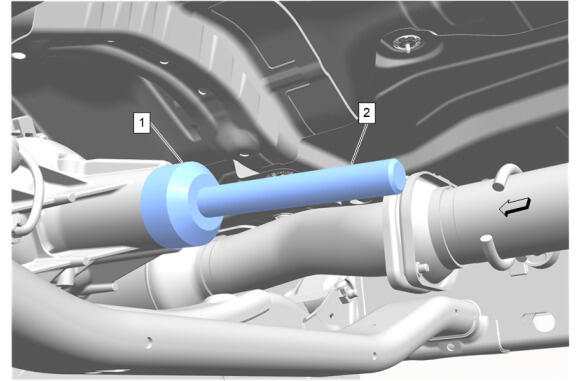

Using DT-48021 Seal Installer (1) and J-8092 Driver Handle (2), install the NEW transfer case rear output shaft seal.
Propeller Shaft (1) - Install
Align the reference marks made between the rear wheel drive shaft flange and the propeller shaft (2).
- If NEW threaded components are being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded components are reused, prepare the threaded components using the following steps:
- Remove any loose cured adhesive from the external threads of the components using a lint free cloth.
- Thread the cleaned components into the internal mating threads and remove to loosen trapped cured adhesive.
- Apply thread locking adhesive to the external threads of the components. Adhesives, Fluids, Lubricants, and Sealers
- Ensure there are no gaps in the thread locking adhesive once applied to the component.
- Rear Propeller Shaft Bolt (1) - Install and tighten [4x] - Fastener Specifications
- Lower the vehicle.
CAUTION:
Refer to Fastener Caution .
