T1 Accessory DC/AC Power Inverter Module X2 (KI4)
WARNING: This page is about a different car, the 2023 GMC Sierra 3500 HD and 2023 GMC Sierra 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

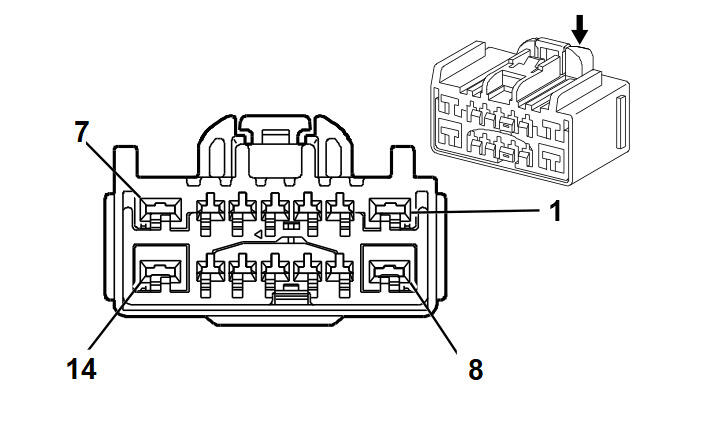

Connector Part Information
- Harness Type: Body Rear Wiring Harness Extension Harness
- OEM Connector: 33356826
- Service Connector: Service by Harness - See Part Catalog
- Description: 14-Way F 1.5, 2.8 YESC Series (BU)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-2A (GY) |
No Tool Required |
| II |
Not required |
J-35616-4A (PU) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.75 |
BK |
5683 |
120V AC Phase A |
II |
- |
| 2 |
- |
- |
- |
Not Occupied |
- |
- |
| 3 |
0.35 |
VT/YE |
5985 |
Accessory Wake-Up Serial Data |
I |
- |
| 4 |
0.35 |
WH/GN |
4628 |
DC/AC Inverter Relay Control |
I |
- |
| 5 |
0.35 |
BU/BN |
6807 |
DC/AC Inverter Control |
I |
- |
| 6 |
- |
- |
- |
Not Occupied |
- |
- |
| 7 |
0.75 |
BK/WH |
2264 |
120V AC Phase A 2 |
II |
- |
| 8 |
0.75 |
RD |
5684 |
120V AC Phase B |
II |
- |
| 9 |
0.35 |
BARE |
514 |
Low Reference |
I |
- |
| 10 |
0.35 |
GN |
5060 |
Low Speed GMLAN Serial Data |
I |
- |
| 11 |
- |
- |
- |
Not Occupied |
- |
- |
| 12 |
0.75 |
GN/BN |
2266 |
DC/AC Inverter Control 2 |
I |
- |
| 13 |
0.35 |
BARE |
2257 |
Low Reference |
I |
- |
| 14 |
0.75 |
RD/WH |
2265 |
120V AC Phase B 2 |
II |
- |
