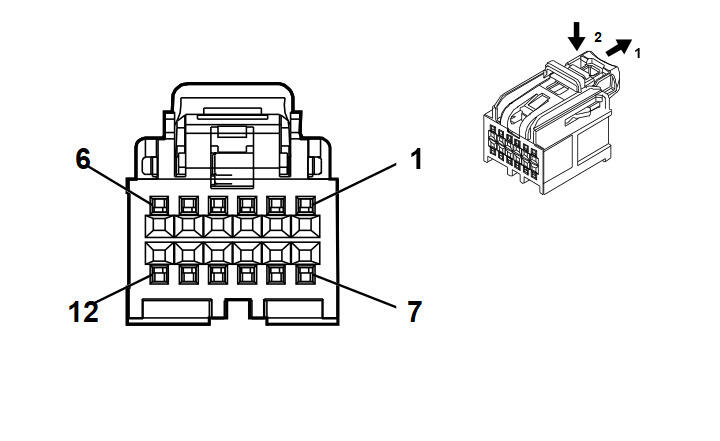

S171R Instrument Panel Center Accessory Function Switch - Right
WARNING: This page is about a different car, the 2023 GMC Sierra 3500 HD and 2023 GMC Sierra 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
Connector Part Information
|
Terminal Part Information
| Terminal Type ID | Terminated Lead | Diagnostic Test Probe | Terminal Removal Tool |
|---|---|---|---|
| I | 19300660 | J-35616-64B (L-BU) | J-38125-215A |
| II | Not required | No Tool Required | No Tool Required |
| Pin | Size | Color | Circuit | Function | Terminal Type ID | Option |
|---|---|---|---|---|---|---|
| 1 | - 0.35 |
BU/YE GY/WH |
7176 4630 |
All Windows Open Switch Signal AC Power Outlet Switch Signal |
II I |
- - |
| 2 | 0.35 | YE | 6817 | LED Backlight Dimming Control 1 | I | - |
| 3 | - 0.35 |
BU/YE BU/YE |
7176 6844 |
All Windows Open Switch Signal ABS/Traction Control Hill Descent Control Switch Signal |
II I |
- - |
| 4 | 0.35 | VT/BK | 1639 | Run/Crank Ignition 1 Voltage | I | - |
| 5 | 0.35 | BN/GN | 4311 | Power Take-Off Enable Cabin Switch Normally Closed Signal | I | - |
| 6 | - | - | - | Not Occupied | - | - |
| 7 | 0.35 | GN/WH | 488 | Power Take-Off Control Switch Signal | I | - |
| 8 | 0.35 | BN/WH | 7462 | Running Board Steps Disable Signal | I | - |
| 9 | 0.5 | BK | 1050 | Ground | I | - |
| 10 | 0.35 | WH | 6816 | Indicator Dimming Control | I | - |
| 11 | 0.35 | YE | 7755 | AC Power Outlet Status Indicator Control | I | - |
| 12 | 0.35 | BU/GY | 553 | Shift Select Switch Performance Signal | I | - |
