M69 Sunroof Motor (CF5)
WARNING: This page is about a different car, the 2023 GMC Sierra 3500 HD and 2023 GMC Sierra 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

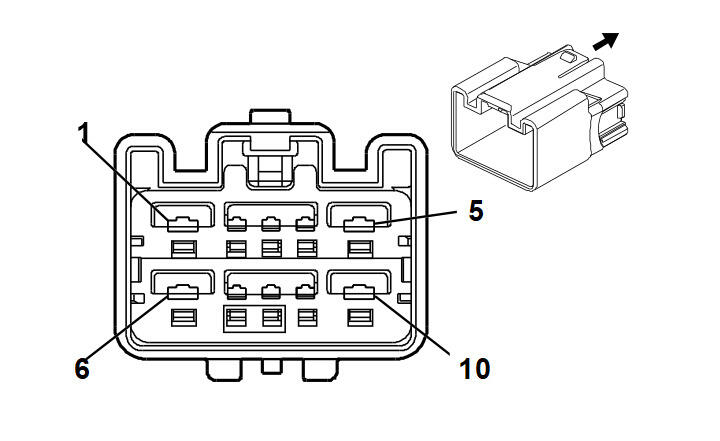

Connector Part Information
- Harness Type: Dome Lamp Wiring Harness
- OEM Connector: 13506926
- Service Connector: Service by Harness - See Part Catalog
- Description: 10-Way M 1.5, 2.8 Kaizen Series (L-GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-3 (GY) |
No Tool Required |
| II |
Not required |
J-35616-5 (PU) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 - 2 |
- |
- |
- |
Not Occupied |
- |
- |
| 3 |
0.35 |
BK/GY |
128 |
Sunroof Switch Low Reference |
I |
- |
| 4 |
0.35 |
GN/BN |
6132 |
Body Control Module LIN Bus 1 |
I |
- |
| 5 |
2.5 |
BK |
1050 |
Ground |
II |
- |
| 6 |
2.5 |
RD/GN |
3140 |
Battery Positive Voltage |
II |
- |
| 7 |
0.35 |
BU/VT |
5027 |
Sunroof Switch Serial Data 1 Signal |
I |
- |
| 8 |
- |
- |
- |
Not Occupied |
- |
- |
| 9 |
0.35 |
WH/GN |
3031 |
Sunroof Vent Switch Signal |
I |
- |
| 10 |
- |
- |
- |
Not Occupied |
- |
- |
