K44 Power Take-Off Control Module X2 (PTO)
WARNING: This page is about a different car, the 2023 GMC Sierra 3500 HD and 2023 GMC Sierra 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

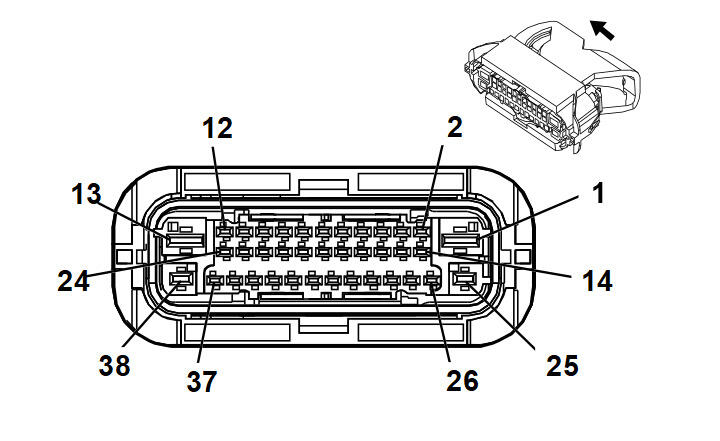

Connector Part Information
- Harness Type:Engine Wiring Harness
- OEM Connector: 35497871
- Service Connector: 86825459
- Description: 38-Way F 1.5, 2.8, 4.8 MCP Series, Sealed (BK with BN Inner Connector)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
19369235 |
J-35616-14 (GN) |
EL-38125-560A |
| II |
85158596 |
J-35616-40 (BU) |
EL-38125-560A |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 - 7 |
- |
- |
- |
Not Occupied |
- |
- |
| 8 |
0.5 |
WH/BK |
8238 |
Power Take Off Upfitter Interlock Switch Signal 2 |
I |
- |
| 9 |
0.5 |
GN/WH |
8236 |
Power Take Off Solenoid Control Low |
I |
- |
| 10 |
0.5 |
GN/WH |
8236 |
Power Take Off Solenoid Control Low |
I |
- |
| 11 - 12 |
- |
- |
- |
Not Occupied |
- |
- |
| 13 |
0.5 |
BU/WH |
8235 |
Power Take Off Solenoid Control High |
II |
- |
| 14 - 16 |
- |
- |
- |
Not Occupied |
- |
- |
| 17 |
0.5 |
BN/WH |
8234 |
Power Take Off Pressure Sensor Signal |
I |
- |
| 18 |
0.5 |
YE |
8233 |
Power Take Off Pressure Sensor Low Reference |
I |
- |
| 19 |
0.5 |
WH |
8232 |
Power Take Off Pressure Sensor 5 Volt Reference |
I |
- |
| 20 - 27 |
- |
- |
- |
Not Occupied |
- |
- |
| 28 |
0.5 |
WH/GN |
6142 |
Power Take-Off Engine Shutdown Signal |
I |
- |
| 29 - 34 |
- |
- |
- |
Not Occupied |
- |
- |
| 35 |
0.5 |
VT/GN |
4308 |
Power Take-Off Remote Throttle Signal |
I |
- |
| 36 |
0.75 |
BU/BN |
4408 |
Power Take-Off Enable Signal |
I |
- |
| 37 - 38 |
- |
- |
- |
Not Occupied |
- |
- |
