K36 Inflatable Restraint Sensing and Diagnostic Module X2

WARNING: This page is about a different car, the 2023 GMC Sierra 3500 HD and 2023 GMC Sierra 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

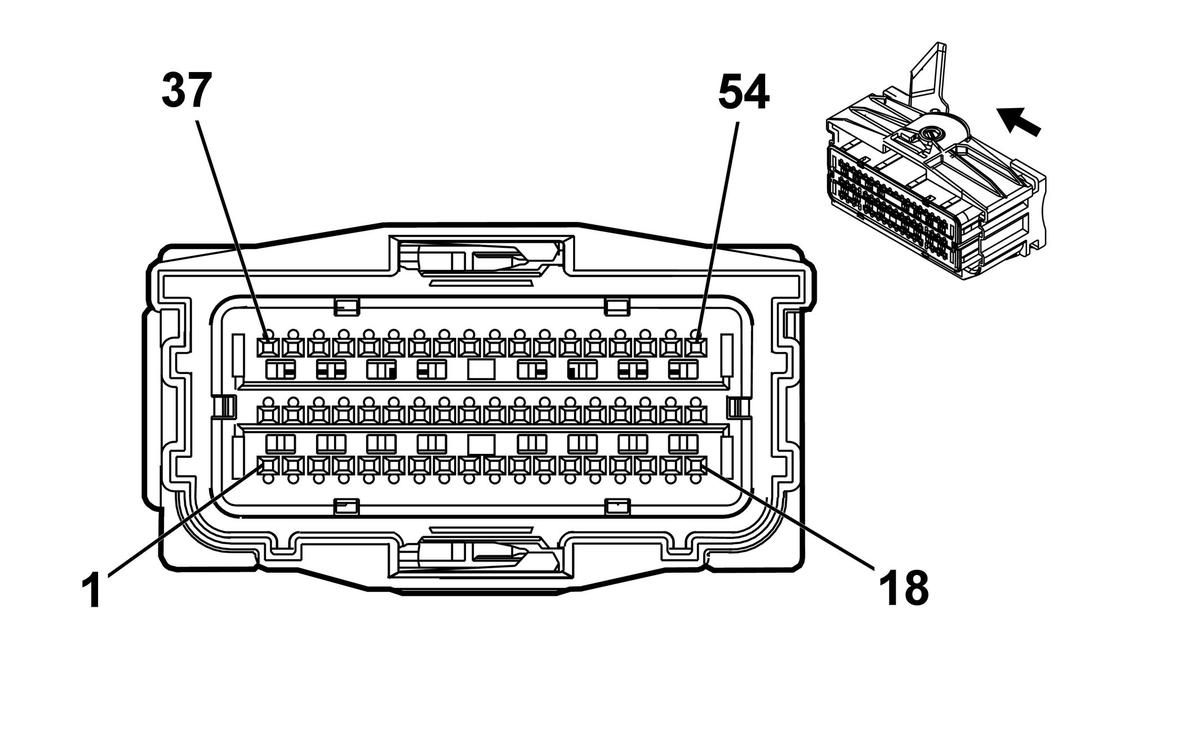

GM5197939Courtesy of GENERAL MOTORS COMPANY
Connector Part Information
  • Harness Type: Body Wiring Harness
  • OEM Connector: 35036051
  • Service Connector: 84769282
  • Description: 54-Way F 0.64 Series, Sealed (YE)
Terminal Part Information

Terminal Type ID Terminated Lead Diagnostic Test Probe Terminal Removal Tool
I 19328872 J-35616-64B (L-BU) J-38125-11A
I 19328872 J-35616-64B (L-BU) J-38125-11A
Pin Size Color Circuit Function Terminal Type ID Option
1 - 8 - - - Not Occupied - -
9 0.5 OG/YE 3481 Driver Seat Belt Anchor Pretensioner High Control I -
10 0.5 YE/OG 3482 Driver Seat Belt Anchor Pretensioner Low Control I -
11 0.5 GY/OG 3480 Passenger Seat Belt Anchor Pretensioner Low Control I -
12 0.5 OG/BN 3479 Passenger Seat Belt Anchor Pretensioner High Control I -
13 0.5 OG/BU 3068 Driver Seat Side Air Bag High Control I -
14 0.5 GN/OG 3069 Driver Seat Side Air Bag Low Control I -
15 0.35 BN/OG 3067 Passenger Seat Side Air Bag Low Control I -
16 0.35 OG/GY 3066 Passenger Seat Side Air Bag High Control I -
17 0.5 OG/GN 5019 Left Front Roof Rail Air Bag High Control I -
18 0.5 VT/OG 5020 Left Front Roof Rail Air Bag Low Control I -
19 0.35 OG/GN 2132 Left Front Side Impact Sensor Signal I -
20 0.35 BK/OG 6628 Left Front Side Impact Sensor Low Reference I -
21 0.35 BK/OG 6629 Right Front Side Impact Sensor Low Reference I -
22 0.35 BN/OG 2134 Right Front Side Impact Sensor Signal I -
23 0.5 OG/YE 354 Left Front Impact Discriminating Sensor Signal I -
24 0.5 BK/OG 5045 Left Front Impact Discriminating Sensor Low Reference I -
25 0.5 BK/OG 5600 Right Front Impact Discriminating Sensor Low Reference I -
26 0.5 OG/GN 1409 Right Front Impact Discriminating Sensor Signal I -
27 0.35 OG/BU 6622 Left Rear Side Impact Sensor Signal I -
28 0.35 BK/OG 6623 Left Rear Side Impact Sensor Low Reference I -
29 0.35 BK/OG 6627 Right Rear Side Impact Sensor Low Reference I -
30 0.35 OG/WH 6626 Right Rear Side Impact Sensor Signal I -
31 - 36 - - - Not Occupied - -
37 0.5 OG/WH 3477 Driver Seat Belt Retractor Pretensioner High Control I -
38 0.5 GY/OG 3478 Driver Seat Belt Retractor Pretensioner Low Control I -
39 0.5 WH/OG 3476 Passenger Seat Belt Retractor Pretensioner Low Control I -
40 0.5 OG/GN 3475 Passenger Seat Belt Retractor Pretensioner High Control I -
41 0.35 OG/BN 238 Driver Seat Belt Switch Signal I -
42 - OG/GN 5055 Driver Seat Position Switch Signal I -
43 0.35 BK/OG 1363 Driver Seat Belt Switch Low Reference I -
44 0.35 BK/OG 1361 Passenger Seat Belt Switch Low Reference I -
45 0.35 OG/VT 1362 Passenger Seat Belt Switch Signal I -
46 - 52 - - - Not Occupied - -
53 0.5 OG/GY 5021 Right Front Roof Rail Air Bag High Control I -
54 0.5 WH/OG 5022 Right Front Roof Rail Air Bag Low Control I -
